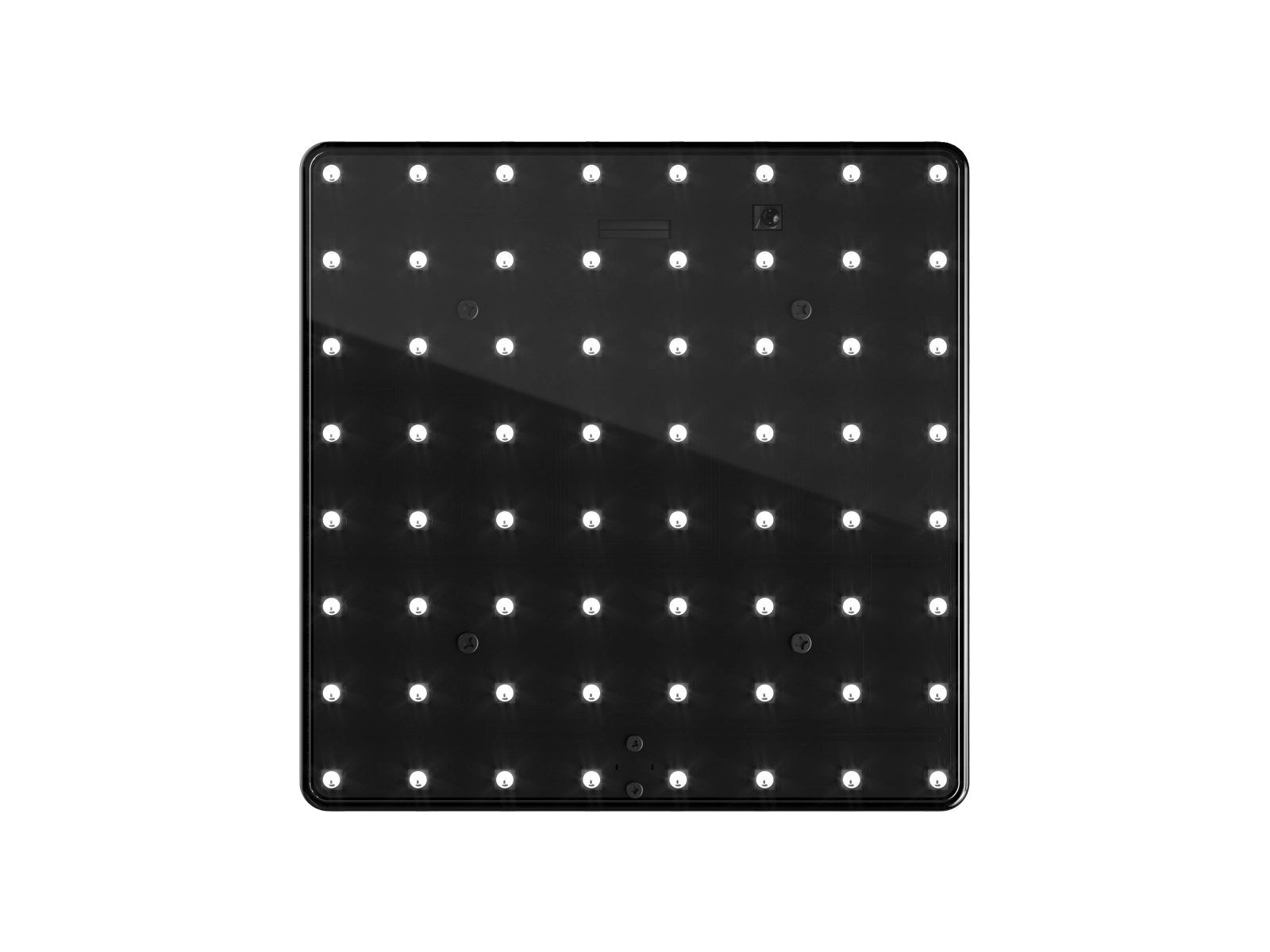

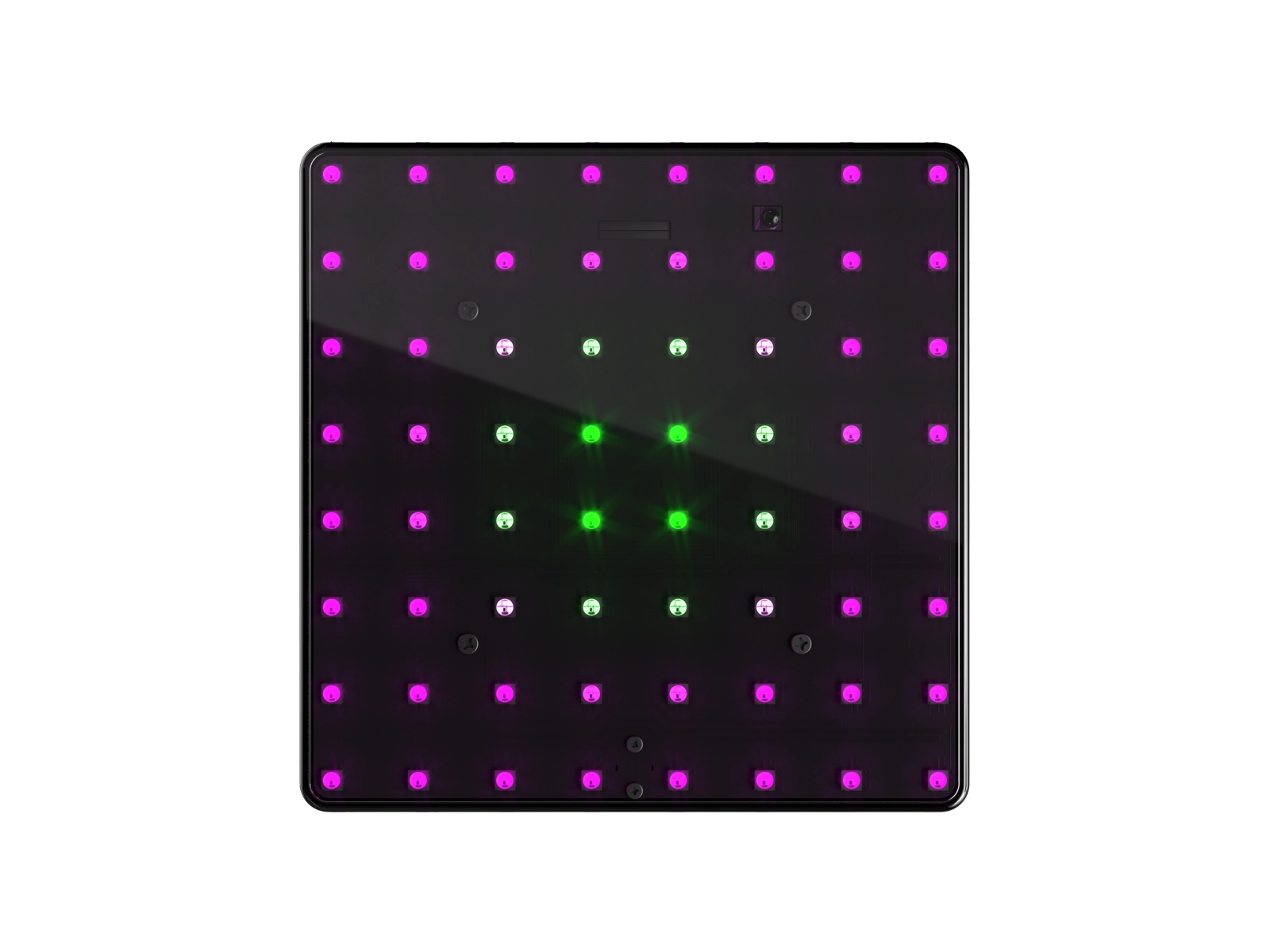

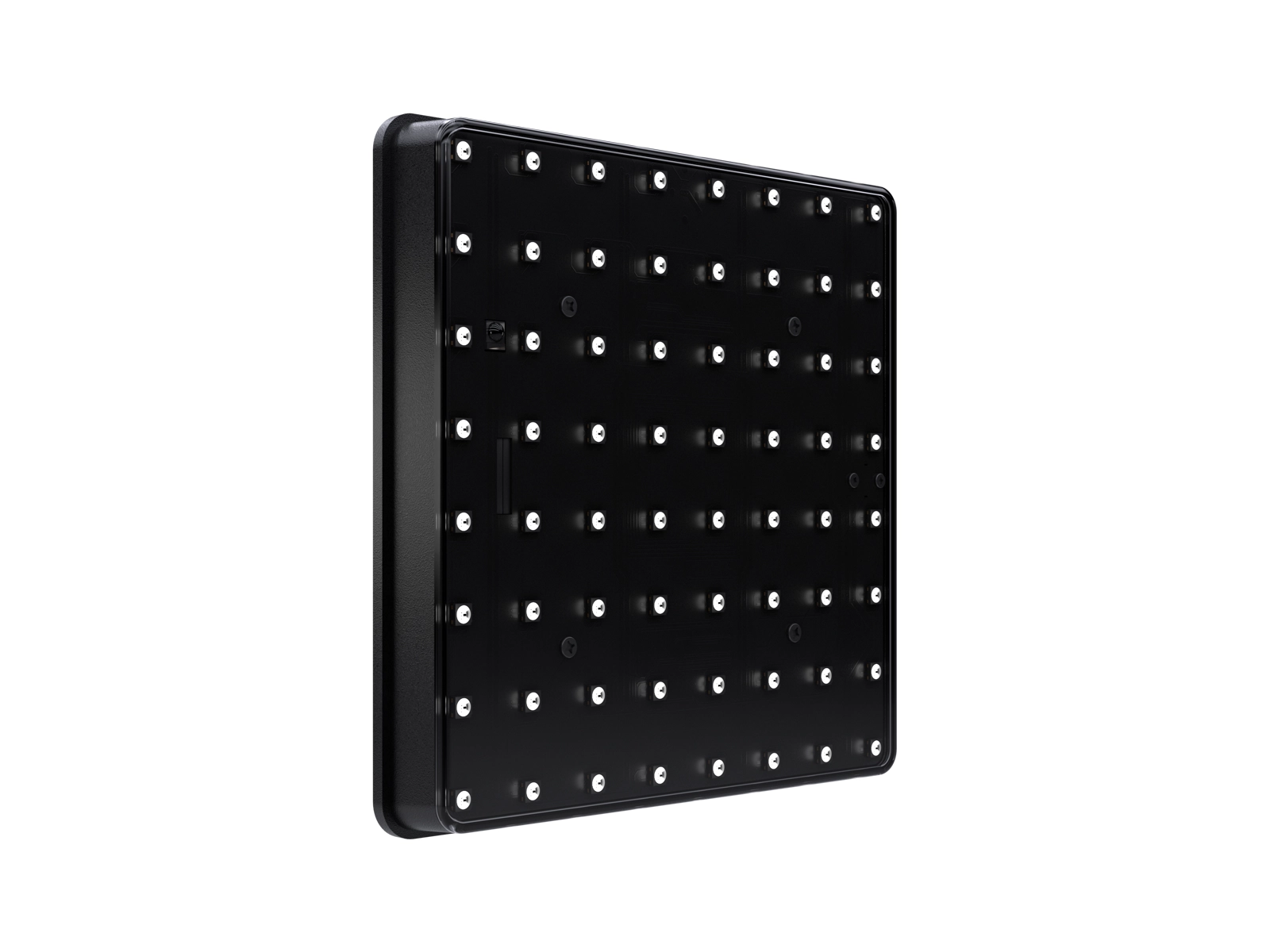

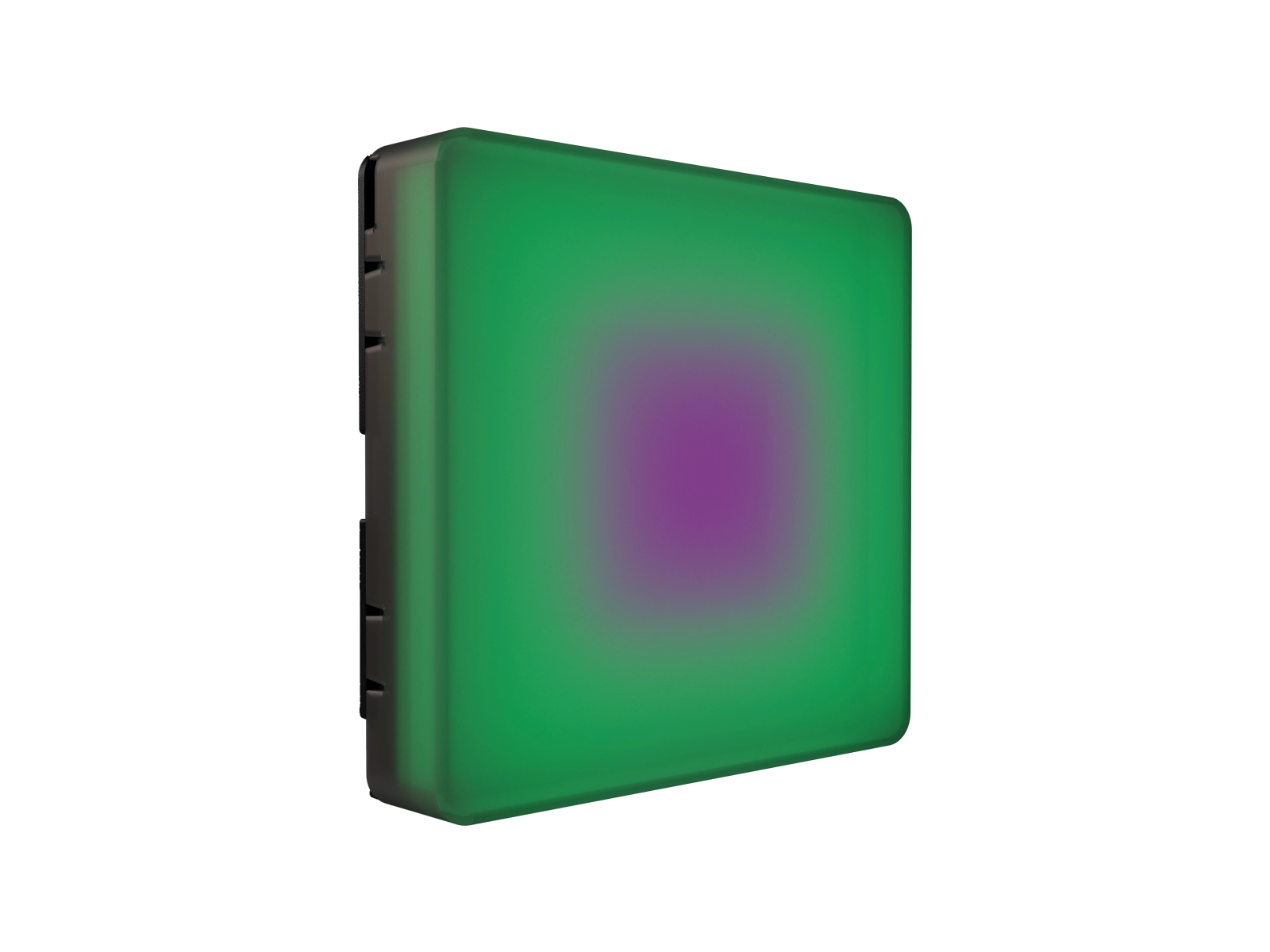

Nexus Square
Presenting the Nexus Square – a wireless, battery-powered RGBWW LED panel 16.7 x 16.7 cm, designed for DJs, professional users, bars, weddings, and events. Equipped with 64 RGBWW pixels, the Nexus Square enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

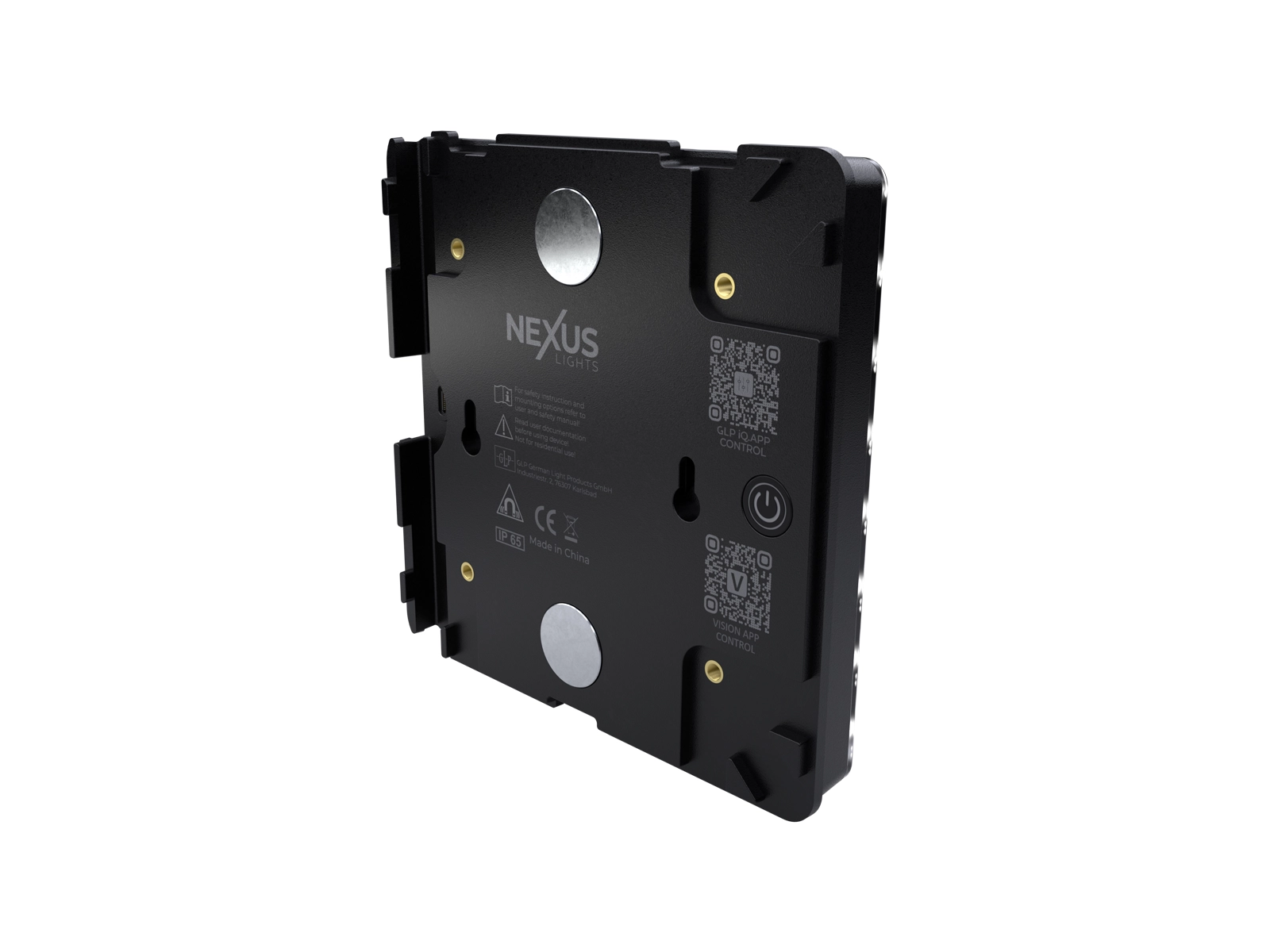

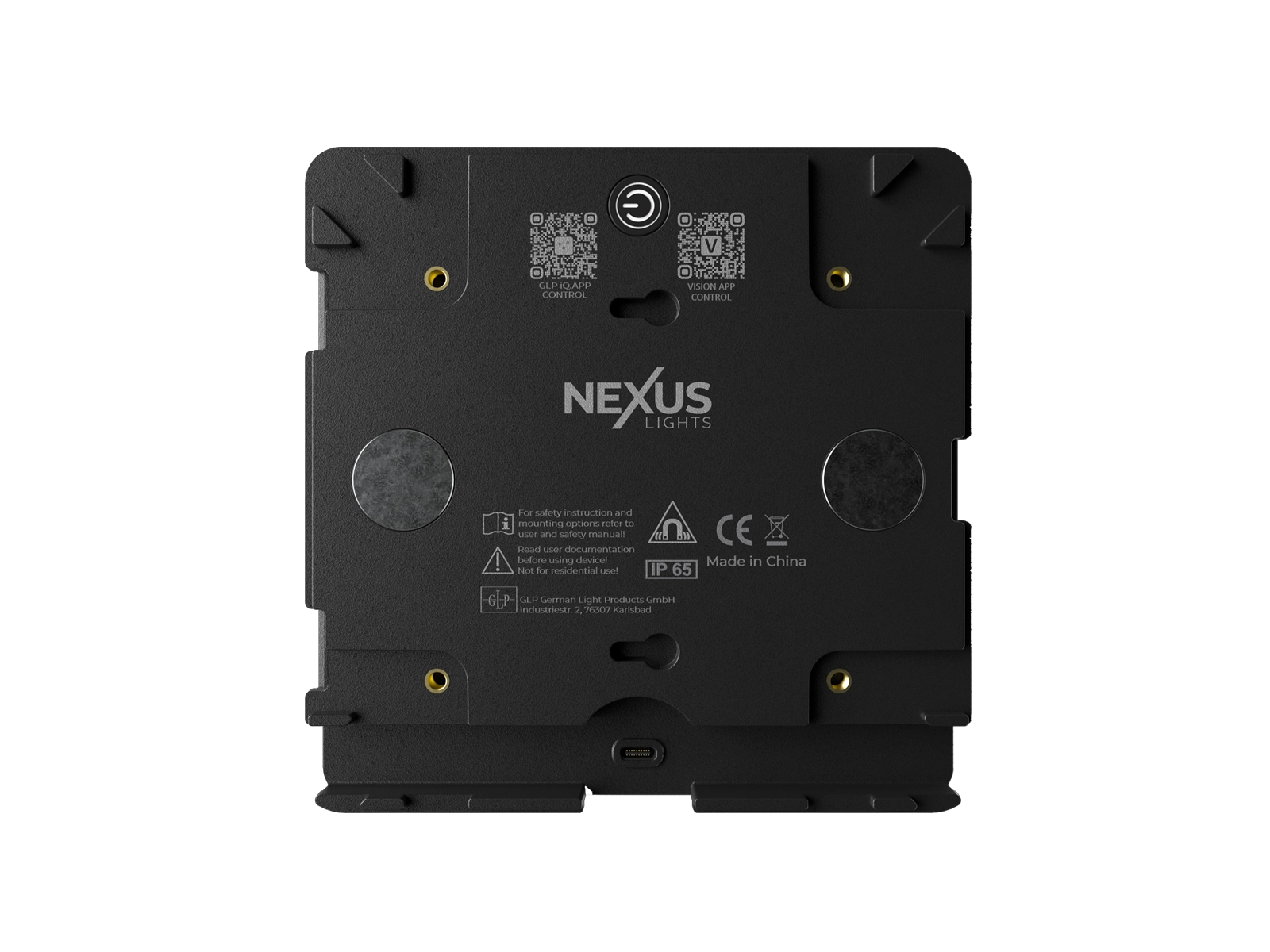

The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. With the expansion of the Nexus Bridge Tx to support DMX transmission, seamless integration into professional lighting networks is also ensured. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.
- Modular Design
- IP65
- App Control
Optical Data
| LED Type | RGBWW |
| LED Count | 64 |
| Light Source Lifetime | 50,000 h |
Control
| Protocols | iQ.Mesh, IR Remote |
Electrical
| Power Draw | 10 W |
| Connections | USB-C |
Construction
| Housing color | black |
| Housing material | plastic |
| Protection rating | IP65 |
| Mounting options | Magnetic Integrated Keyholes Accessory Brackets |
Dimensions & Weight
| Height | with Filter 41.2 mm without Filter 25.2 mm |
| Width | 166.7 mm |
| Depth | 166.7 mm |
| Weight | Fixture Only 0.4 kg with Filter 0.52 kg |
