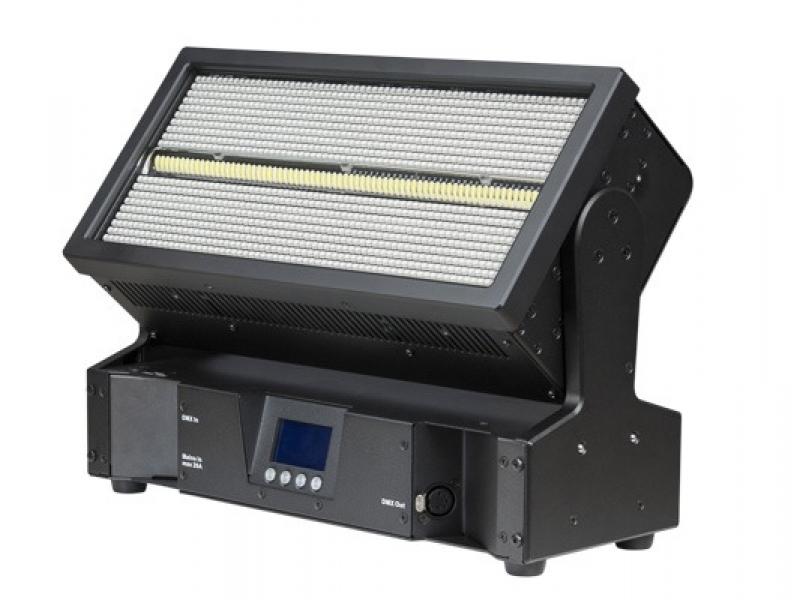

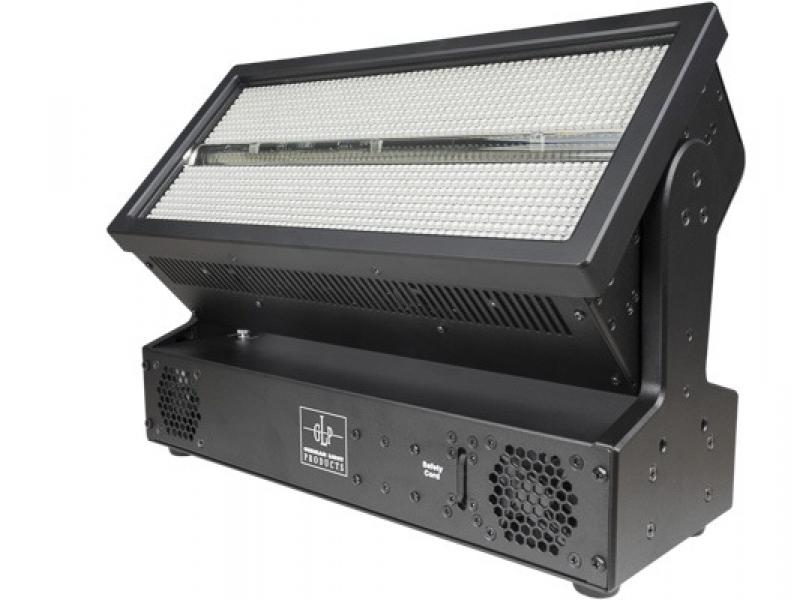

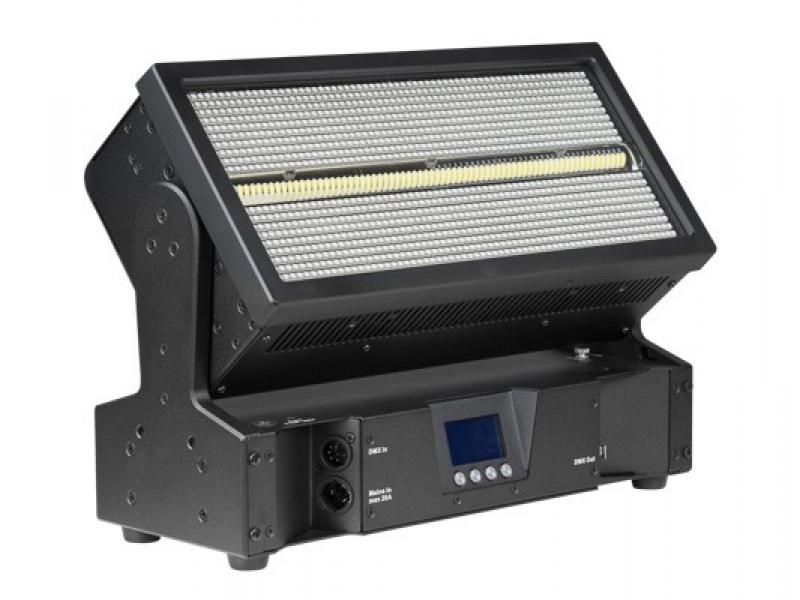

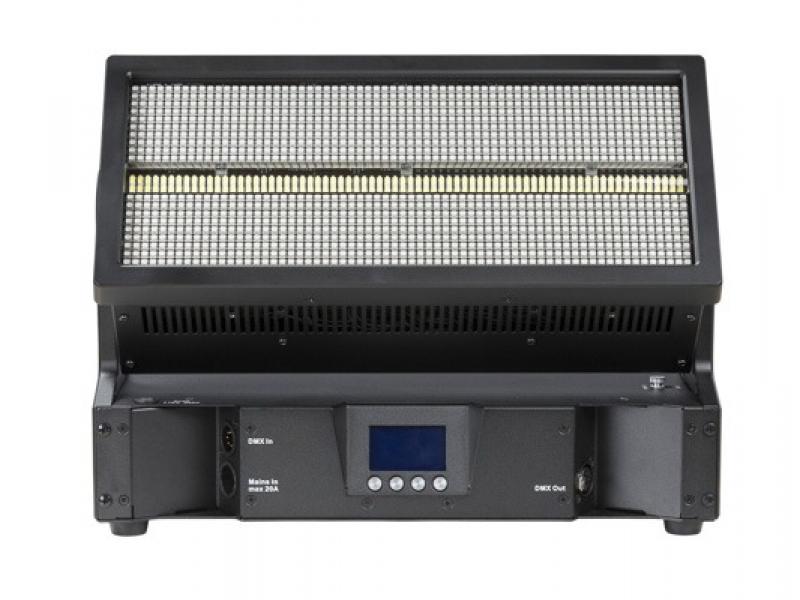

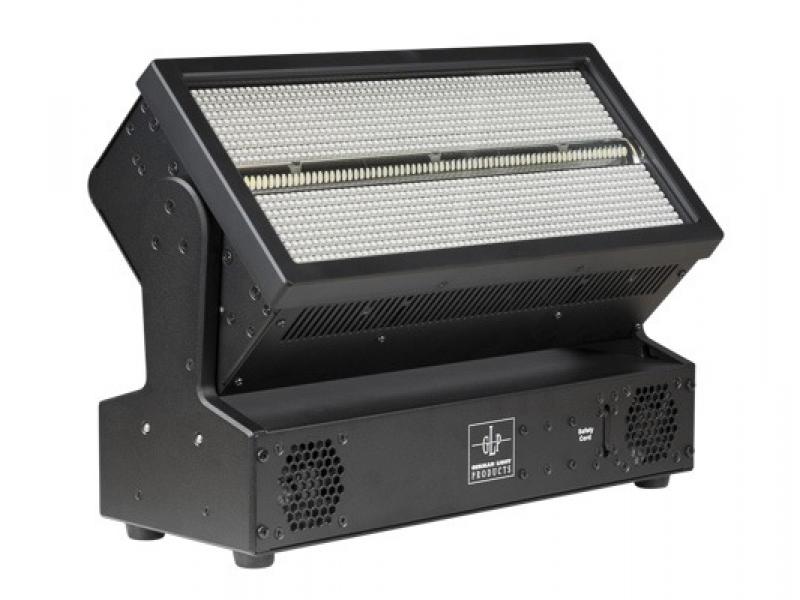

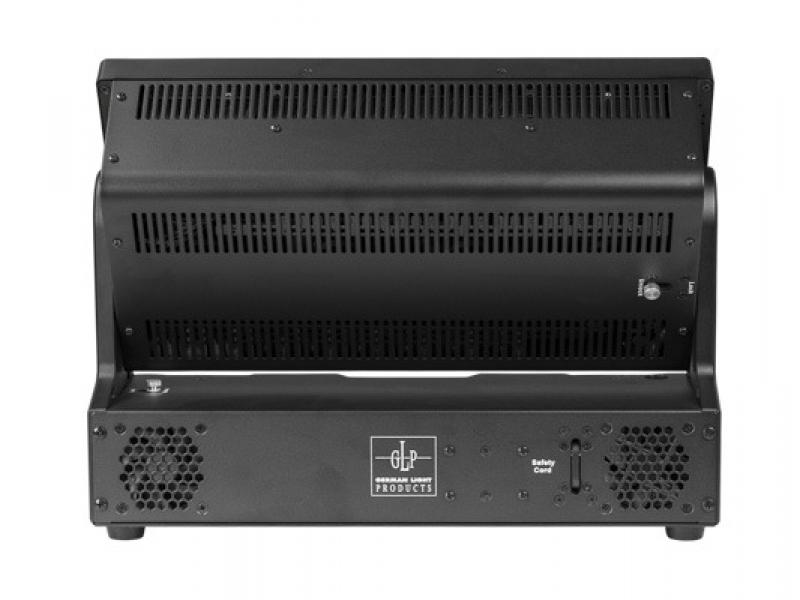

JDC1

When you look for a strobe, you look for power and the JDC1 from GLP delivers power in excess through a versatile and highly creative design, the likes of which has never been seen before.

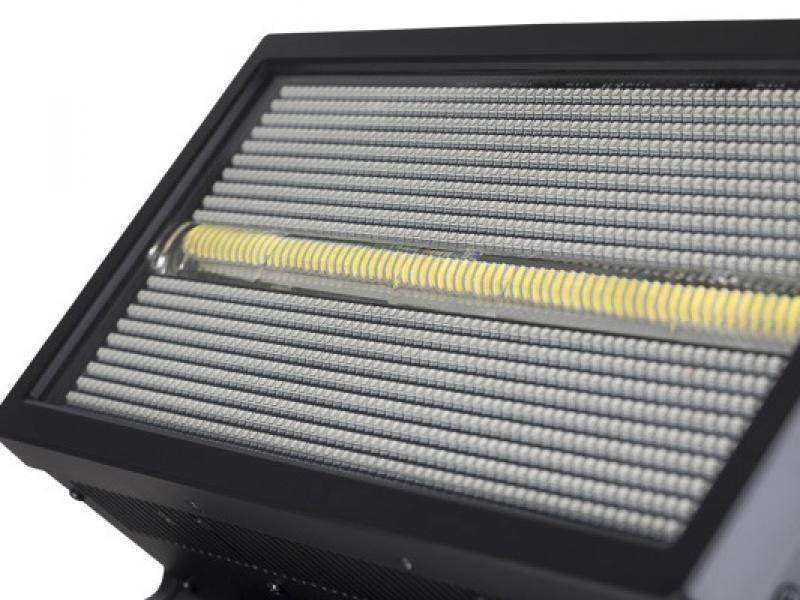

The JDC1 contains a traditional single tube element with an incredible clear, bright white output and combines that with a surrounding full face of RGB LED power, utilizing 1.320 high quality LED’s. The possibilities are endless as these two elements have independent control and can be used as separate pieces, or combined for stunning effects.
Along with working as a powerful strobe light, both the tube and the full face sections can be run continuously for high output blinder and wash light effects.

To give even more functionality, the RGB face can be divided into 12 separate ‘plate’ sections, and additionally the bright white tube also can be divided into 12 sections and then the whole array can be fully pixel mapped through any standard controller.

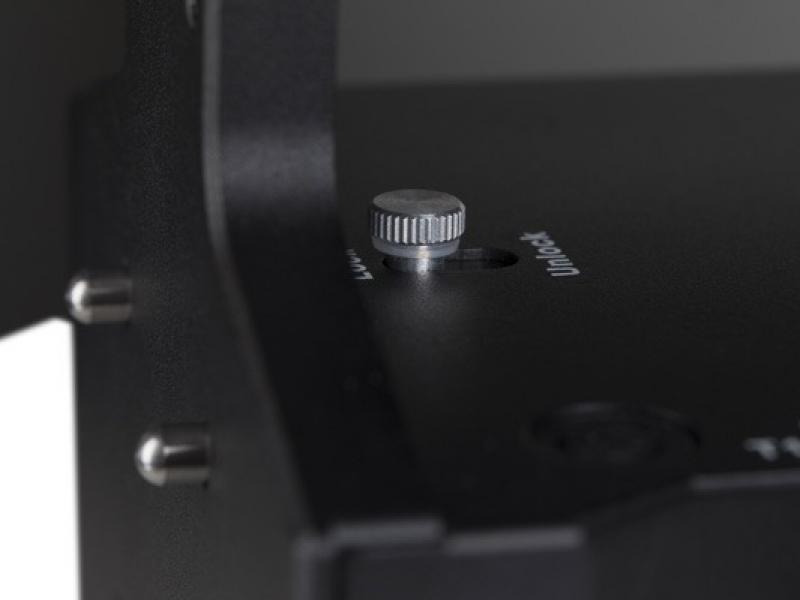

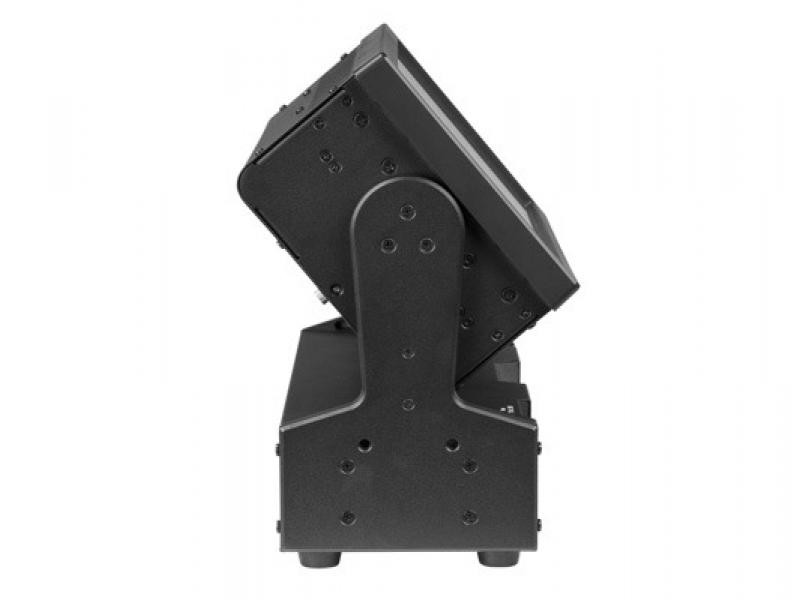

The JDC1 also features dynamic movement with a 16 bit, 185° tilt range, allowing you to place effects exactly where and when you want them to be – and get the most possible power and impact.

The JDC1 is a whole new class of strobe that offers an incomparable feature set that goes way beyond the definition of a hybrid.

The JDC1 is hybrid redefined.

Strobe Panel LEDs
LED Type Osram LRTB GVTG
LED Count 1320
LED Colors RGB
LED Segments 12 (2 x 6)
Strobe Tube LEDs
LED Type CREE XP L LED
LED Count 216
LED Colors Cold-White
LED Segments 12
Movement
Resolution 8 – 16 Bit
Position feedback yes
Tilt (Degrees) 185°
Control
Control Modes Compressed
HighRes
Pixel-Mapping
Protocol DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Display illuminated graphic LCD
self charging buffer battery
RDM bidirectional communication
Cooling temperature controlled
overheating protection
Transceiver RS-485
Receiver Opto-isolated RS-485
Software Update DMX link
Connectors
Signal connection XLR 5-Pin
In/Out
Power input Neutrik powerCON TRUE1
In
Operating Condtions
Mains voltage 100 – 240 VAC / 50 – 60 Hz
Power (Watt @ 230V) 1.200
Fuse 20mm T 8A
Maximum ambient temperature 40°C / 104°F
Operating Position any
EEC B
EEI 0.290
Ec (kWh/1,000h) 946
Power factor > 0.988 / 220 V AC
> 0.999 / 110 V AC
Mounting Options

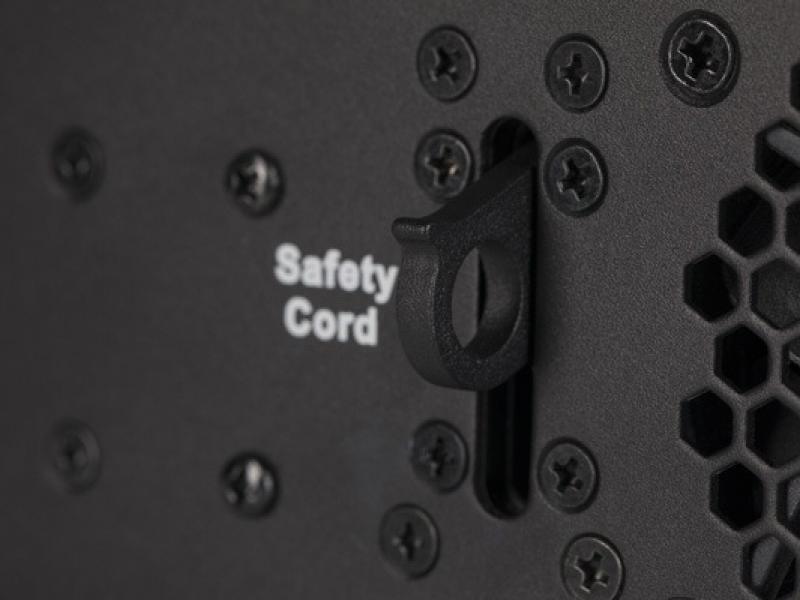

Safety wire attachment foldout eyelets
Standing Rubber feet
Hanging (vertically) Omega-Bracket
Dimensions & Weight
Height (head vertical) 251 mm / 9.8 in
Width (across yoke) 390 mm / 15.3 in
Length 150 mm / 5.9 in
Weight 11.6 kg / 25.6 lbs
