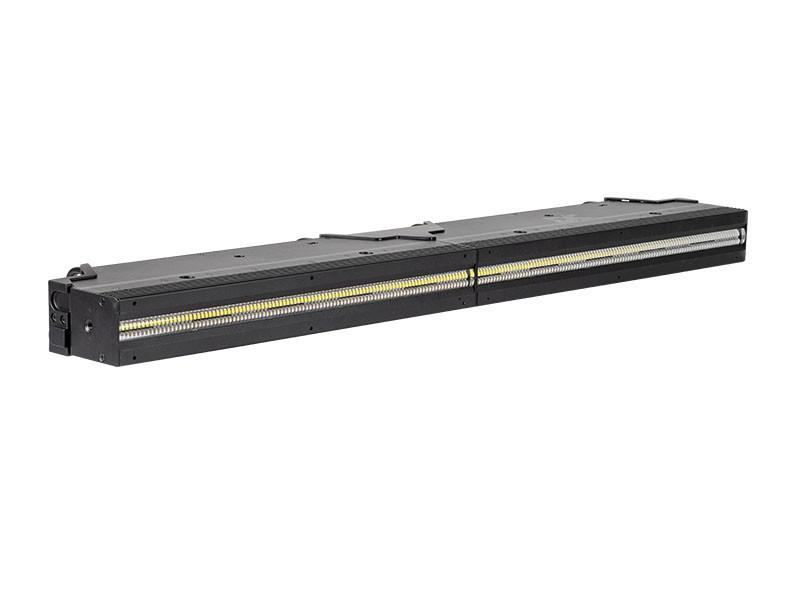

JDC Line 1000
The JDC Line is the new Hybrid highlight Product from GLP and combines a powerful strobe line with a never seen powerful LED pixel mapping device. There are a lot of Pixel-Mapping/Video-Sticks in the market but they all just offer the brightness of a typical video stick and the pixelpitch always has black areas between the pixel segments. The JDC Line is completely different and offers a much brighter RGB Pixel mapping effect mixed by a special 500 mm lens tube which gives great look and new design options.

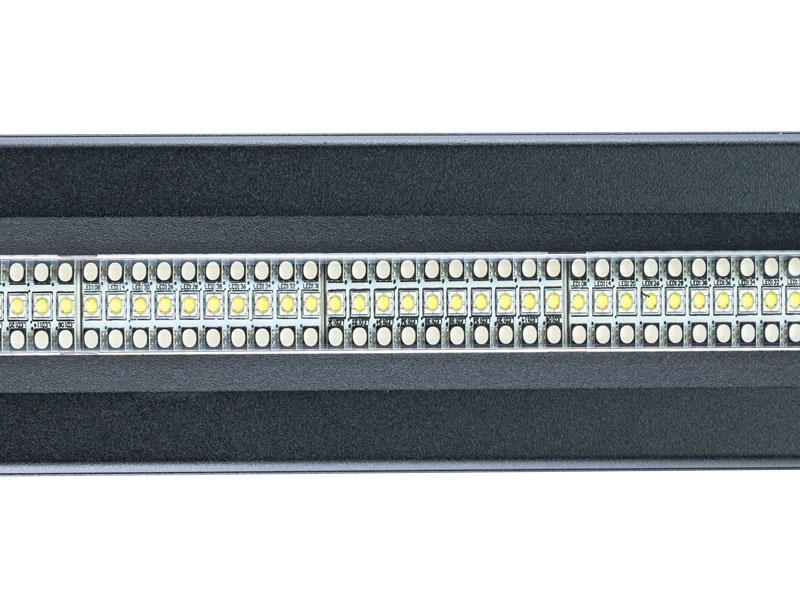

The pixel sements of the JDC Line measures The pixel sements of the JDC Line measures 25 mm in width. The segments are seemless next to each other, so that there are no blackout areas between the pixels. A super highlight feature: Each pixel segment can be split into upper and lower part which gives additional creative options. The second part of the fixture is a powerful strobe tube, well known from the JDC center beam LEDs. The JDC Strobe LEDs emit into the same lens tube as the RGB Pixel Mapping LEDs and also offer a segmentation of 25 mm for stunning dynamic effects. The idea to emit the powerful strobe and the RGB Pixel mapping output through the same lens tube creates a very nice look and avoids seeing ugly separate LEDs or light reflections from white face LEDs.

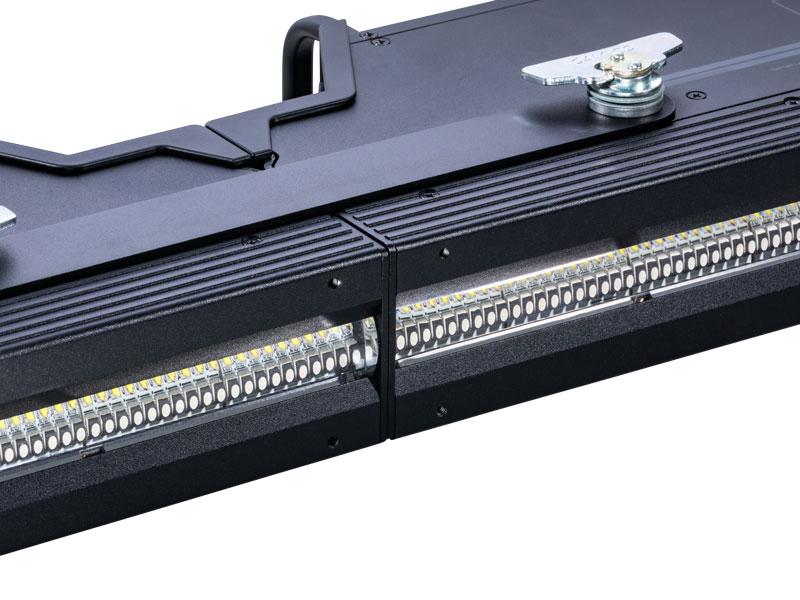

The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. Using the alignment bracket, multiple devices can be easily mechanically connected together while the rigging bracket allows an installation of rigging clamps on the top, button, and back side of the product. A clever airflow design allows the cooling of the fixture also when lying on the ground, installed between objects or on top of each other.
Light Source
Type | White Strobe LED | RGB LED |
Light Source Count | 200x White LED, 400x RGB LED |
Light Source Lifetime | 50,000 h |
CCT | White LED: 6,600 – 7,100 K (depends on dimmer level); RGB LED: 6,500 K (default, changeable) |
CRI (Ra) | 78 (White LED) |
TLCI | 53 (White LED) |
TM-30 Rf | 97 (White LED) |
TM-30 Rg | 71 (White LED) |
Optical System
Output | White LED: 20,400 lm; RGB LED: 42,100 lm |
Beam angle | 150/64° half peak, 160/70° field angle, 160/80° cutoff angle |
Output Lens Diameter | rectangular: 464.15 x 22 mm / 19.45 x 0.87 in |
Control
DMX channels | M1: 16 / M2: 34 / M3: 84 / M4: 47 / M5: 98 / M6: 158 / M7: 38 |
Control Modes | M1: RGBWStrobe / M2: WStrobe, RGBStrobe / M3: WStrobe, RGB Pixel / M4: RGBStrobe, W Pixel / M5: MultiPix / M6: MultiPix Advanced / M7: Multipix Quadpix |
Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN |
Setting and addressing | Multicolor Graphic Display 4 Button Menu Navigation DMX RDM |
Software Update | DMX link via DProg |
High-Res Channels | Intensity |
Dimming Curves | linear soft |
Fan Modes | regulated high medium low |
Others | Splitt Pixel Segments |
Connectors

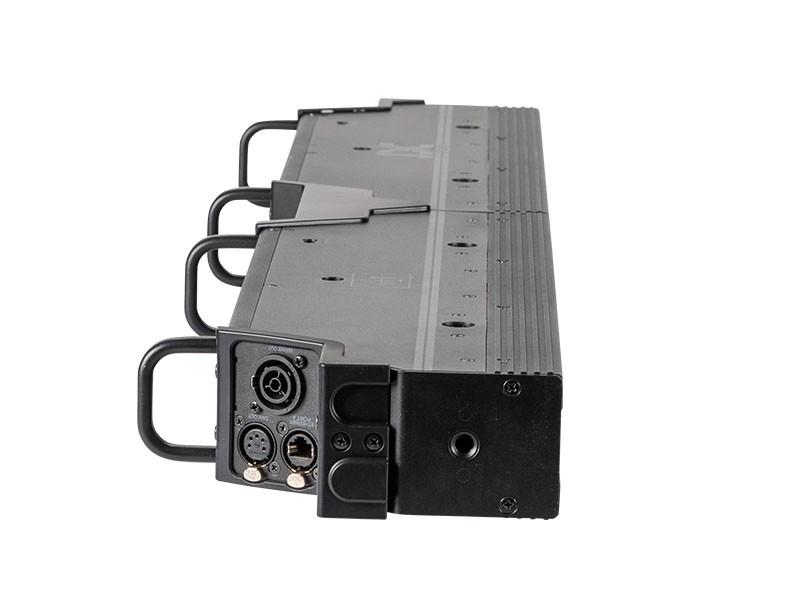

Signal connection | XLR 5-Pin etherCON In/Out |
Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
Power input | 100 – 240 VAC / 50 – 60Hz |
Power supply | auto-ranging electronic switch-mode |
Power supply cable | US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft EU: 16 A, 1.5 mm², H05VV-F, 1.5 m |
Fuse | T12A 250 V 6x32mm |
max. power (@230V) | 800 W |
Power factor | > 0.94 / 230 V AC > 0.98 / 115 V AC |
Thermal Specifications
Cooling | combined convection and forced air |
max. ambient temperature (Ta max.) | 45 °C / 115 °F |
min. ambient temperature (Ta min.) | 5 °C / 40 °F |
Mounting Options
Mounting | 2 pair of 1/4-turn locks 2 eyelets for safety cable |
Orientation | any |
Location | dry |
min. distance to combustible materials | 0.1 m / 3.94 in |
min. distance to illuminated surfaces | 1.0 m / 39.4 in |
Construction
Housing Color | Black |
Housing Material | high-impact flame-retardand thermoplastic Aluminum steel metal platess |
Protection Rating | IP 20 |
Construction Features | integrated handles magnetic front screen Alignment Bracket |
Dimensions & Weight
Height | 74 mm / 2.9 in |
Width | 507 mm / 19.96 in |
Length | 201.5 mm / 7.93 in |
Weight | 6 kg / 13.23 lbs |
