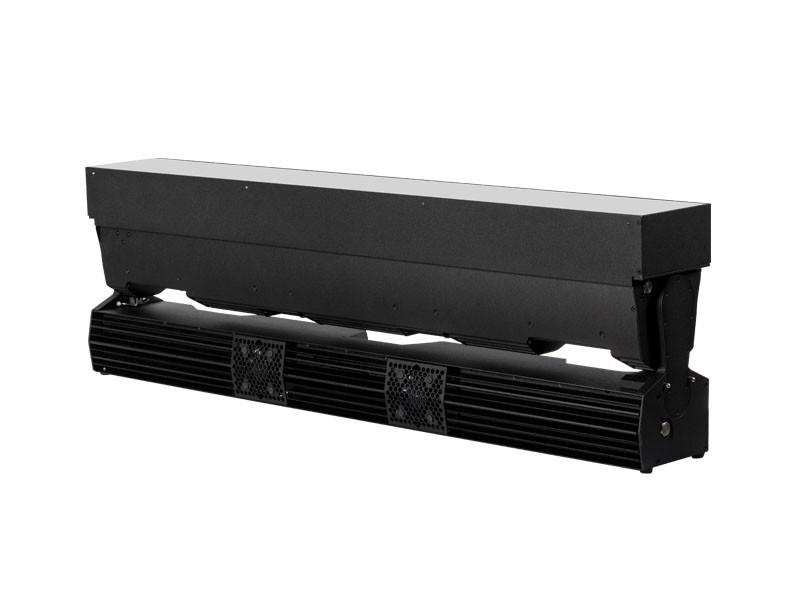

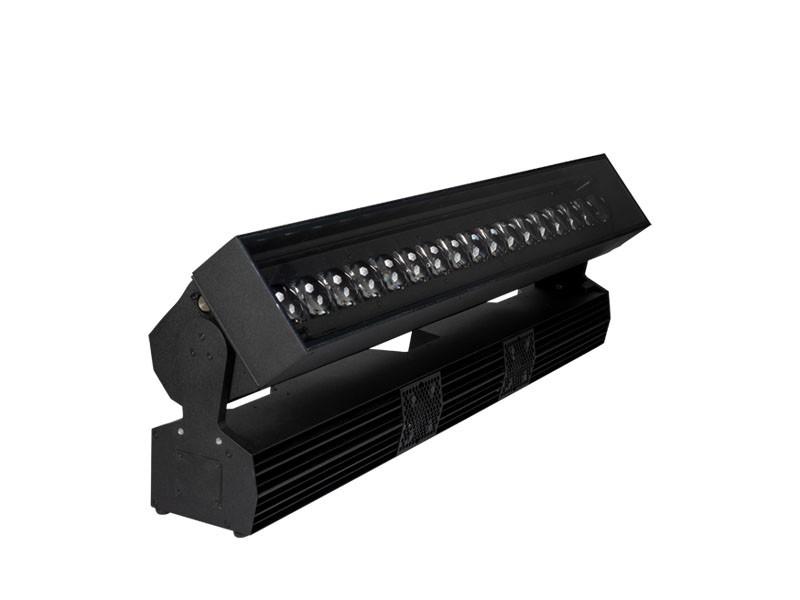

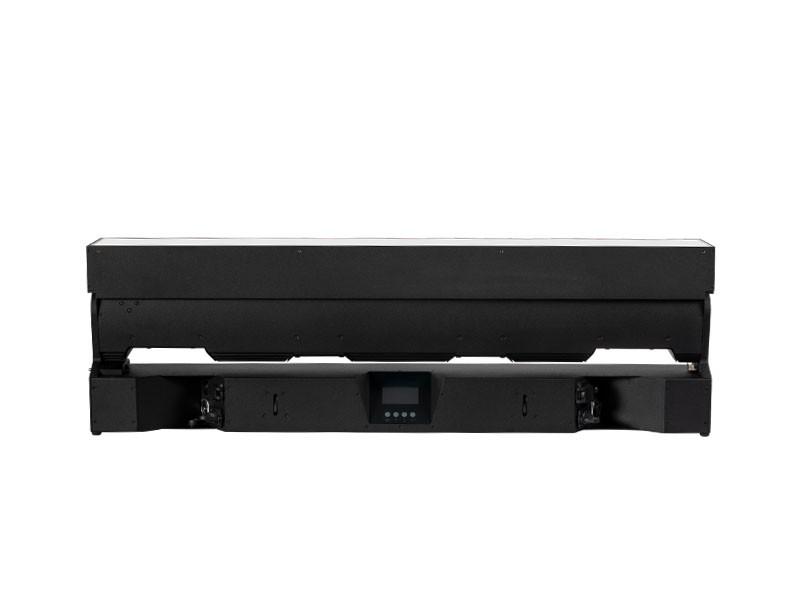

The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.
Product details
impression X5 IP Bar
The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.
Why this product
impression X5 IP Bar
The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.
As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.
The impression X5 IP Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.
The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.
The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.
As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.
The impression X5 IP Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.
The impression X5 IP Bar’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.
Light Source
- Type
- RGBL LED
- Light Source Count
- 18
- Light Source Power
- 18 x 40 W
- Light Source Lifetime
- 50,000 h
- LED Refresh Rate
- Low, Optimal (Default), High 1, High 2, Max
- CCT
- 6,500 K
- Duv
- perfect white point matches with low Duv values
- CRI (Ra)
- 6,500 K: 90 | 3,200 K: 85
- TLCI
- 6,500 K: 90 | 3,200 K: 75
- TM-30-15
- 6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
Optical System
- Output
- up to 7,500 lm
- Min. Zoom
- 4.5°
- Max. Zoom
- 60°
- Zoom Ratio
- 1:13
- Output Lens
- 18 x 48 x 48mm (square)
Effects
- Dimmer
- 0 – 100%; 16 bit
- Shutter
- Strobe, Pulse, Sparkel, etc.
- Color mixing
- RGBRGBLx;y
- Color Mix Priority
- different Layer Priority settings
- CTC (Color Temperature Control)
- 2,500 – 10,000 K
- CQC (Color Quality Control)
- High Output (HO)High Quality (HQ)Desaturation
- Magenta/Green-Shift
- yes
- Tungsten Simulation
- 8 x linked to fix CCT, 8 x relative to Colormix
- Color Wheel
- virtual Color wheel, 64 LEE referenced colors
- Pattern Effects
- 50 dynamic pattern macros with special effects
- Tilt Movement Angle
- 195°, 16 bit
- Zoom speed
- super fast zoom mechanics
Control
- DMX channels
- M1: 20 / M2: 33 / M3: 48 / M4: 84 / M5: 63 / M6: 81
- Control Modes
- 6
- Protocol
- DMX (USITT DMX512-A)RDM (ANSI/ESTA E1.20)Art-NetsACNiQ.Meshoptional: Lumenradio CRMX @ FPO
- Setting and addressing
- control panel with backlit graphic display4 Button Menu NavigationDMXRDMiQ.MeshNFC via iQ.Service App
- Software Update
- DMX linkvia DProginternal WebinterfaceiQ.MeshFixture2Fixture Push
- High-Res Channels
- Intensity GlobalTiltColormix
- Performance Modes
- fastnormal (balanced)smooth
- Dimming Curves
- linearsoftS-Curve
- Fan Modes
- regulatedhighmediumlowminimum
- Subfixture Mode
- Normalindependent
- White points
- optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Others
- Stand Alone 1 captured SceneArt-Net/sACN NodeData ConversioniQ.MeshSW Fixture2Fixture Push
- iQ.Gamut
- Rec.709Rec.2020DCI P3.65
Connectors
- Signal connection
- XLR 5-PinIn/OutNeutrik etherCON port A & B (failsafe)GLP FX.Port
- Power input
- Neutrik powerCON TRUE1In/Out
Electrical Specifications
- Power input
- 100 – 240 VAC / 50 – 60Hz
- Power supply
- auto-ranging electronic switch-mode
- Power supply cable
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ftEU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V)
- 750 W
Thermal Specifications
- Cooling
- combined convection and forced air
- max. ambient temperature (Ta max.)
- 45 °C / 113 °F
- min. ambient temperature (Ta min.)
- 5 °C / 40 °F
- Total heat dissipation (calculated, +/-10%)
- 2,600 BTU/hr
Mounting Options
- Mounting
- 2 eyelets for safety cable4 pairs of 1/4-turn locks for two rigging/installation brackets
- Orientation
- any
- Location
- Indoor permanentOutdoor temporary
Construction
- Housing Color
- Black
- Housing Material
- high-impact flame-retardand thermoplasticAluminumsteel metal platess
- Protection Rating
- IP 65
- Construction Features
- handgaps for carryingTilt-Lock-SystemAlignment Systemthreads for external accessorySmart Slide-In Filter System
Dimensions & Weight
- Height
- 316 mm / 12.44 in
- Height (head straight down)
- 268.5 mm / 10.57 in
- Width (across yoke)
- 1,000 mm / 39.4 in
- Length
- 143.5 mm / 5.65 in
- Weight
- 27 kg / 59.52 lbs
