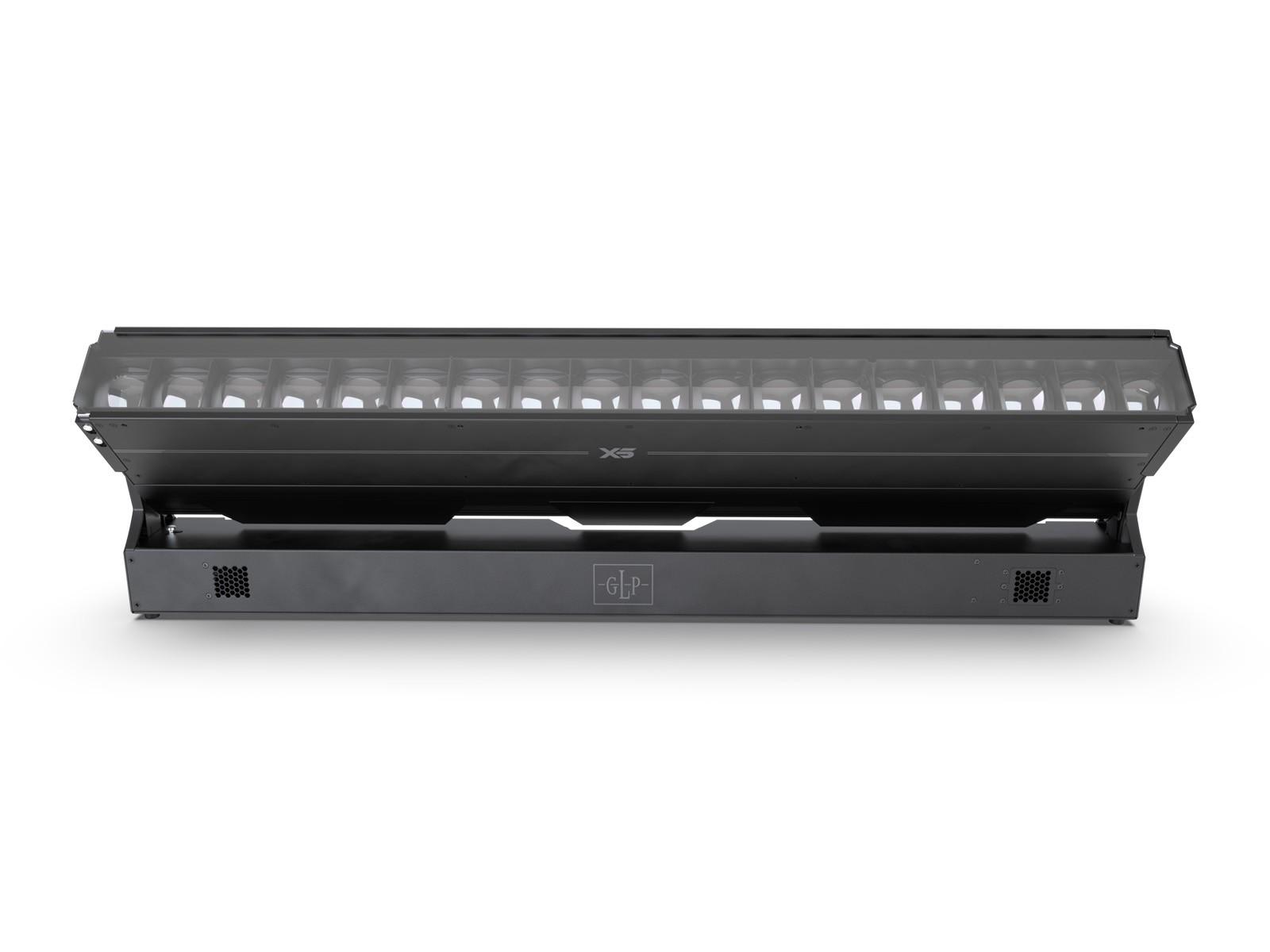

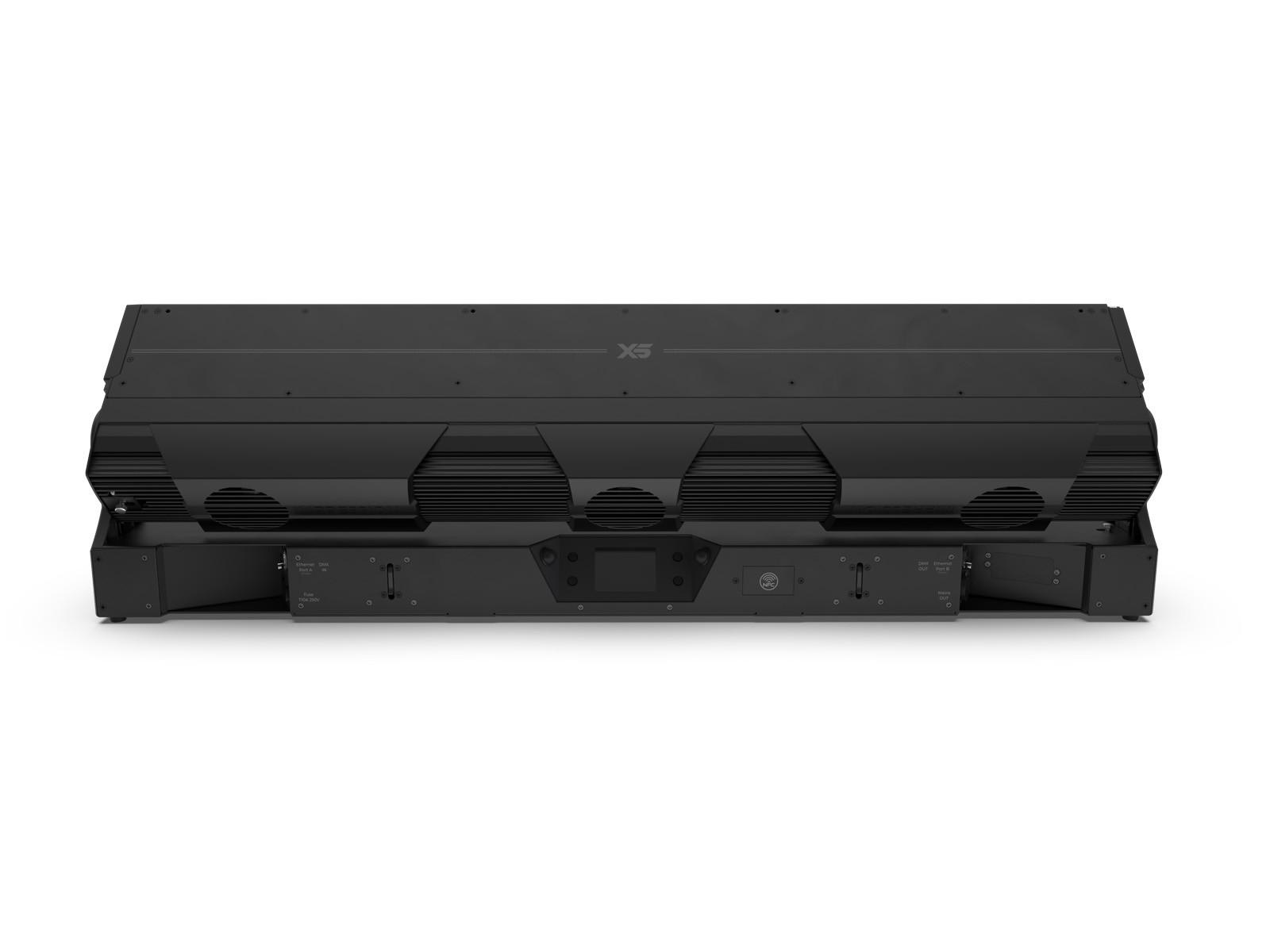

impression X5 Bar 1000
The GLP impression X5 Bar is a linear LED batten with 18 powerful 40 W RGBL LED’s, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.
The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 3.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.
As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.
The impression X5 Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired control as standard.
Light Source
| Type | RGBL LED |
| Light Source Count | 18 |
| Light Source Power | 18 x 40 W |
| Light Source Lifetime | 50,000 h |
| LED Refresh Rate | Low, Optimal (Default), High 1, High 2, Max |
| CCT | 6,500 K |
| Duv | perfect white point matches with low Duv values |
| CRI (Ra) | 6,500 K: 90 | 3,200 K: 85 |
| TLCI | 6,500 K: 90 | 3,200 K: 75 |
| TM-30-15 | 6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110 |
Optical System
| Output | up to 7,500 lm |
| Min. Zoom | 3.5° |
| Max. Zoom | 60° |
| Zoom Ratio | 1:17 |
| Output Lens | 18 x 48 x 48mm (square) |
Effects
| Dimmer | 0 – 100%; 16 bit |
| Shutter | Strobe, Pulse, Sparkel, etc. |
| Color mixing | RGB RAW x;y |
| Color Mix Priority | different Layer Priority settings |
| CTC (Color Temperature Control) | 2,500 – 10,000 K |
| CQC (Color Quality Control) | High Output (HO) High Quality (HQ) Desaturation |
| Magenta/Green-Shift | yes |
| Tungsten Simulation | 8 x linked to fix CCT, 8 x relative to Colormix |
| Color Wheel | virtual Color wheel, 64 LEE referenced colors |
| Pattern Effects | 50 dynamic pattern macros with special effects |
| Tilt Movement Angle | 205°, 16 bit |
| Zoom speed | super fast zoom mechanics |
Control
| DMX channels | M1: 20 / M2: 33 / M3: 48 / M4: 84 / M5: 63 / M6: 81 |
| Control Modes | M1: Basic / M2: Normal / M3: Segment / M4: Multipix Advanced / M5: Multipix Comressed / M6: Multipix Compressed RGBL |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN iQ.Mesh optional: Lumenradio CRMX @ FPO |
| Setting and addressing | control panel with backlit graphic display 4 Button Menu Navigation DMX RDM iQ.Mesh NFC via iQ.Service App |
| Software Update | DMX link via DProg internal Webinterface iQ.Mesh Fixture2Fixture Push |
| High-Res Channels | Intensity Global Tilt Colormix |
| Performance Modes | fast normal (balanced) smooth |
| Dimming Curves | linear soft S-Curve |
| Fan Modes | regulated high medium low off |
| Subfixture Mode | Normal independent |
| White points | optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K |
| Others | Stand Alone 1 captured Scene Art-Net/sACN Node Data Conversion iQ.Mesh FPO (Flexible Protocol Option) SW Fixture2Fixture Push |
Connectors
| Signal connection | XLR 5-Pin In/Out Neutrik etherCON port A & B (failsafe) |
| Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| Power supply cable | US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft EU: 16 A, 1.5 mm², H05VV-F, 1.5 m |
| max. power (@230V) | 750 W |
Thermal Specifications
| Cooling | combined convection and forced air |
| max. ambient temperature (Ta max.) | 45 °C / 115 °F |
| min. ambient temperature (Ta min.) | 5 °C / 40 °F |
| Total heat dissipation (calculated, +/-10%) | 2,600 BTU/hr |
Mounting Options
| Mounting | 2 eyelets for safety cable 4 pairs of 1/4-turn locks for two rigging/installation brackets |
| Orientation | any |
| Location | Indoor permanent Outdoor temporary |
Construction
| Housing Color | Black |
| Housing Material | high-impact flame-retardand thermoplastic Aluminum steel metal platess |
| Protection Rating | IP 20 |
| Construction Features | handgaps for carrying Tilt-Lock-System Alignment System threads for external accessory Smart Slide-In Filter System |
Dimensions & Weight
| Height | 296 mm / 11.65 in |
| Width (across yoke) | 1,000 mm / 39.4 in |
| Length | 110 mm / 4.33 in |
| Weight | 20.1 kg / 46.5 lbs |
