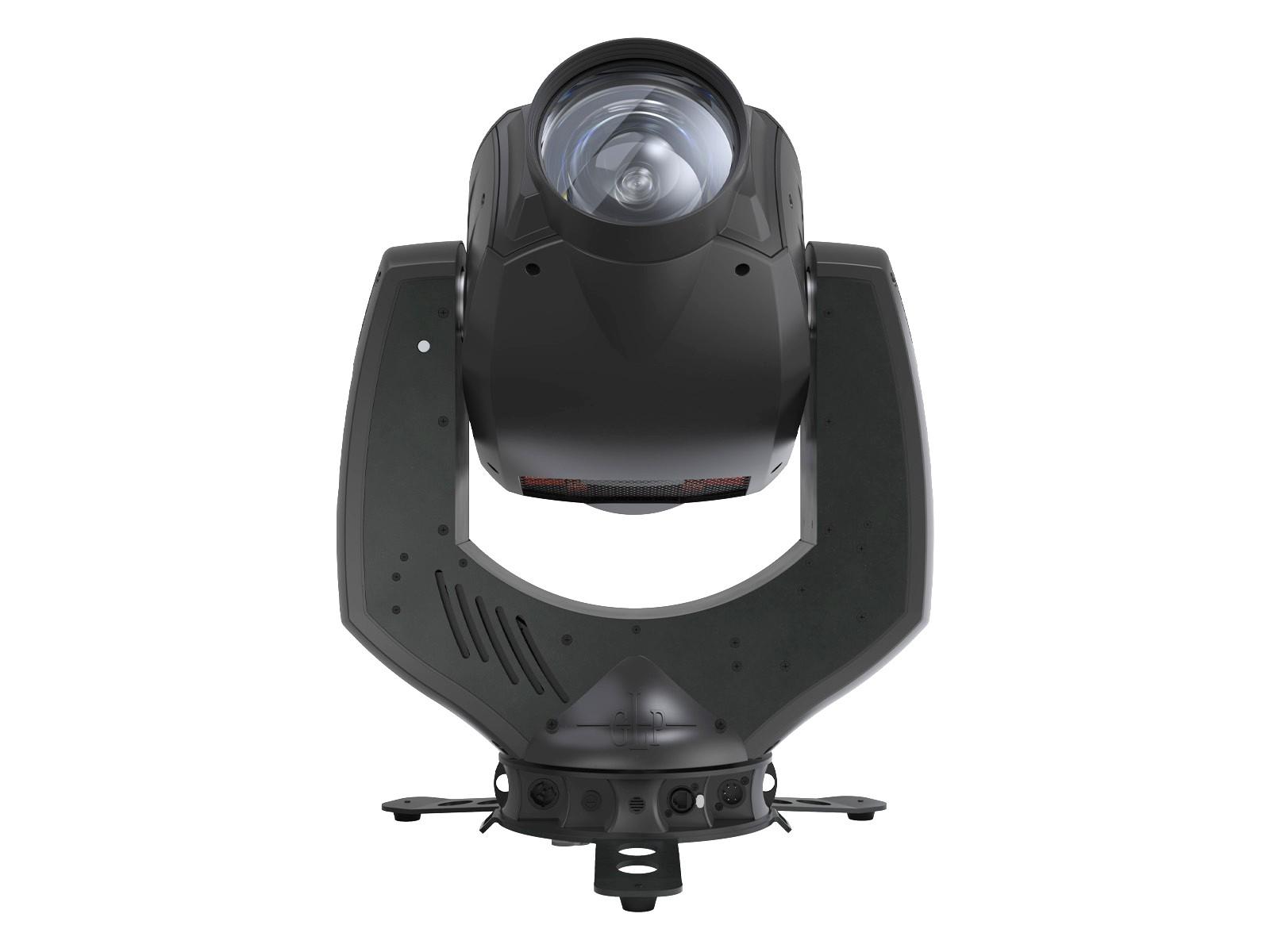

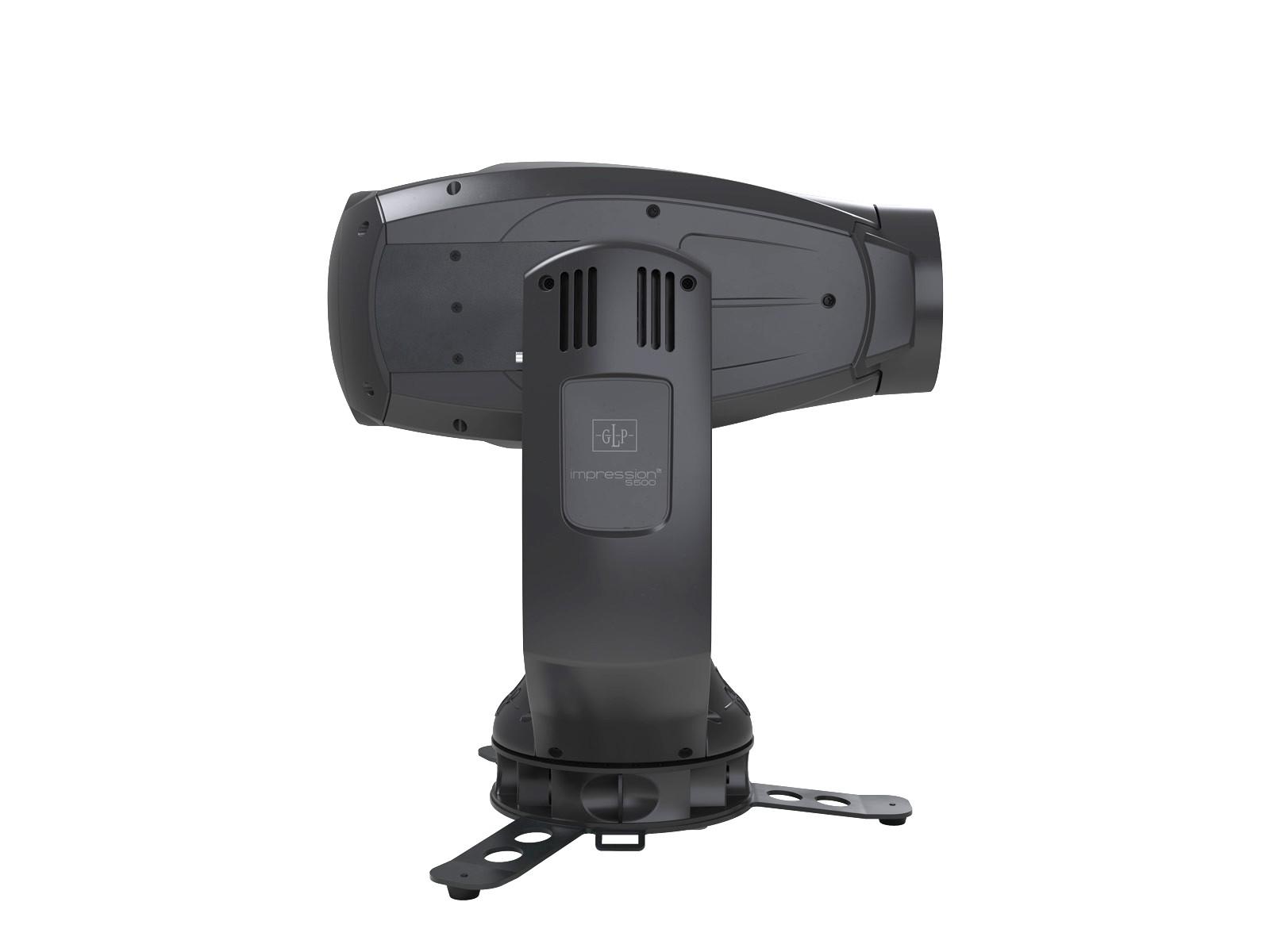

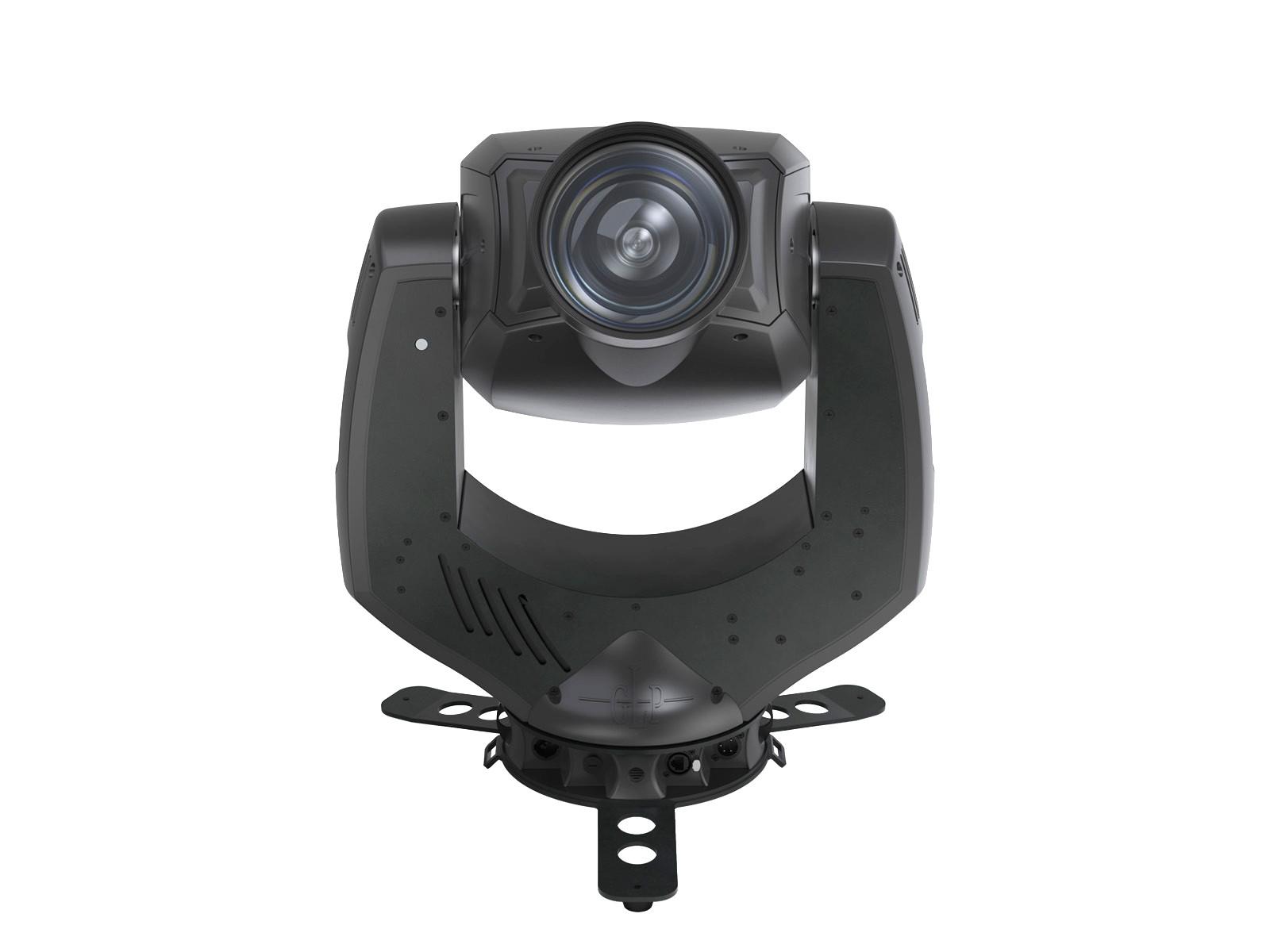

impression S500
With the new GLP impression S500 series, GLP elevates the renowned 350W moving head impression S350 to 500W LED power, delivering 30% to 65% more output. In addition, the optics, device software, and all connections and controls have been updated.
The compact construction with the same form factor and GLP’s signature baseless design allows for seamless integration of the fixture into a wide range of applications.
The impression S500 Profile series is available in the following versions:
The Profile HC version features a white LED engine delivering 26,000 lumens at a native 6,000 K. It produces a highly balanced light spectrum for outstanding color rendering (CRI and TLCI above 90). This high light quality ensures natural and realistic skin tones and provides a total luminous flux of 10,700 lumens.
In contrast, the Profile HO version includes a white LED engine delivering 40,000 lumens at a native 7,000 K. The highly efficient light source of the impression S500 Profile HO generates more power for dynamic projections and mid-air effects, with a total luminous flux of 14,800 lumens.
The motorized zoom on both profile versions provides exceptionally homogeneous illumination across a range of 7.5° to 40°.
The motorized zoom on both profile versions provides exceptionally homogeneous illumination across a range of 7.5° to 40°. Additionally, the extensive feature set includes a CMY color mixing system, an innovative CTC color control system, a color wheel with 10 color filters plus open, a rotating gobo wheel with 7 gobos plus open, and a static gobo wheel with 10 gobos plus open. It also features a 90° adjustable animation wheel, a blendable frost system ranging from soft to medium, a precise framing system with four shutter blades, including tilt and framing rotation, a rotating 8-facet prism, and motorized 540°/565° pan and 256° tilt movement.
The compact IP20 housing weighs just 26.9 kg (57.4 lbs.) and supports quiet operation, making the fixtures perfect for demanding professional applications in TV studios, theaters, or musical shows.
| Name | Description |
| impression S500 Profile HC | High Color Rendering White LED |
| impression S500 Profile HO | High Output White LED |
Light Source
| Type | White Light LED |
| Light Source Count | 1 |
| Light Source Power | 500 W |
| Light Source Lifetime | 20,000 h |
| LED Refresh Rate | Low, Optimal (Default), High 1, High 2, Max |
| CCT | HC Version: 6,000 K | HO Version: 7,000 K |
| CRI (Ra) | HC Version: 90+ | HO Version: 70 |
| TLCI | HC Version: 90+ |
Optical System
| Output | HC Version: up to 10,700 lm | HO Version: up to 14,800 lm |
| Min. Zoom | 7.5° |
| Max. Zoom | 40° |
| Zoom Ratio | 1:5 |
| Focus | 16 bit, focus tracking option |
Effects
| Framing Module |
4 separately movable shutters each +/-30° positionable 100% positionable into the beam rotatable module +/- 45° |
| Effect Wheel | rotating (wave pattern) |
| Frost | 2-way (soft & medium) |
| Prism | 8-way |
| Gobo Wheel 1 | 7 rotating Gobos + open |
| Gobo Wheel 2 |
10 Gobos fixed |
| Color mixing |
CMY color mixing variable 0 – 100 % 8 bit |
| CTC (Color Temperature Control) |
2,500 – 8,000 K using CMY System |
| Color Wheel |
10 fix colors + open 7 fix color filters + 4 spectral filter |
| Pan Movement Angle | 540°, 16 bit | extended: 565° |
| Tilt Movement Angle | 256°, 16 bit |
Movement
| Resolution | 16 Bit |
| Position Feedback | yes |
Control
| DMX channels | 35 |
| Control Modes | 1 |
| Protocol |
DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN optional: Lumenradio CRMX PCB plugin FVP Port |
| Setting and addressing |
control panel with backlit graphic display 4 Button Menu Navigation DMX RDM iQ.Mesh |
| Software Update | DMX link via DProg iQ.Mesh via iQ.Service App GLP iQ.Tool |
| Performance Modes |
fast normal (balanced) smooth |
| Dimming Curves | linear soft S-Curve |
| Fan Modes | regulated high medium low minimum |
| Others | Stand Alone 1 captured Scene |
| No signal | Blackout Hold Stand Alone Scene |
Connectors
| Signal connection |
XLR 5-Pin In/Out Neutrik etherCON port A & B (failsafe) |
| Power input |
Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power supply | auto-ranging electronic switch-mode |
| max. power (@230V) | 750 W |
Thermal Specifications
| Cooling | temperature controlled, overheating protection |
| Total heat dissipation (calculated, +/-10%) | 2,600 BTU/hr |
| Temperature range, operating | 5 °C – 45 °C | 41 °F – 115 °F |
Mounting Options
| Mounting |
2 eyelets for safety cable 4 pair of 1/4-turn locks |
| Standing | Removable baseplate with brackets for ratchet belt |
| Orientation | any |
| Location | dry |
| min. distance to combustible materials | 0.1 m / 3.94 in |
| min. distance to illuminated surfaces | 1.0 m / 39.4 in |
Construction
| Housing Material |
high-impact flame-retardand thermoplastic Aluminum steel metal plates |
| Protection Rating | IP 20 |
| Construction Features |
baseless design Tilt-Lock-System |
Dimensions & Weight
| Height (head vertical) | 642 mm / 25.3 in |
| Width (across yoke) | 471 mm / 18.5 in |
| Length | 230 mm / 9 in |
| Weight | 26.9 kg / 57.4 lbs |
