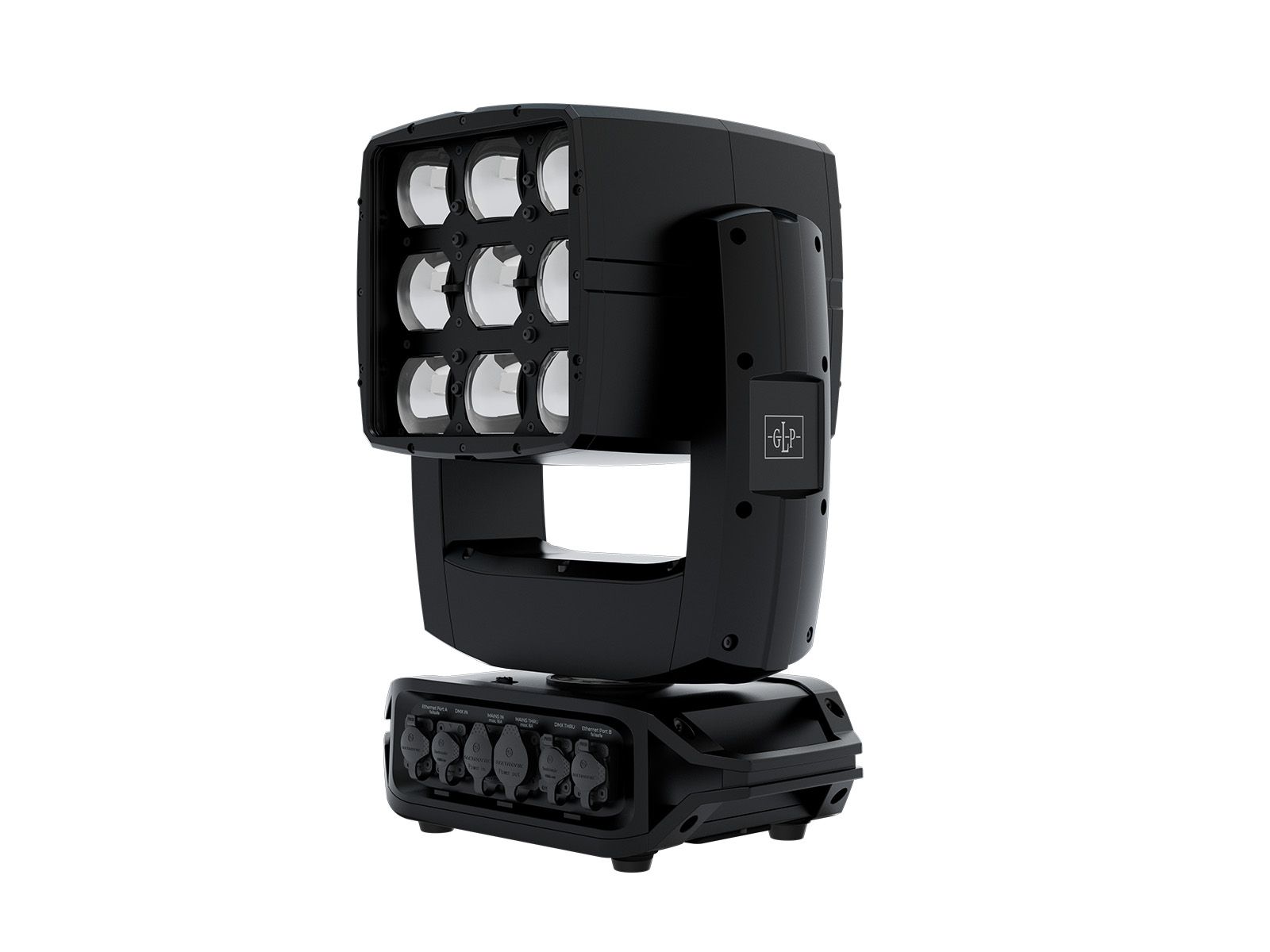

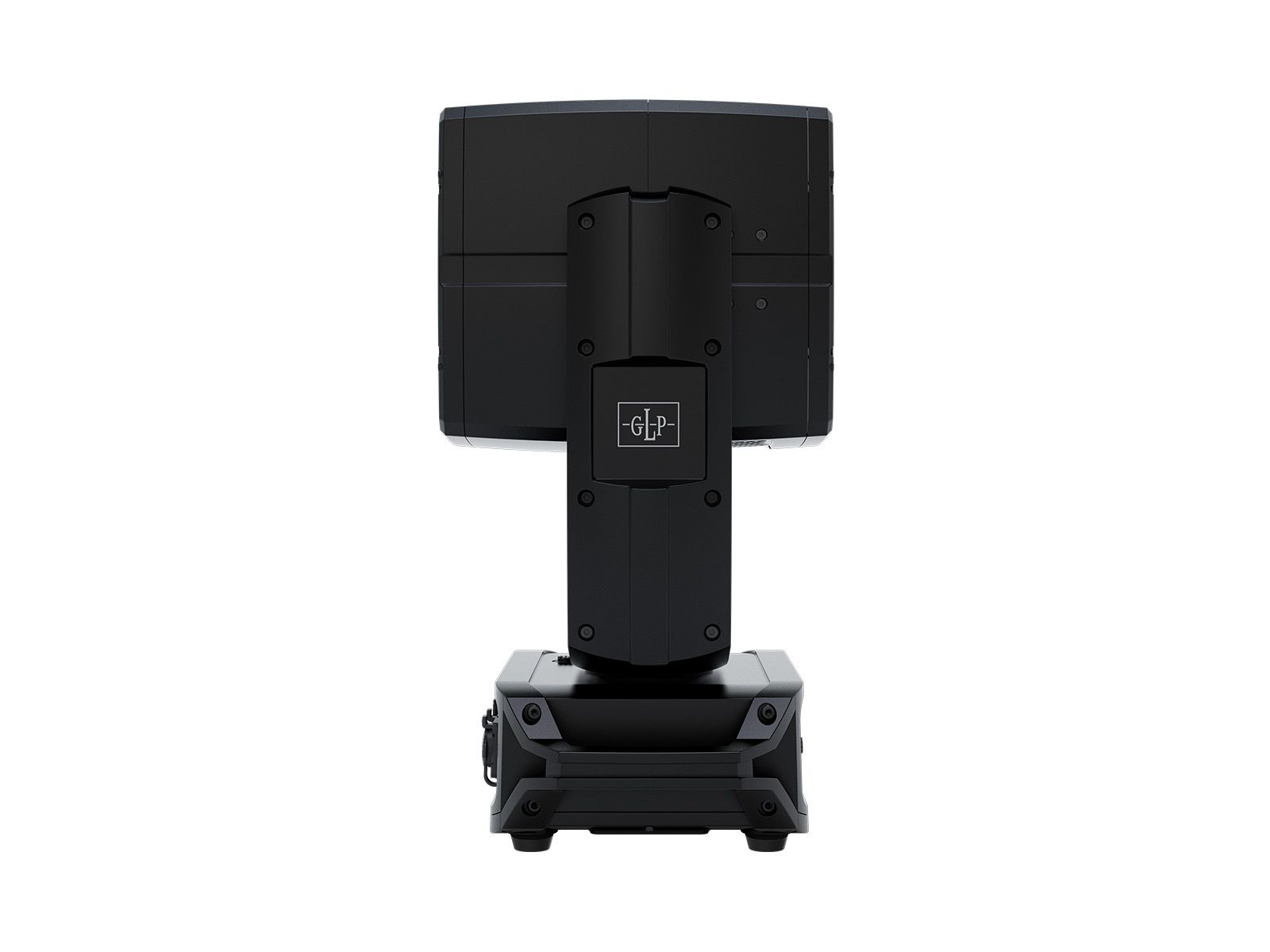

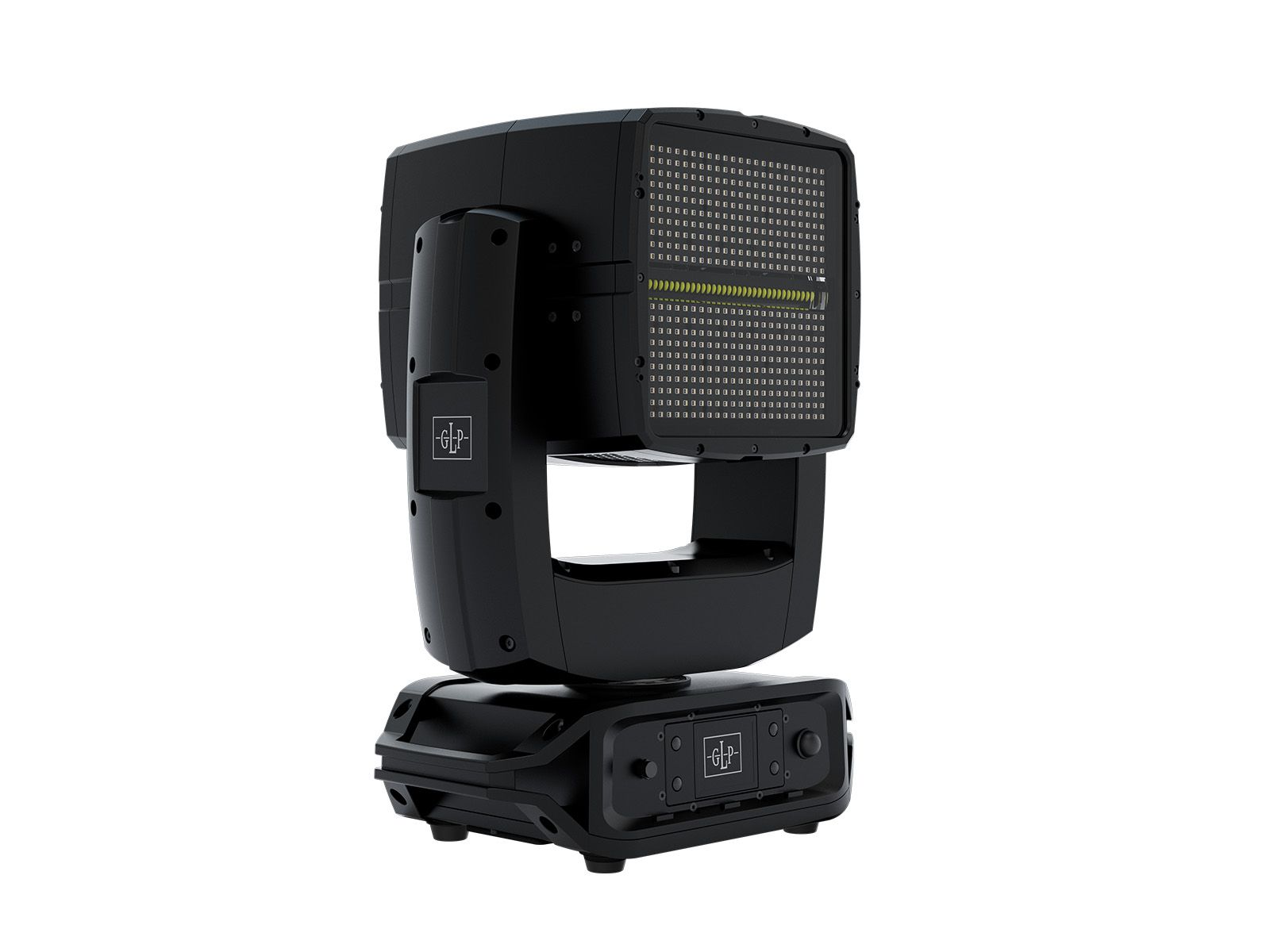

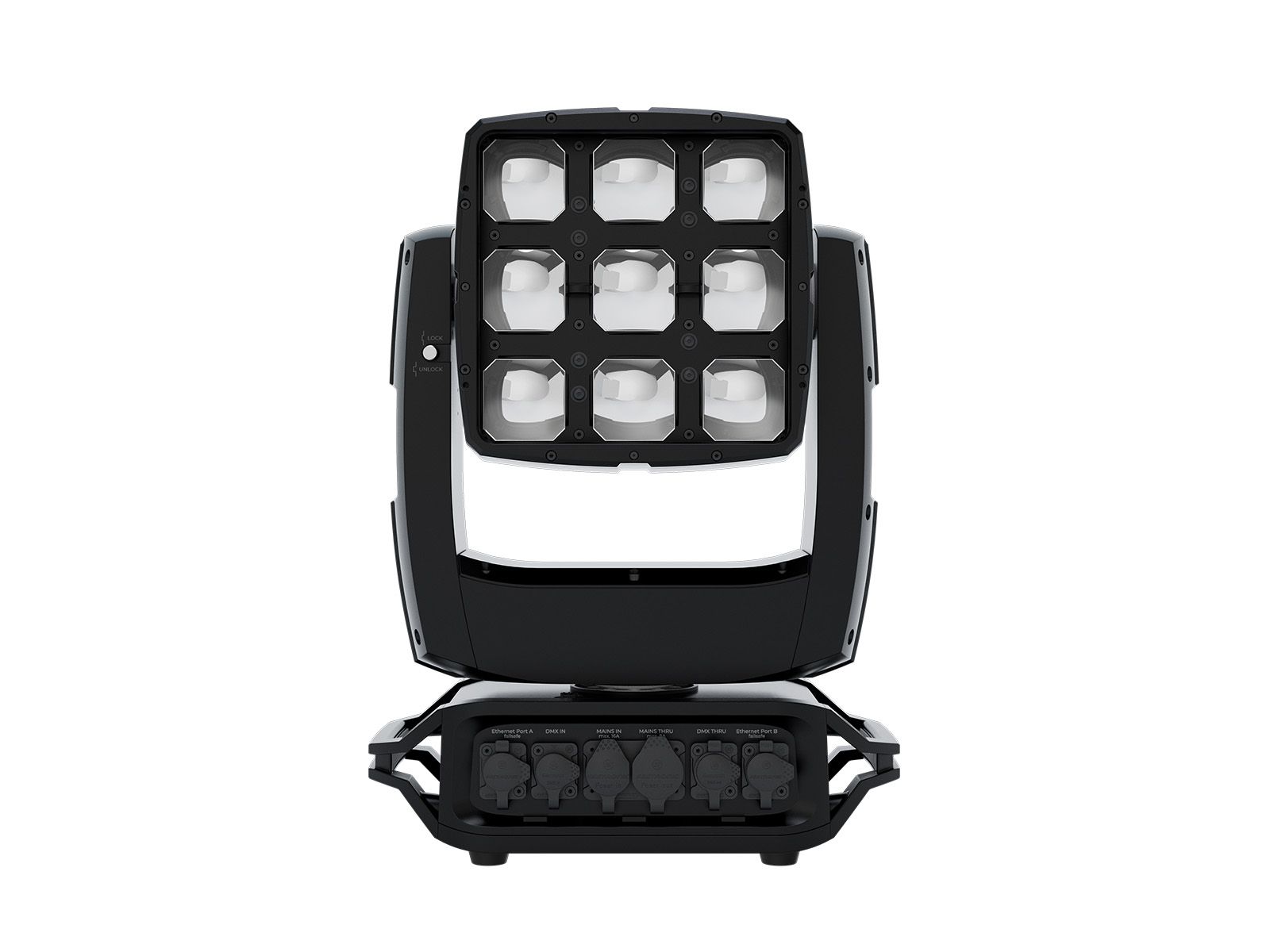

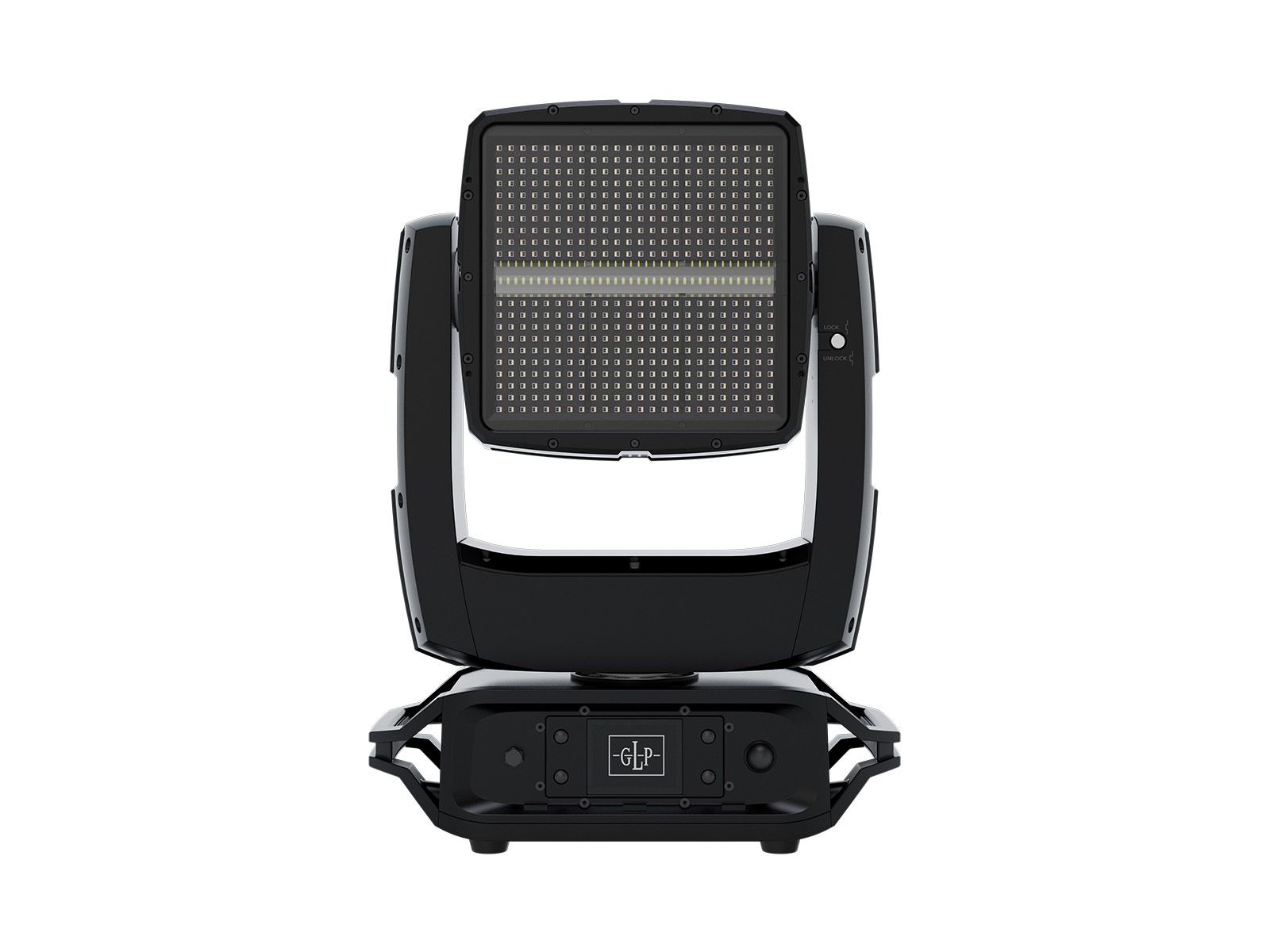

impression FR2 Wash
GLP impression FR2 Wash is a compact and powerful wash fixture designed for professional stage, television, and event applications. Equipped with a high-output RGBW LED engine, it delivers intense, saturated colors and a wide color spectrum with smooth and precise color mixing. Thanks to its wide zoom range, the fixture can produce both a narrow, focused beam and a broad, soft wash, while maintaining a homogeneous field of light without visible hotspots. It offers high-quality dimming performance, fast and dynamic movement, and quiet operation, making it ideal for concerts, touring productions, TV studios, theaters, corporate events, and club installations. Its lightweight and compact design ensures easy transport and installation, especially in mobile production environments.
Light Source
| Type | Main: RGBL FX Layer: RGBW (32 pixels) |
| Count | Main: 1 FX Layer: 32 LEDs in 3 rings |
| Power | Main: 150 W |
| Light Source Lifetime | 50,000 h |
Optical System
| min. Zoom | 4.6° |
| max. Zoom | 34° |
| Front Lens | Single Micro-Fresnel, diameter: 165 mm |
Control
| DMX channels | 18 | 28 | 40 | 52 | 171 | 427 |
| Control Modes | 6 |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) GLP iQ.Mesh |
| High-Res Channels | Dimmer Tilt Pan |
| Dimming Curves | linear soft S-Curve |
| Fan Modes | regulated high medium low |
| Setting and Addressing | backlit graphic LCD 4 Button Menu Navigation DMX RDM GLP iQ.Mesh 1 Scene Stand Alone |
| Other Control Options | 3 Layer Pattern-FX-Engine |
| Software Update | GLP iQ.Mesh GLP iQ.Tool GLP iQ.Control App |
Connectors
| Power Connection | Neutrik powerCON TRUE1 In/Out |
| Signal Connection | Neutrik XLR 5-Pin In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| max. Power (@ 230 V) | 200 W |
| Fuse | T4A 250V 5x20mm |
Thermal Specifications
| Cooling | combined convection and forced air |
| Overheating Protection | automatic |
| min. Ambient Temperature | 5 °C / 40 °F |
| max. Ambient Temperature | 45 °C / 113 °F |
Mounting Options
| Mounting | 1 pair of 1/4-turn locks 2 eyelets for safety cable |
| Orientation | any |
| Location | Dry Indoor temporary |
| min. Distance to Combustible Materials | 0.1 m |
| min. Distance to Illuminated Surfaces | 1 m / 39.4 in |
Construction
| Housing Color | Black |
| Housing Material | high-impact flame-retardand thermoplastic aluminum |
| Protection Rating | IP 20 |
Dimensions & Weight
| Height | 311 mm / 12.24 in |
| Height (head straight up) | 354 mm / 13.93 in |
| Width (across yoke) | 250 mm / 9.84 in |
| Depth (head straight up) | 185 mm / 7.28 in |
| Weight (netto) | 5.2 kg / 11.46 lbs |
