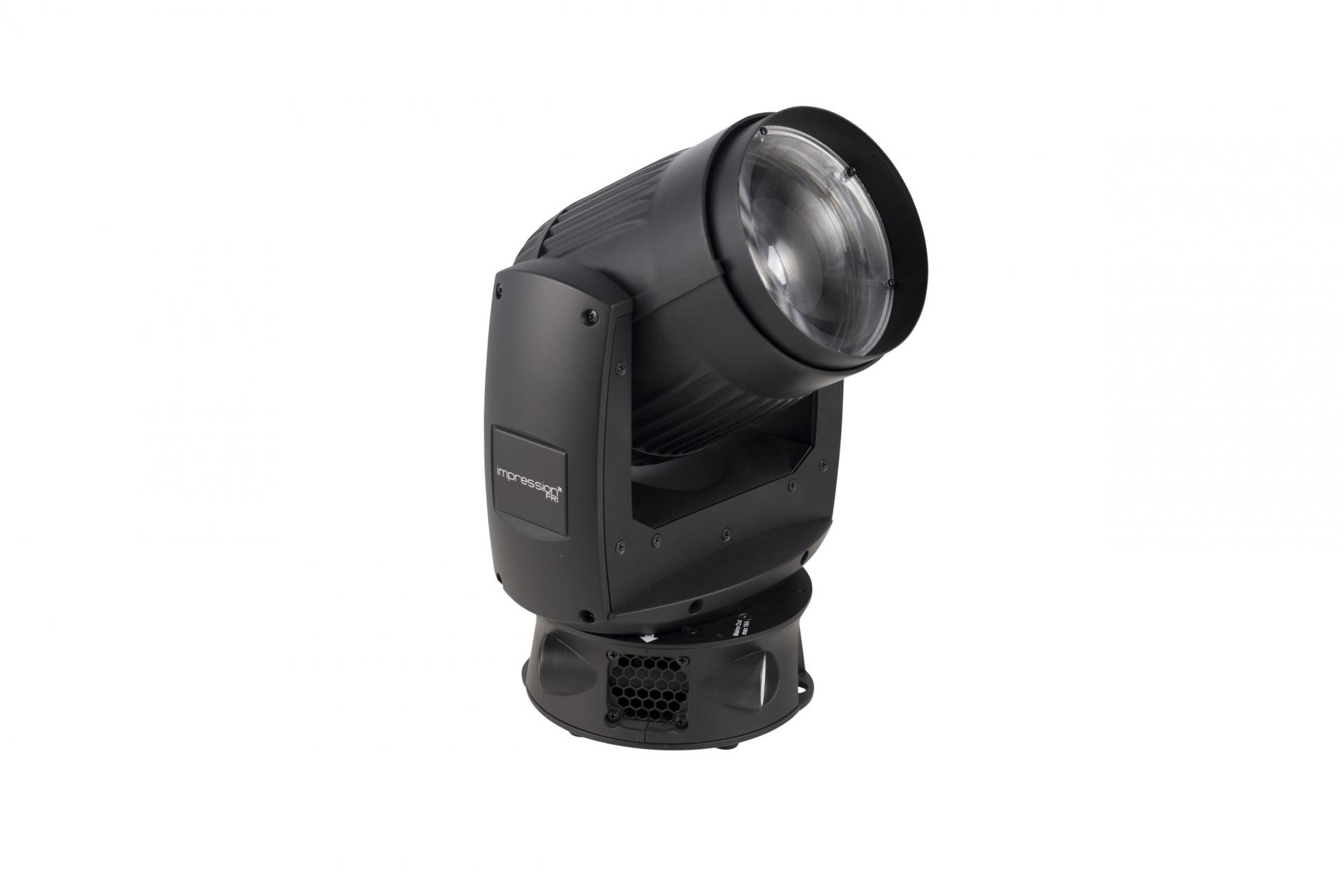

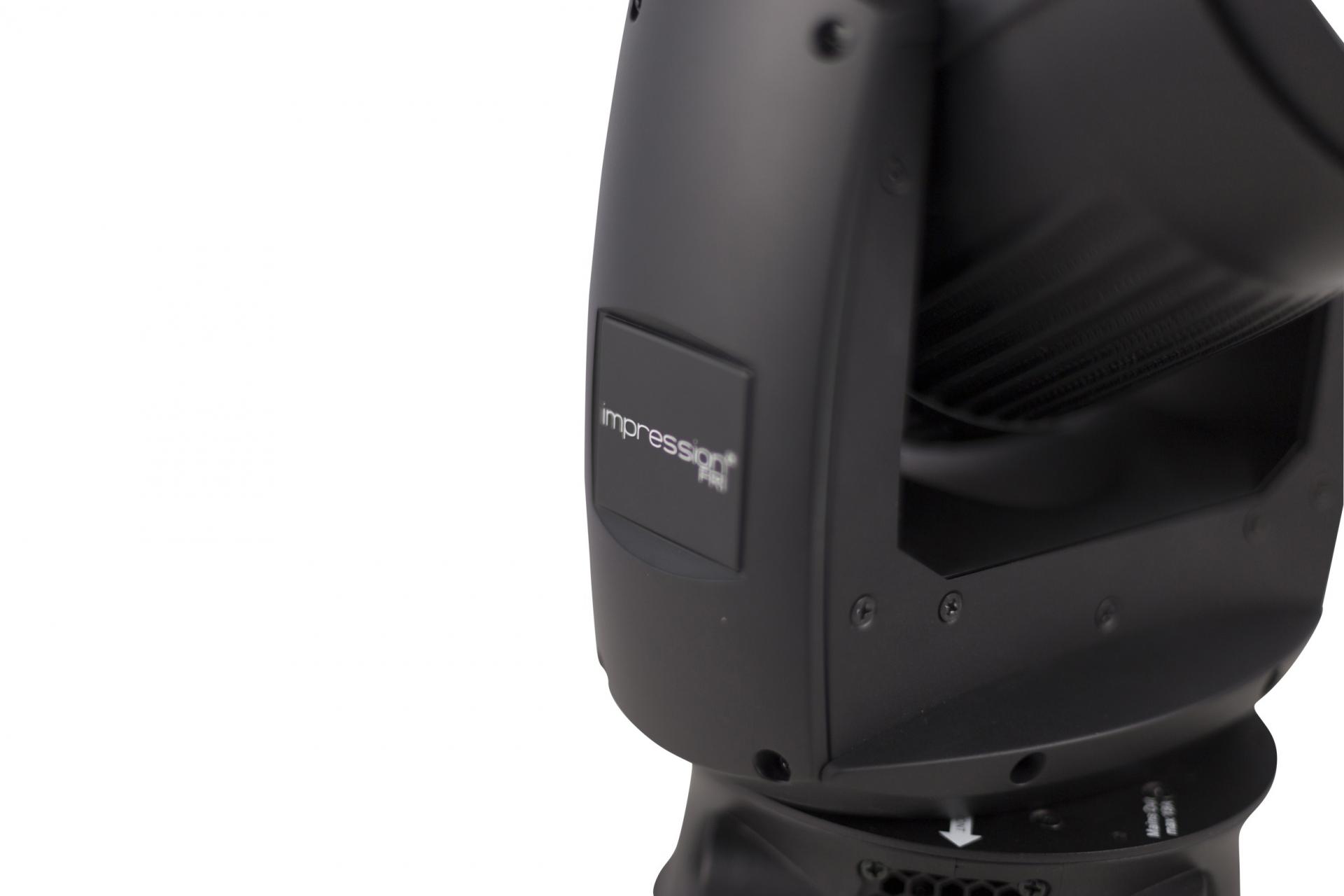

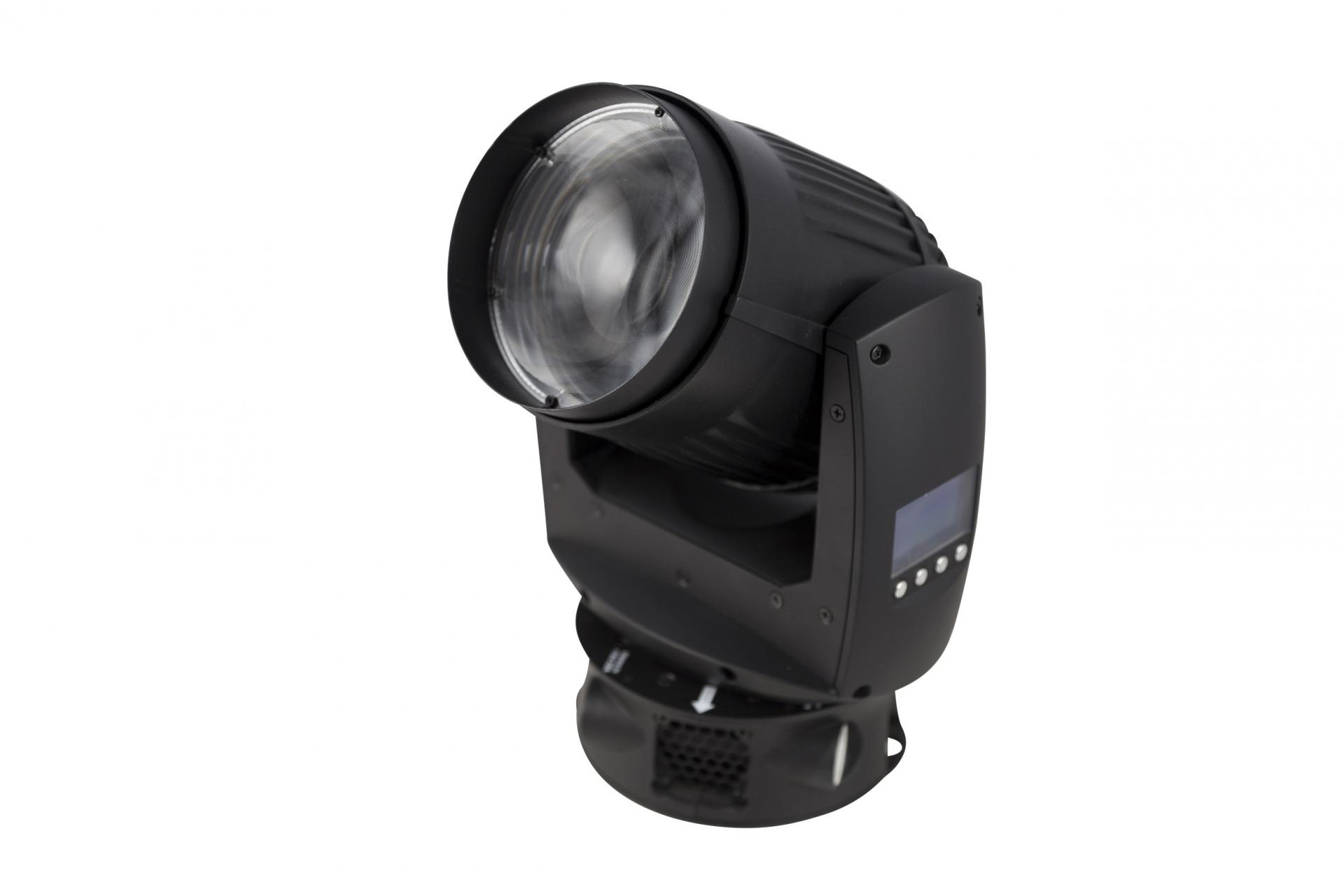

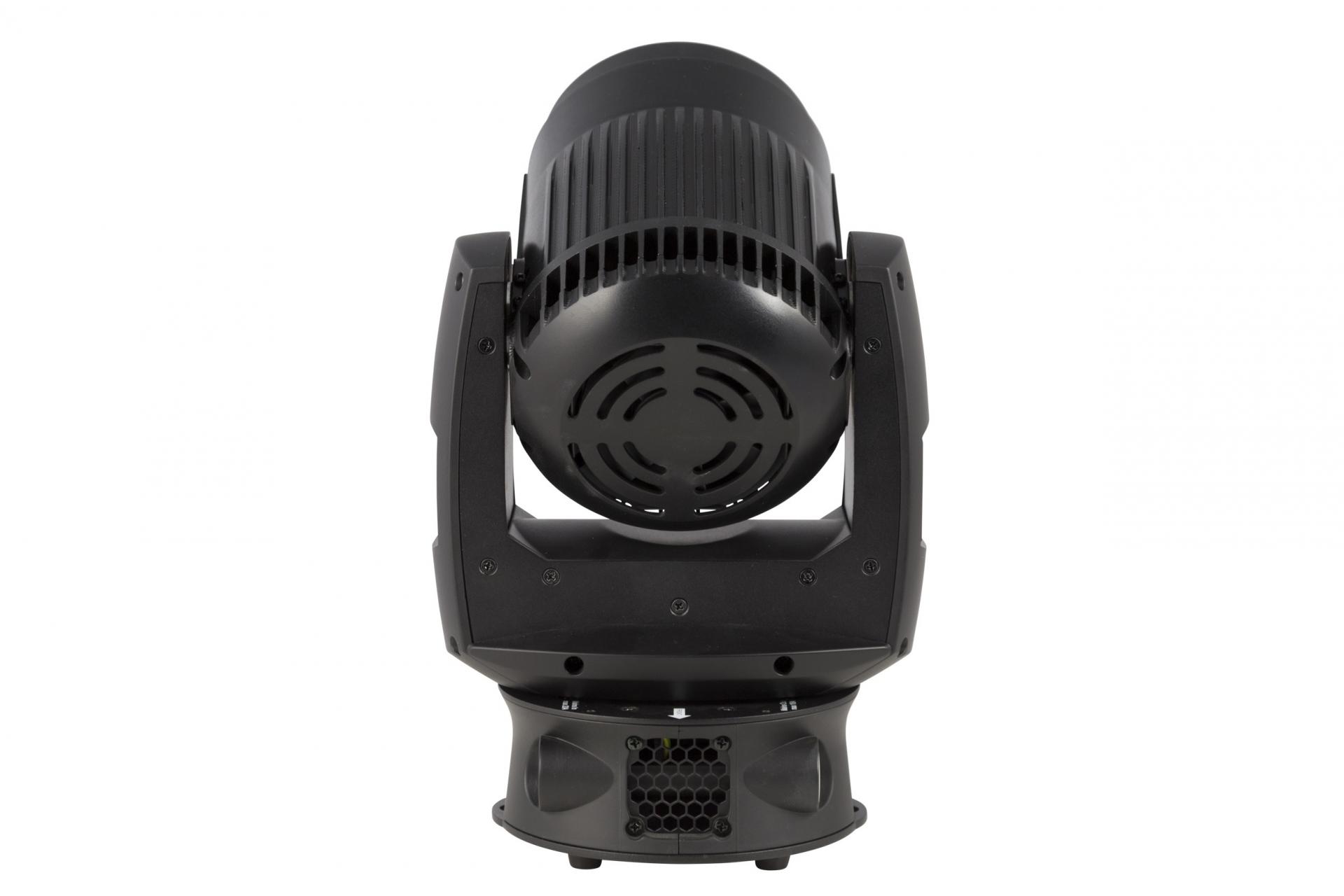

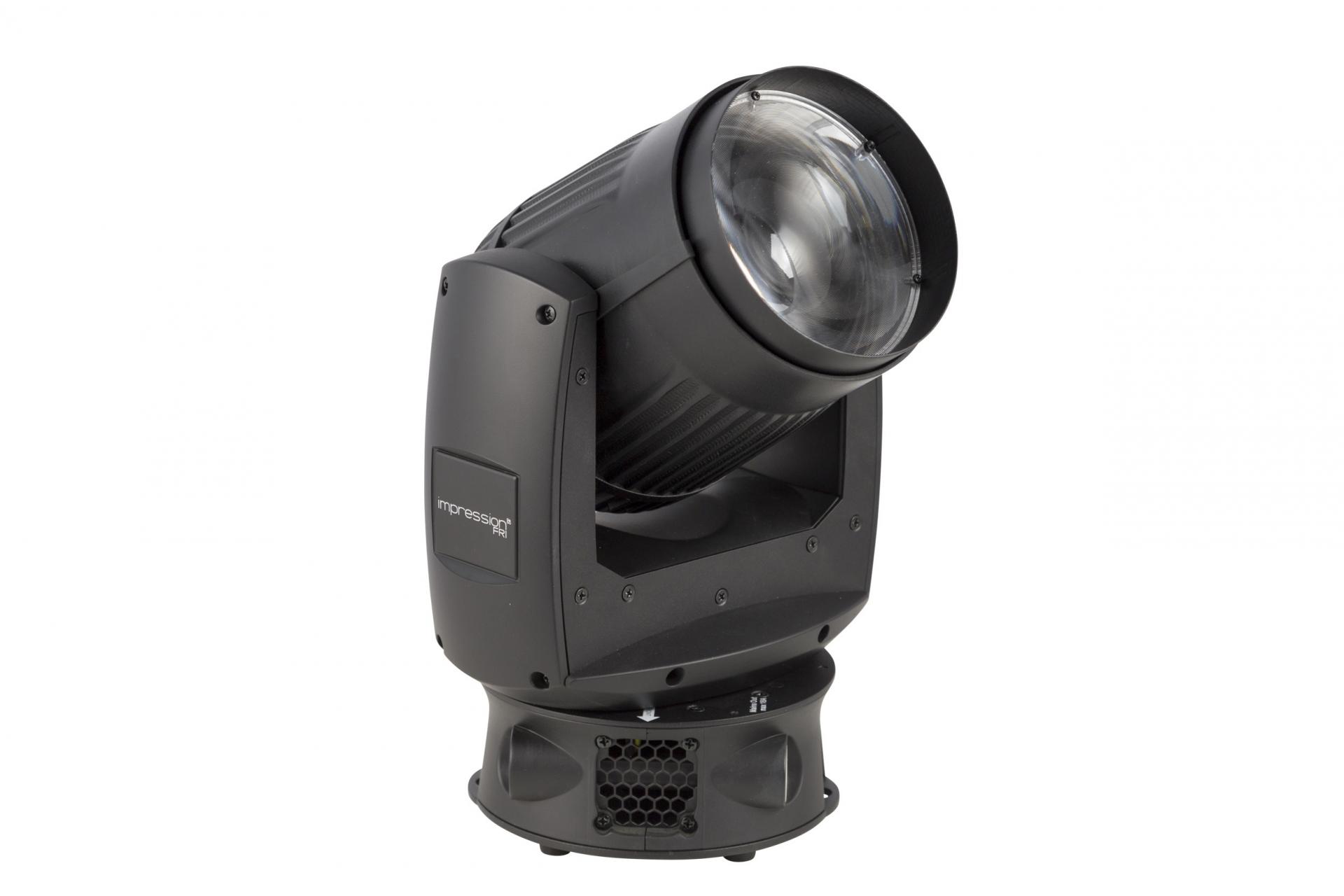

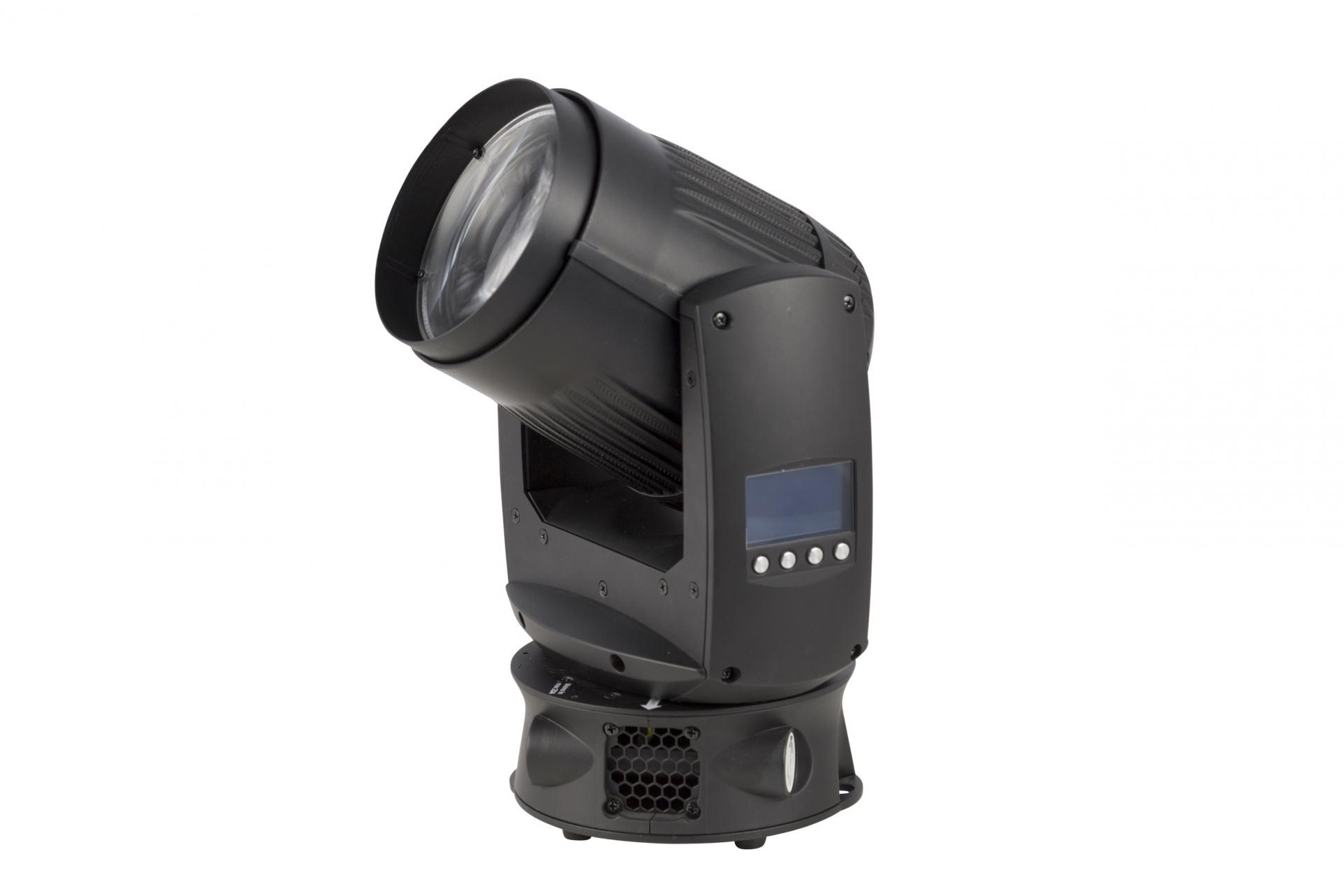

impression FR1
The new GLP impression FR1 is the latest compact LED moving head which offers a soft pencil beam and super fast movement and continuous pan rotation for amazing 3D multi beam designs.
But that’s not all – the optical system can move from a 4°soft narrow beam to a 35°soft wide wash light. Optionally it is possible to remove the soft front diffusor to get a more hard edge beam in 3,7°. The high quality OsramRGBW Quad LED emits saturated colors and white light of all relevant color temperatures – selectable via RGBW-or CTO-Control. The new micro Fresnel front lens has a homogeny round image and visibility at plan view – which is needed for TV applications.
The GLP impression FR1 has been designed with the famous baseless design and an extremely and compact body easily fitting into the tightest spaces of set designs from concert and touring stages, television and film, corporate events, set lighting to special events.
| SKU | Name | Description |
| 7686 | impression FR1 | kolor: black |
| 7684 | impression FR1 White | kolor: white |
Light Source
| LED Type | Osram Ostar |
| Lifetime (Hours) | 50,000 h |
| LED Count | 1 |
| LED Colors | RGBW |
| CRI (Ra) | 80 |
| TLCI | 80 |
| TM-30-15 | 77/106 |
Optical System
| Min. Zoom | 3.7° |
| Max. Zoom | 35° |
| Zoom Ratio | 10:1 |
Effects
| Dimmer / Shutter | 0 – 100% electronic |
| Shutter | electronic max. 25 Hz |
| Color mixing | RGBW |
| CTC (Color Temperature Control) | electronic 2,500 – 10,000 K |
| Internal Effects | Color presets |
| Pan | 629° |
| Tilt | 210° |
Movement
| Resolution | 8 – 16 Bit |
| Position Feedback | yes |
| Continuous movement | 360° Pan |
Control
| Control Modes | Normal |
| Protocol | DMX (USITT DMX512-A) |
| Display | illuminated graphic LCD |
| Cooling | temperature controlled overheating protection |
Connectors
| Signal connection | XLR 5-Pin |
| Power input | Neutrik PowerCON |
Operating Condtions
| Mains voltage | 100 – 240 VAC / 50 – 60Hz |
| Power (Watt @ 230V) | 85 |
| Fuse | 20mm T 5A |
| Maximum ambient temperature | 45°C / 115°F |
| Operating Position | any |
| EEC | E |
| EEI | 1.193 |
| Ec (kWh/1,000h) | 68 |
| Power factor | > 0.94 / 230 V AC > 0.98 / 115 V AC |
| Total heat dissipation (calculated, +/-10%) | 290 BTU/h |
Mounting Options
| Safety wire attachment | 2 eyelets |
| Standing | Rubber feet |
| Hanging (vertically) | M10 socket for half coupler, or other clamp |
Construction
| Standard colors | Black |
Dimensions & Weight
| Height (head vertical) | 264 mm / 10.4 in |
| Width (across yoke) | 190 mm / 7.5 in |
| Length | 140 mm / 5.5 in |
| Weight | 4 kg / 8.8 lbs |
