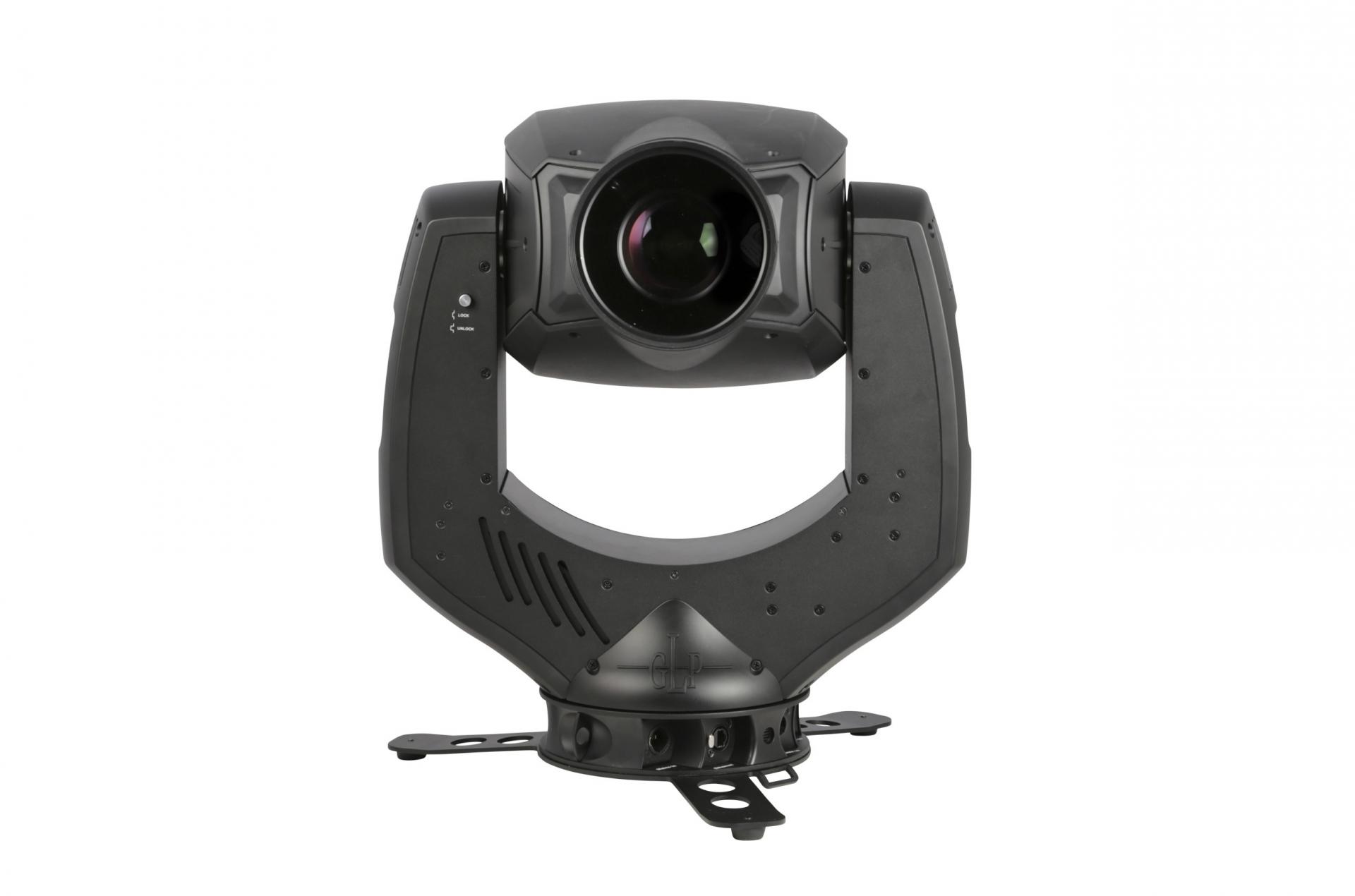

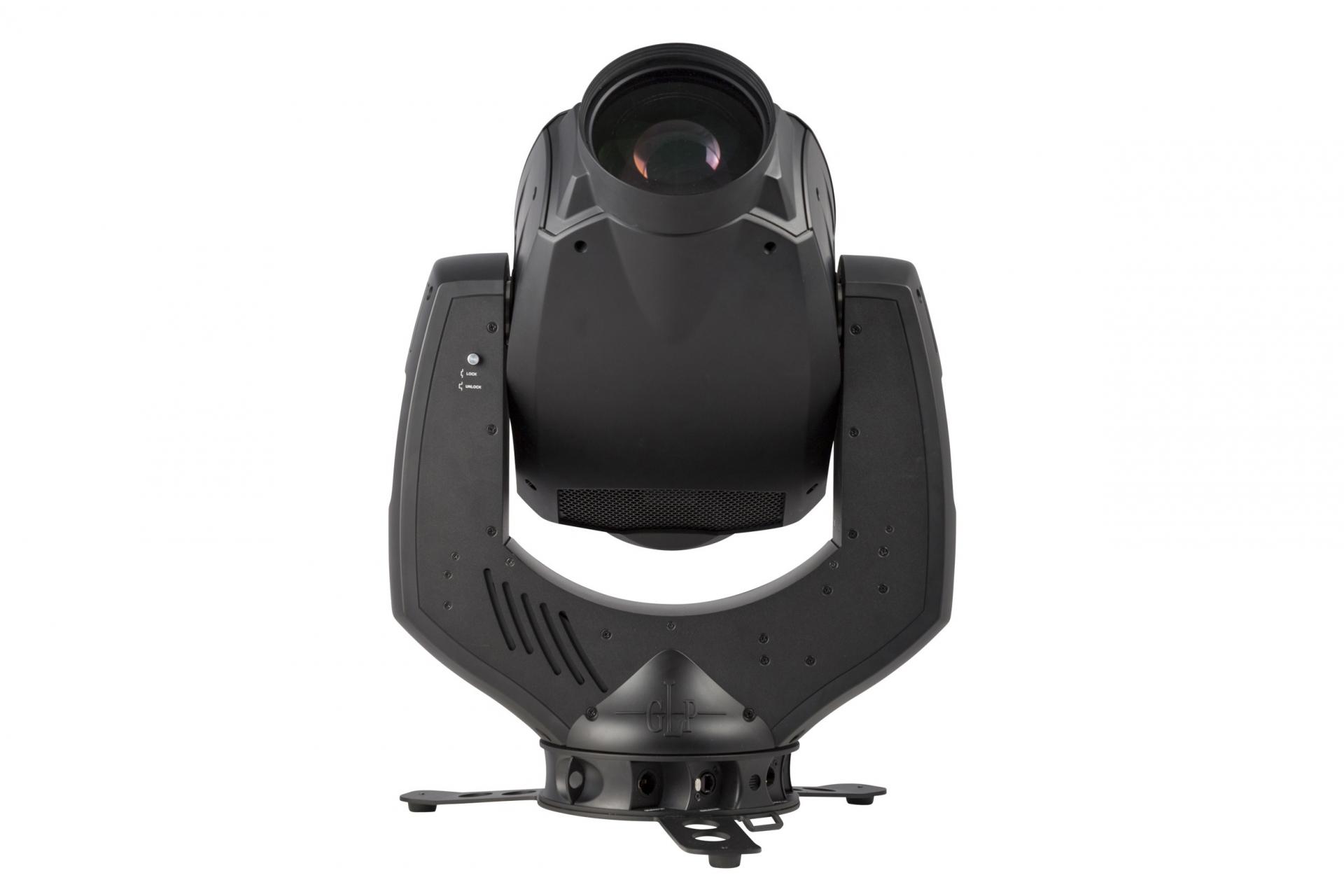

impression E350
The impression E350 is the brother of the impression S350 LED Moving Head. With its 30% brighter LED engine and very narrow iris, the fixture fits for a variety of applications. With a color temperature of 7.500K, it is able to create sharp midair effects and bright gobo projections.
The optic offers a 1: 5 – zoom (8° – 42 °) and has a very even field with a remarkable light output of up to 12.200 lm.
The color mixing is done using CMY filters, which are specially calculated for the LED spectrum and provide a color mixture from pastel shades to deep saturated colors. If required, GLP’s new CTC function provides continuous color temperature adjustment from 2.500 K to 8.000 K
The impression E350 also houses an 8x prism, a 2x frost, a tiltable animation wheel, two gobo wheels, a super tight 14-blade iris, and a 10-color color wheel. Of course, all functions can be used in combination with each other and make the GLP impression E350 the perfect tool for almost any application.
Like the impression S350, the E350 does without a classic base and, with a weight of just 24.5 kg, is one of the real lightweights. The universal power supply, the integrated battery are as self-evident as the optional lumen radio CRMX adapter for wireless DMX.
Light Source
LED Type | White-Light (350 W) |
Lifetime (Hours) | 20,000 h |
Color temperature | 7,500 K |
CRI (Ra) | 75+ |
TLCI | 45 + |
CQS | 70 + |
TM-30-15 | Rg 90+ / Rf 70+ |
Luminous Flux | 12,200 |
PWM | 2,200 Hz; 3,000 Hz; 4,800 Hz; 9,600 Hz; 25 kHz |
Optical System
Min. Zoom | 8° |
Max. Zoom | 42° |
Zoom Ratio | 1:5 |
Focus | motorized 2m – infinite |
Focus tracking | off, near, medium, far |
Effects
Dimmer / Shutter | 0 – 100% electronic two dimming curves |
Shutter | electronic max. 10 Hz |
Iris | 100% – 4% |
Effect Wheel | rotating and indexable 90° tiltable |
Frost | 2-way (soft & medium) |
Prism | 8-way slow to very fast rotation |
Gobo Wheel 1 | 7 Gobos rotatable and indexable interchangeable |
Gobo Wheel 2 | 10 Gobos fixed |
Color mixing | CMY color mixing |
CTC (Color Temperature Control) | variable CTC mechanical 2,500 – 8,000 K |
Color Wheel | 4 CTC filters 6 colors + open |
Internal Effects | LED Macro Effects |
Pan | 565° |
Tilt | 256° |
Movement
Resolution | 16 Bit |
Position Feedback | yes |
Control
Control Modes | Normal |
Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN |
Display | illuminated graphic LCD intuitive touch wheel control self charging buffer battery |
Wireless | Lumenradio CRMX DMX/RDM (optional) |
Cooling | overheating protection |
Transceiver | RS-485 |
Receiver | Opto-isolated RS-485 |
Software Update | DMX link |
Stand-Alone | DMX-Snapshot via DMX |
Connectors
Signal connection | XLR 5-Pin XLR 3-Pin etherCON In/Out |
Power input | Neutrik powerCON TRUE1 In |
Operating Condtions
Mains voltage | 100 – 240 VAC / 50 – 60 Hz |
Power (Watt @ 230V) | 550 Watt |
Fuse | 20mm T 5A |
Maximum ambient temperature | 45°C / 115°F |
Operating Position | any |
Protection Rating (IP) | IP 20 |
EEC | E |
EEI | 0.927 |
Ec (kWh/1,000h) | 459 |
Power factor | > 0.986 / 220 V AC > 0.999 / 110 V AC |
Mounting Options
Standing | Removable baseplate with brackets for ratchet belt |
Hanging (vertically) | Omega-Bracket 4 Camlock and two M10 threads |
Construction
Housing Color | Black |
Dimensions & Weight
Height (head vertical) | 642 mm / 25.3 in |
Width (across yoke) | 471 mm / 18.5 in |
Length | 474 mm / 18.8 in |
Weight | 24.5 kg / 56 lbs |
