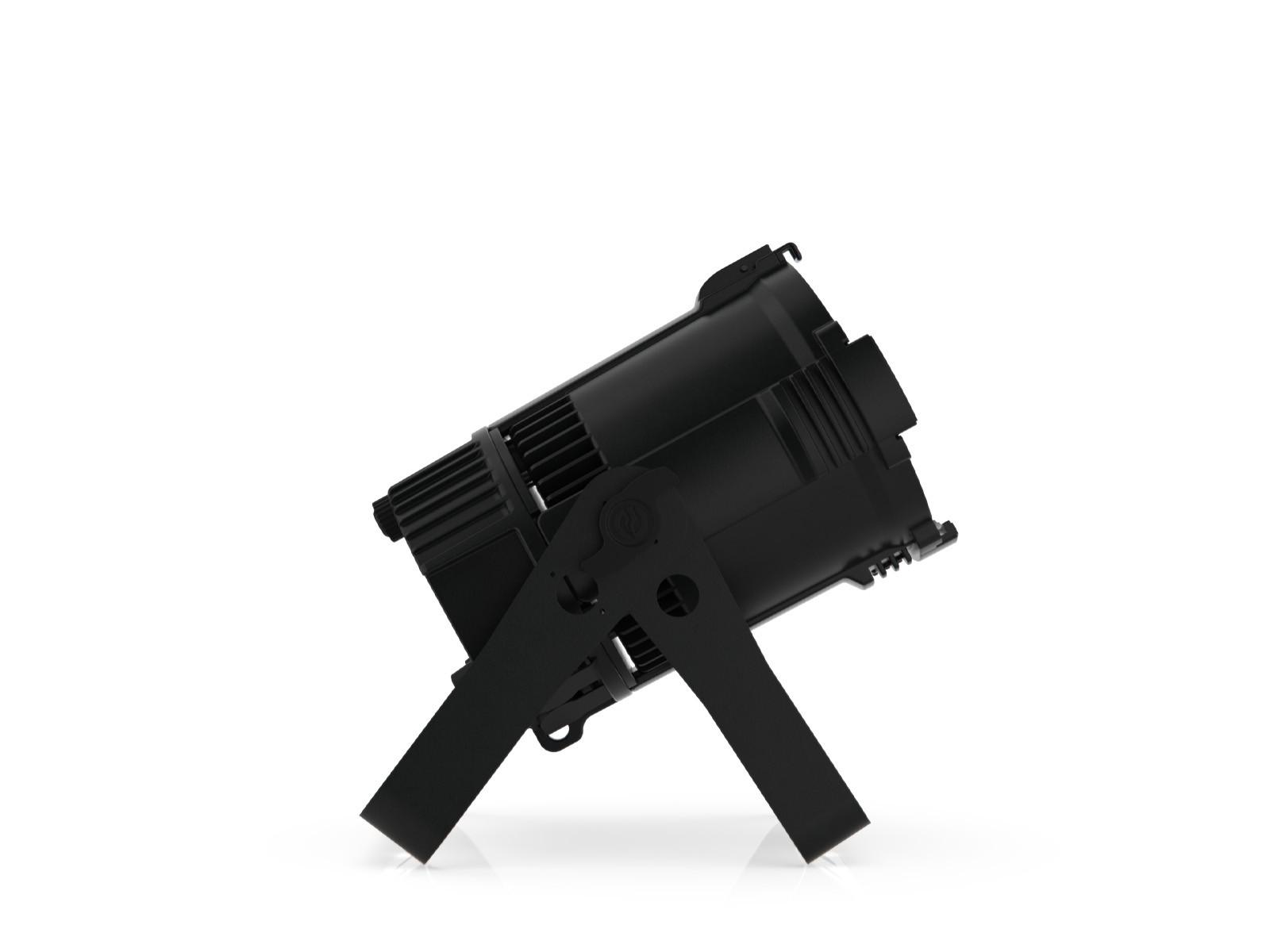

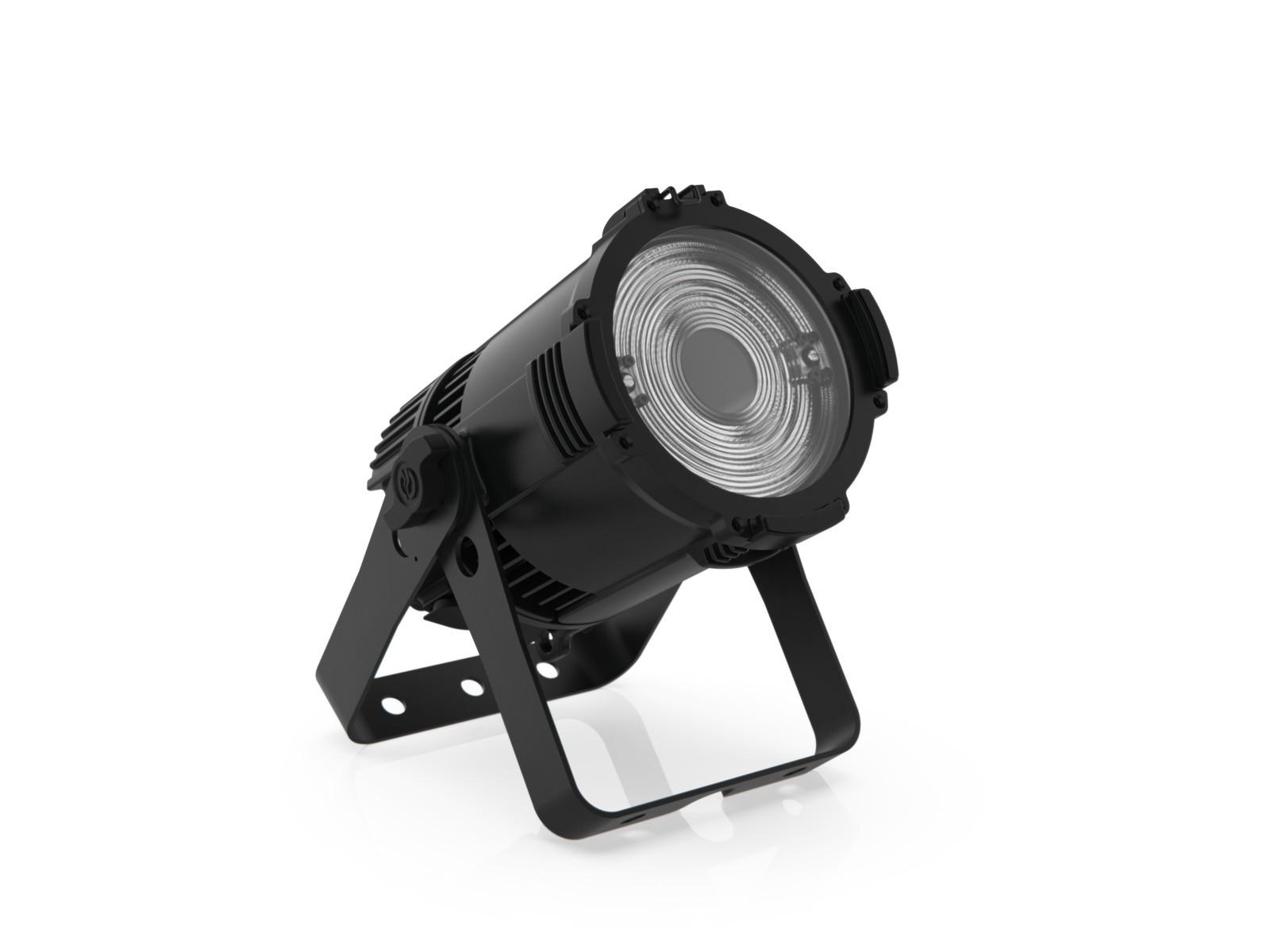

FUSION X-PAR 8Z
The FUSION X-PAR 8Z is the most compact and lightest of FUSION by GLP’s X-PAR series of weatherproof (IP65) LED PARs, with motorised zoom function. The FUSION X-PAR 8Z is a real all-rounder and is suitable for a wide range of applications. At just 4.5 kg, it is also a real lightweight that makes it ideal for applications with limited space.
Whether for use individually or in a matrix, as eye candy on stage, as a coloured beamlight or for homogeneous illumination of surfaces, the FUSION X-PAR 8Z’s motorised zoom makes all this possible. And with its IP65 classification, the spotlight is also ideal for façade lighting.
From a highly efficient 80-watt RGBL LED, the X-PAR 8Z emits up to 1,800 lm with excellent light quality thanks to GLP’s patented iQ.Gamut colour calibration. The extremely compact housing (175 x 175 x 249 mm) allows it to be used in a variety of applications, and the 132 mm Fresnel lens ensures an excellent light image. Thanks to the motorised zoom, powerful 8° beams are just as possible as homogeneous washes up to 55°.
A variable colour temperature adjustment from 2,500 to 10,000 Kelvin, four dimmer curves, seven PWM settings, including magenta/green shift correction and a virtual colour wheel with 64 referenced LEE colours, round off the features of the FUSION X-PAR 8Z.
Finally, the fixture’s fanless cooling system also allows it to be used in noise-sensitive environments. The device supports DMX, RDM and iQ.Mesh.
Light Source
| Type | RGBL LED |
| Light Source Count | 1 |
| Light Source Power | 80 W |
| LED Refresh Rate | 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz |
| CRI (Ra) | 85+ |
| TLCI | 80+ |
Optical System
| Output | up to 1.800 lm |
| Min. Zoom | 8.5° |
| Max. Zoom | 55° |
| Zoom Ratio | 1:7 |
| Output Lens Diameter | 132 mm / 5.2 in |
Effects
| Dimmer / Shutter | 0 – 100% electronic |
| Color mixing | RGBL |
| CTC (Color Temperature Control) | 2,500 – 10,000 K |
| Color Wheel | virtual, 64 Lee Filter + 4 White Presets |
| Zoom | motorized |
Control
| Control Modes | 6 |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) |
| Setting and addressing | OLED Display 4 Button Menu Navigation DMX RDM |
| Others | Stand Alone 1 captured Scene |
Connectors
| Signal connection | XLR 5-Pin In/Out |
| Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| Power supply cable | US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft EU: 16 A, 1.5 mm², H05VV-F, 1.5 m |
| max. power (@230V) | 85 W |
Thermal Specifications
| Cooling | Convection cooling |
| max. surface temperature (Ta = 40°C) | 90 °C / 194 °F |
| Total heat dissipation (calculated, +/-10%) | 290 BTU/hr |
| Temperature range, operating | -10 °C / 14 °F to 40 °C / 104 °F |
Mounting Options
| Mounting | 1 Double Bracket with three mounting holes 1 M12 Thread, centered, for Drop Mount 1 Safety Cable attachment point |
| Location | Indoor permanent Outdoor temporary |
| min. distance to combustible materials | 0.2 m / 8 in |
| min. distance to illuminated surfaces | 0.5 m / 18.7 in |
Construction
| Housing Color | Black |
| Housing Material | Aluminum |
| Protection Rating | IP 65 |
| Construction Features | floor standing with adjustable foot Direct M10 Thread for Drop Mounting low-ceiling mounting with bracket Holder for optional accessories (filter frame, barndoor) |
Dimensions & Weight
| Height | 175 mm / 6.9 in |
| Width | 175 mm / 6.9 in |
| Length | 249 mm / 9.8 in |
| Weight | 4.5 kg / 10 lbs |
