FUSION X-PAR 18Z

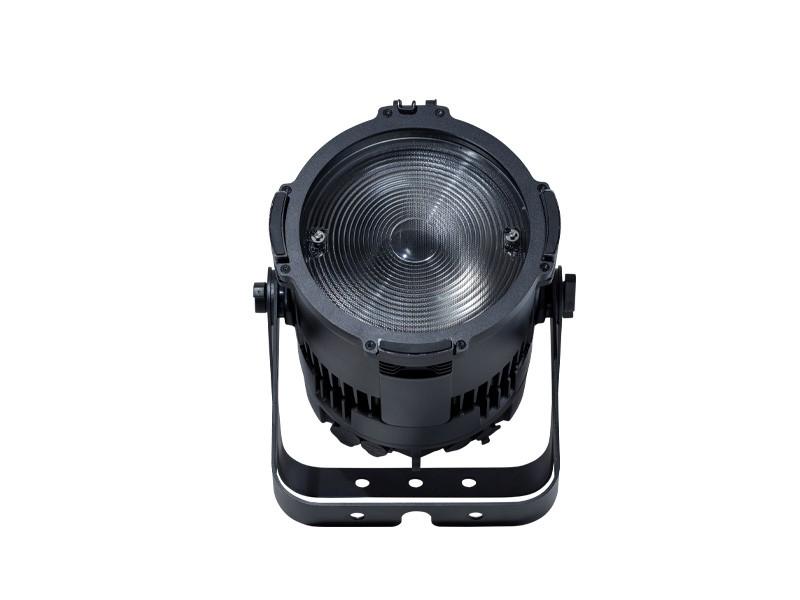

The FUSION X-PAR 18Z is a versatile LED PAR. With its The FUSION X-PAR 18Z is a versatile LED PAR. With its 190 mm Fresnel Zoom Lens and the single Source LED 180 W RGBL, it fits any application needed. The wide zoom range from 8.5° to 55° Degree provides perfect beam control. The big brother to the FUSION X-PAR 12Z, it provides a higher light output of up to 4,790 lm.

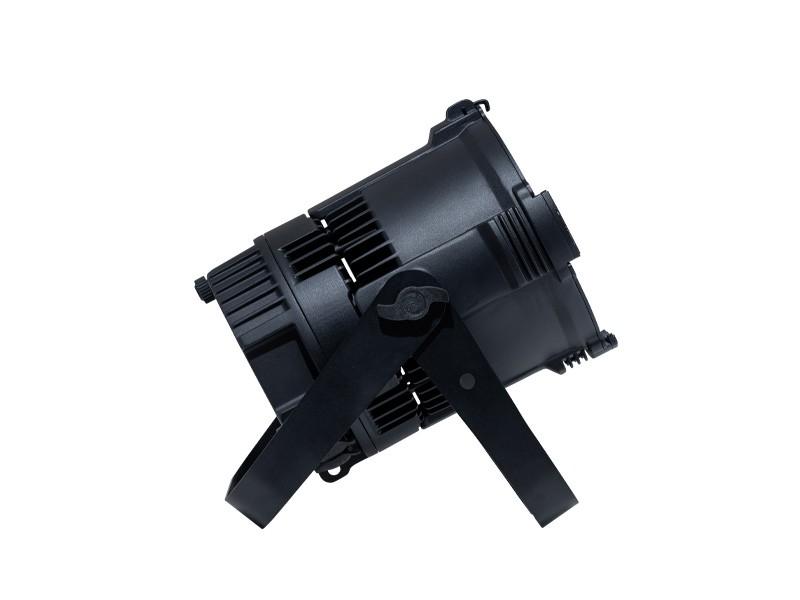

The housing is constructed for standing without bracket, making it possible to use the FUSION X-PAR 18Z as uplighter with narrow beam as well as a general lighting fixture with wide angle to light up whole areas. Additionally, the M12 Thread placed on the back of the fixture enables vertical dropping and other mounting options.
With its fanless IP65 rated design, it is prepared for all uses in- and outdoor.
As part of the new range of GLP fixtures with the impressive GLP iQ.Gamut Technology, the FUSION X-PAR 18Z comes with great color algorithm and calibration. In combination with the RGBL LED, it has the power to choose between Color Quality or Output to match any application.
Light Source
| Type | RGBL LED |
| Light Source Count | 1 |
| Light Source Power | 180 W |
| Light Source Lifetime | 20,000 h |
| LED Refresh Rate | 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz |
| CRI (Ra) | 85+ |
| TLCI | 80+ |
Optical System
| Output | up to 4,790 lm |
| Min. Zoom | 8.5° |
| Max. Zoom | 55° |
| Zoom Ratio | 1:7 |
Effects
| Dimmer / Shutter | 0 – 100% electronic |
| Color mixing | RGBL |
| CTC (Color Temperature Control) | 2,500 – 10,000 K |
| Color Wheel | virtual, 64 Lee Filter + 4 White Presets |
| Zoom | motorized |
Control
| DMX channels | 4 / 6 / 6 / 8 / 11 / 16 |
| Control Modes | 6 |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) CRMX (Lumenradio) iQ.Mesh |
| Setting and addressing | OLED Display 4 Button Menu Navigation DMX RDM |
| Software Update | DMX link |
| High-Res Channels | Dimming |
| Dimming Curves | Inv. Square linear S-Curve Square |
| Fan Modes | regulated high medium low |
| Others | Stand Alone 1 captured Scene |
Connectors
| Signal connection | XLR 5-Pin In/Out |
| Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| Power supply cable | US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft EU: 16 A, 1.5 mm², H05VV-F, 1.5 m |
| max. power (@230V) | 200 W |
Thermal Specifications
| Cooling | combined convection and forced air |
| max. surface temperature (Ta = 40°C) | 90 °C / 194 °F |
| Temperature range, operating | -10 °C / 14 °F to 40 °C / 104 °F |
Mounting Options
| Mounting | 1 Double Bracket with three mounting holes 1 M12 Thread, centered, for Drop Mount 1 Safety Cable attachment point |
| Location | Indoor permanent Outdoor temporary |
| min. distance to combustible materials | 0.2 m / 8 in |
| min. distance to illuminated surfaces | 0.5 m / 18.7 in |
Construction
| Housing Color | Black |
| Housing Material | Aluminum |
| Protection Rating | IP 65 |
| Construction Features | floor standing with adjustable foot M12 Thread for Drop Mounting low-ceiling mounting with bracket Holder for optional accessories (filter frame, barndoor) |
Dimensions & Weight
| Height | 245 mm / 9.65 in |
| Width | 245 mm / 9.65 in |
| Length | 297.5 mm / 11.71 in |
| Weight | 8.8 kg / 19.4 lbs |
