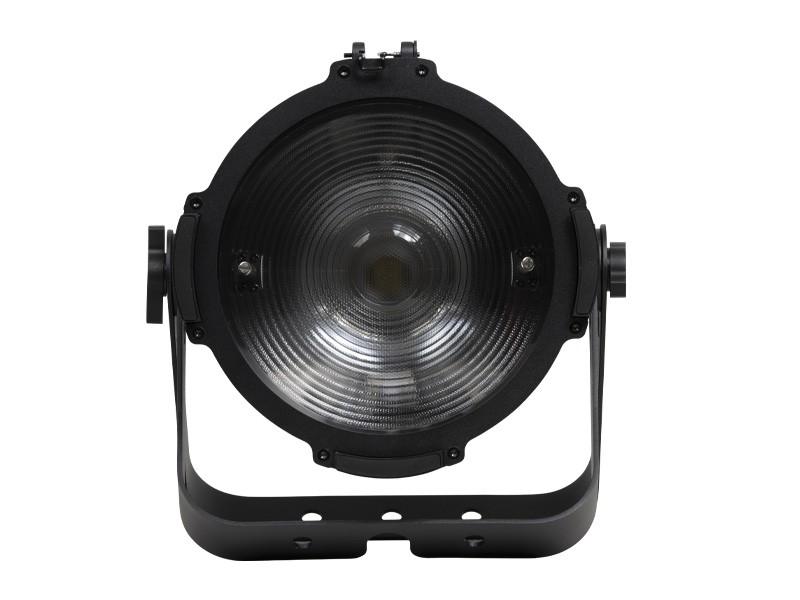

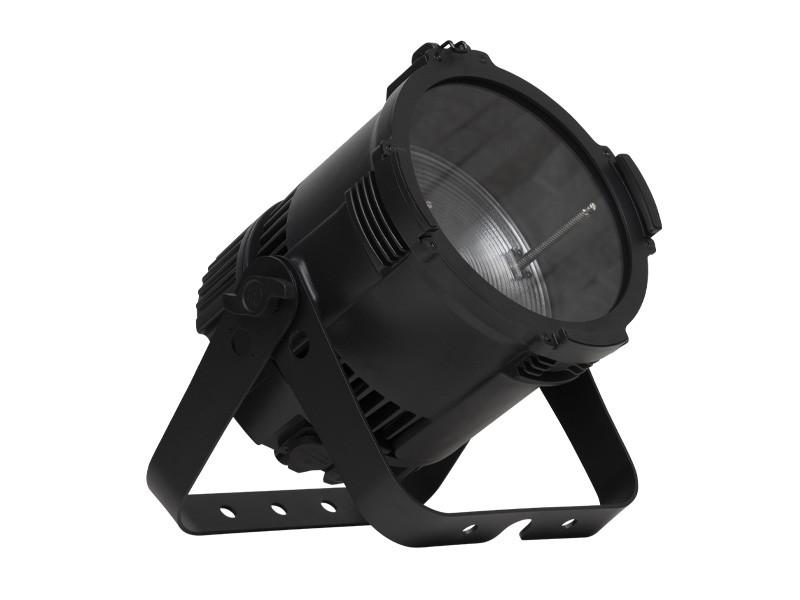

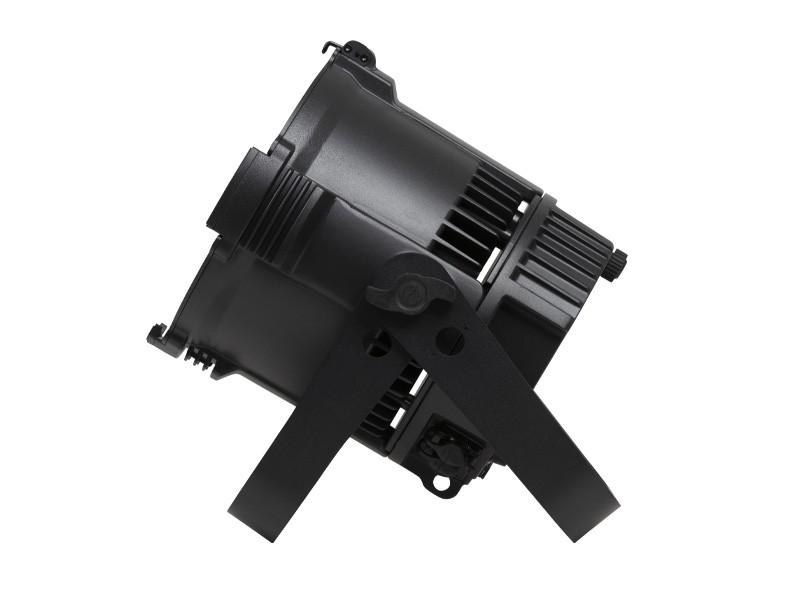

The FUSION X-PAR 12Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source COB LED with RGB and Lime as basic colors. Featuring a 120-watt RGBL light source and Fresnel optic, the fixture generates up to 2,520 lm output with a CRI 80+.
Product details
FUSION X-PAR 12Z
The FUSION X-PAR 12Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source COB LED with RGB and Lime as basic colors.
up to 2,600 lm
Output
8.5°
Min. Zoom
-10 °C / 14 °F to 40 °C / 104 °F
Temperature range, operating
245 mm / 9.65 in
Height
1 / 3
Why this product
FUSION X-PAR 12Z
The 190mm front lens provides an eye-catching light output that can be used to create powerful looks Combined with a wide zoom (8.5° to 55°), the FUSION X-PAR 12Z is a future-proof evolution of the LED PAR light fixtures.
The robust aluminum housing in IP65 design allows problem-free use indoors as well as outdoors in dust, dirt or moisture. The enclosed housing thus reduces the maintenance requirements in day-to-day use.
A filter frame and barndoors are optionally available for the device.
The FUSION X-PAR 12Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source COB LED with RGB and Lime as basic colors.
Featuring a 120-watt RGBL light source and Fresnel optic, the fixture generates up to 2,520 lm output with a CRI 80+. The 190mm front lens provides an eye-catching light output that can be used to create powerful looks
Combined with a wide zoom (8.5° to 55°), the FUSION X-PAR 12Z is a future-proof evolution of the LED PAR light fixtures.
The robust aluminum housing in IP65 design allows problem-free use indoors as well as outdoors in dust, dirt or moisture. The enclosed housing thus reduces the maintenance requirements in day-to-day use.
A filter frame and barndoors are optionally available for the device.
Light Source
- Type
- RGBL LED
- Light Source Count
- 1
- Light Source Power
- 120 W
- LED Refresh Rate
- 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz
- CRI (Ra)
- 85+
- TLCI
- 80+
Optical System
- Output
- up to 2,600 lm
- Min. Zoom
- 8.5°
- Max. Zoom
- 55°
- Zoom Ratio
- 1:7
- Output Lens Diameter
- 190 mm / 7.48 in
Effects
- Dimmer / Shutter
- 0 – 100% electronic
- Color mixing
- RGBL
- CTC (Color Temperature Control)
- 2,500 – 10,000 K
- Color Wheel
- virtual, 64 Lee Filter + 4 White Presets
- Zoom
- motorized
Control
- DMX channels
- 4 | 6 | 6 | 8 | 11 | 16
- Control Modes
- 6
- Protocol
- DMX (USITT DMX512-A)RDM (ANSI/ESTA E1.20)
- Setting and addressing
- OLED Display4 Button Menu NavigationDMXRDM
- Software Update
- DMX link
- High-Res Channels
- Dimming
- Dimming Curves
- Inv. SquarelinearS-CurveSquare
- Others
- Stand Alone 1 captured Scene
Connectors
- Signal connection
- XLR 5-PinIn/Out
- Power input
- Neutrik powerCON TRUE1In/Out
Electrical Specifications
- Power input
- 100 – 240 VAC / 50 – 60Hz
- Power supply
- auto-ranging electronic switch-mode
- Power supply cable
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ftEU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V)
- 135 W
Thermal Specifications
- Cooling
- Convection cooling
- max. surface temperature (Ta = 40°C)
- 90 °C / 194 °F
- Total heat dissipation (calculated, +/-10%)
- 460 BTU/hr
- Temperature range, operating
- -10 °C / 14 °F to 40 °C / 104 °F
Mounting Options
- Mounting
- 1 Double Bracket with three mounting holes1 M12 Thread, centered, for Drop Mount1 Safety Cable attachment point
- Location
- Indoor permanentOutdoor temporary
- min. distance to combustible materials
- 0.2 m / 8 in
- min. distance to illuminated surfaces
- 0.5 m / 18.7 in
Construction
- Housing Color
- Black
- Housing Material
- Aluminum
- Protection Rating
- IP 65
- Construction Features
- floor standing with adjustable footM12 Thread for Drop Mountinglow-ceiling mounting with bracketHolder for optional accessories (filter frame, barndoor)
Dimensions & Weight
- Height
- 245 mm / 9.65 in
- Width
- 245 mm / 9.65 in
- Length
- 245 mm / 9.65 in
- Weight
- 6.9 kg / 15.2 lbs
ManualFUSION X-PAR 12Z Quick Start Safety Manual EN Rev A ( pdf | 1.66 MB)
Download ↗
ManualFUSION X-PAR 12Z User Manual EN Rev A ( pdf | 2.03 MB)
Download ↗
DMXFUSION X-PAR 12Z DMX Channel Index EN Rev A ( pdf | 351.2 KB)
Download ↗
CADFUSION X-PAR 12Z Vectorworks Rev20230109-1 ( zip | 395.74 KB)
Download ↗
PhotometricsFUSION X-PAR 12Z Photometrics Rev 20230511-1 ( zip | 4.28 MB)
Download ↗
Fixture LibrariesFUSION X-PAR 12Z MA2 Rev20220907-1 ( zip | 23.31 KB)
Download ↗
FirmwareFUSION X-PAR 12Z Firmware V1-0-10 Rev20230508-1 ( zip | 157.58 KB)
Download ↗
Flyer / InfoFUSION X-PAR 12Z Cut Sheet EN ( pdf | 442.63 KB)
Download ↗
Flyer / InfoFUSION X-PAR 12Z Datasheet EN ( pdf | 222.93 KB)
Download ↗
