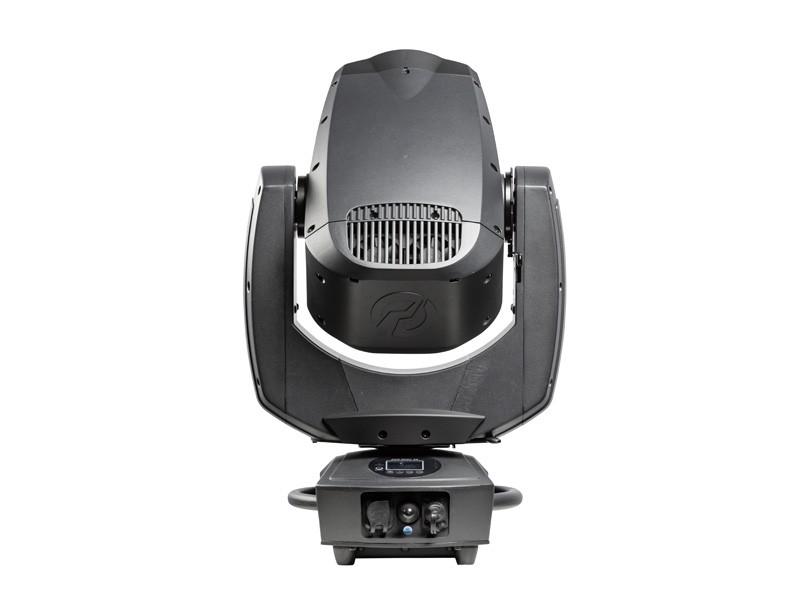

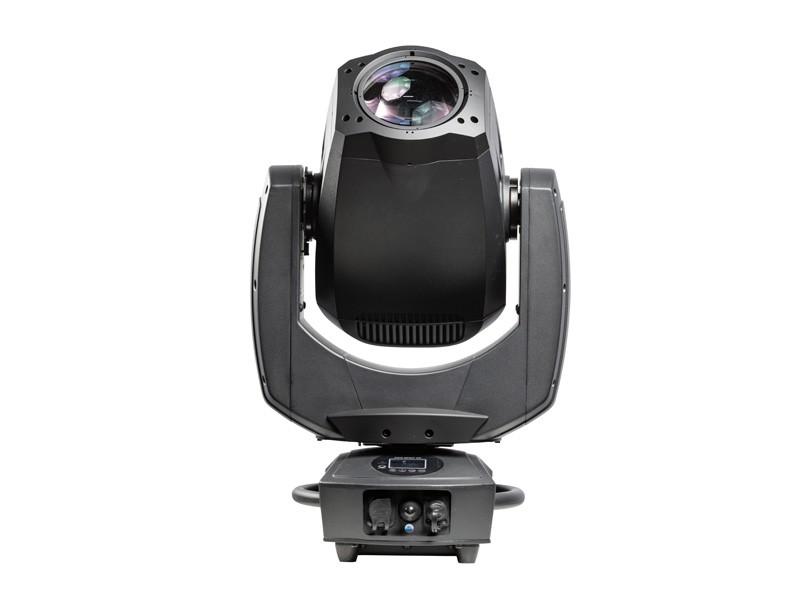

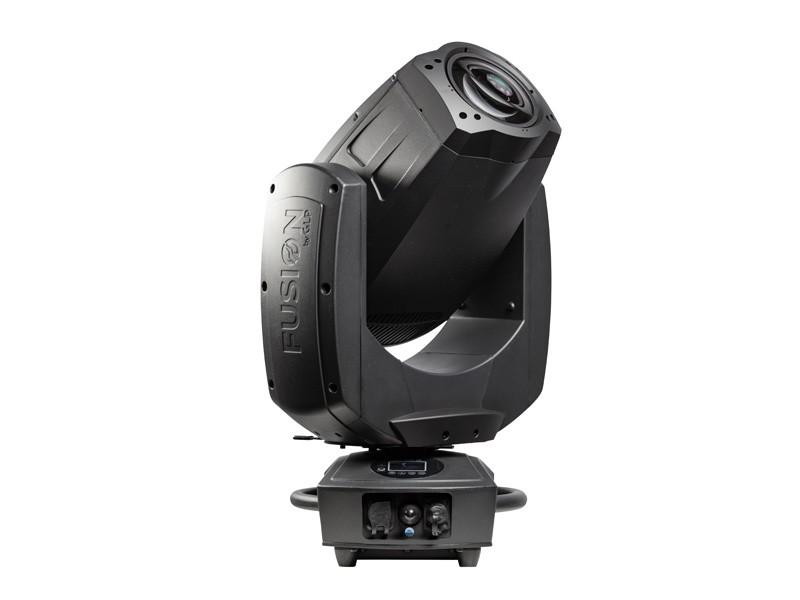

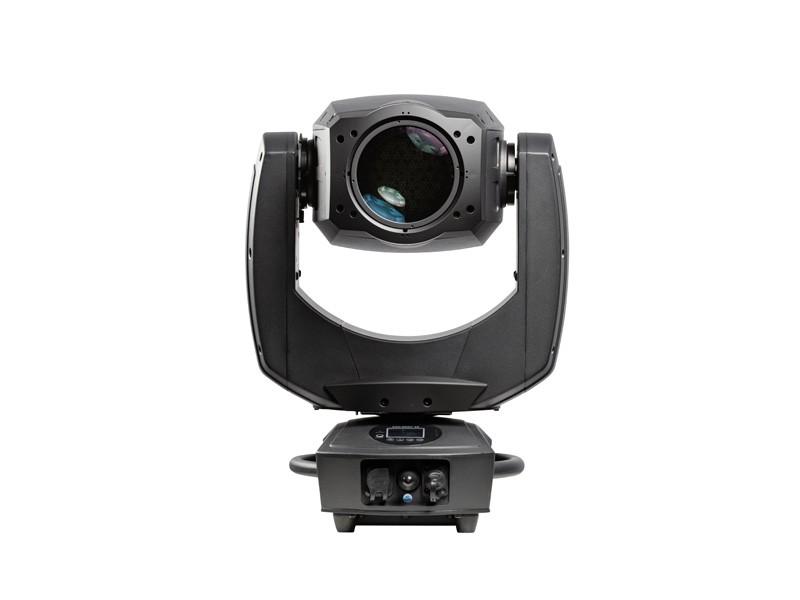

FUSION Exo Spot 30
The FUSION Exo Spot 30 from FUSION by GLP is a powerful moving head with IP65 classification and a zoom range of 7 to 30 degrees. The Exo Spot 30 uses a highly efficient 230 watt LED engine with a color temperature of 7,500 Kelvin.
In addition, there is a whole range of additional features:
- rotating Prism
- Frost Filter
- Goborad 1 with 8 fixed Gobos
- Goborad 2 with 6 rotating Gobos
- CMY Color mixing with 18 additional colors
- motorized Focus and Zoom
- electronic Shutter with variable Speed
- 16-bit Pan and Tilt
- only 25.9 kg
So versatile, the Exo Spot 30 can be operated anywhere in the world thanks to a switching power supply with automatic voltage detection.
Wireless DMX is available as an optional control. The rugged housing and its IP65 rating equip the Exo Spot 30 for the most demanding conditions in any environment.
Light Source
| Type | White Light LED-Engine |
| Light Source Count | 1 |
Optical System
| Output | 8,300 lm |
| Min. Zoom | 7° |
| Max. Zoom | 30° |
| Focus | motorized 2m – infinite |
| Output Lens Diameter | 110 mm / 4.33 in |
Effects
| Dimmer / Shutter | 0 – 100% electronic regular and random strobe and pulse effects selectable dimmer curves |
| Frost | heavy |
| Gobo Wheel 1 | 8 Gobos fixed |
| Gobo Wheel 2 | 6 Gobos rotating |
| Gobo Size | Outer Diameter: 20 mm / 0.87 in Image Diameter: 16 mm / 0.63 in |
| Color mixing | CMY color mixing variable 0 – 100 % |
| Color Wheel | indexable continuous rotation 3 fixed dichroic filters + open Cyan variable 0 – 100% |
| Color Wheel 2 | indexable continuous rotation 3 fixed dichroic filters + open Magenta variable 0 – 100% |
| Color Wheel 3 | indexable continuous rotation 3 fixed dichroic filters + open Yellow variable 0 – 100% |
| Pan | 540° |
| Tilt Movement Angle | 240°, 16 Bit Resolution |
| Tilt | 258° |
| Zoom | motorized |
| Position correction system | Position feedback |
Control
| DMX channels | 2 |
| Control Modes | HighRes |
| Control Modes | 1 |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) |
| Setting and addressing | OLED Display 4 Button Menu Navigation RDM |
| Software Update | via DMX Line |
| High-Res Channels | Dimming Tilt |
| Performance Modes | fast medium smooth |
| Dimming Curves | linear soft |
| Fan Modes | regulated high medium low off |
| Others | Stand Alone 1 captured Scene 3 Layer Pattern-FX-Engine |
Connectors
| Signal connection | XLR 5-Pin In/Out |
| Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| Power supply cable | US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft EU: 16 A, 1.5 mm², H05VV-F, 1.5 m |
| max. power (@230V) | 295 W |
Thermal Specifications
| Cooling | combined convection and forced air |
| max. surface temperature (Ta = 40°C) | 45 °C / 113 °F |
| min. ambient temperature (Ta min.) | -20 °C / -4 °F |
Mounting Options
| Mounting | 2 pair of 1/4-turn locks eyelets for safety cable |
| Orientation | any |
| Location | Outdoor temporary |
| min. distance to combustible materials | 0.5 m / 18.7 in |
Construction
| Housing Color | Black |
| Housing Material | Aluminum |
| Protection Rating | IP 65 |
| Construction Features | Pan-Tilt-Lock-System |
Dimensions & Weight
| Height | 507 mm / 20 in |
| Height (head vertical) | 605 mm / 23.82 in |
| Width (across yoke) | 380 mm / 14.96 in |
| Length | 319 mm / 12.6 in |
| Length | 368 mm / 14.5 in |
| Weight | 25.9 kg / 56.2 lbs |
