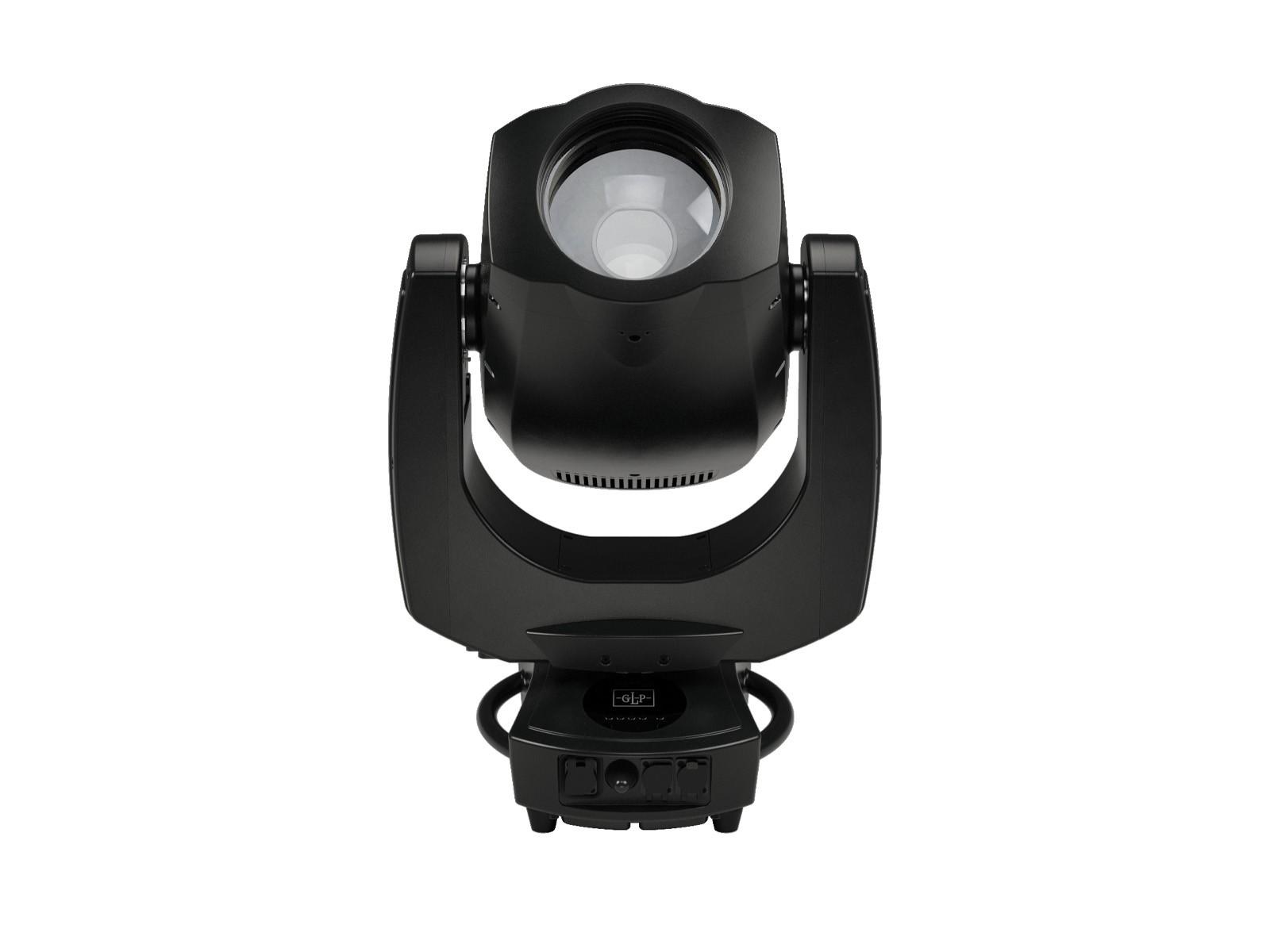

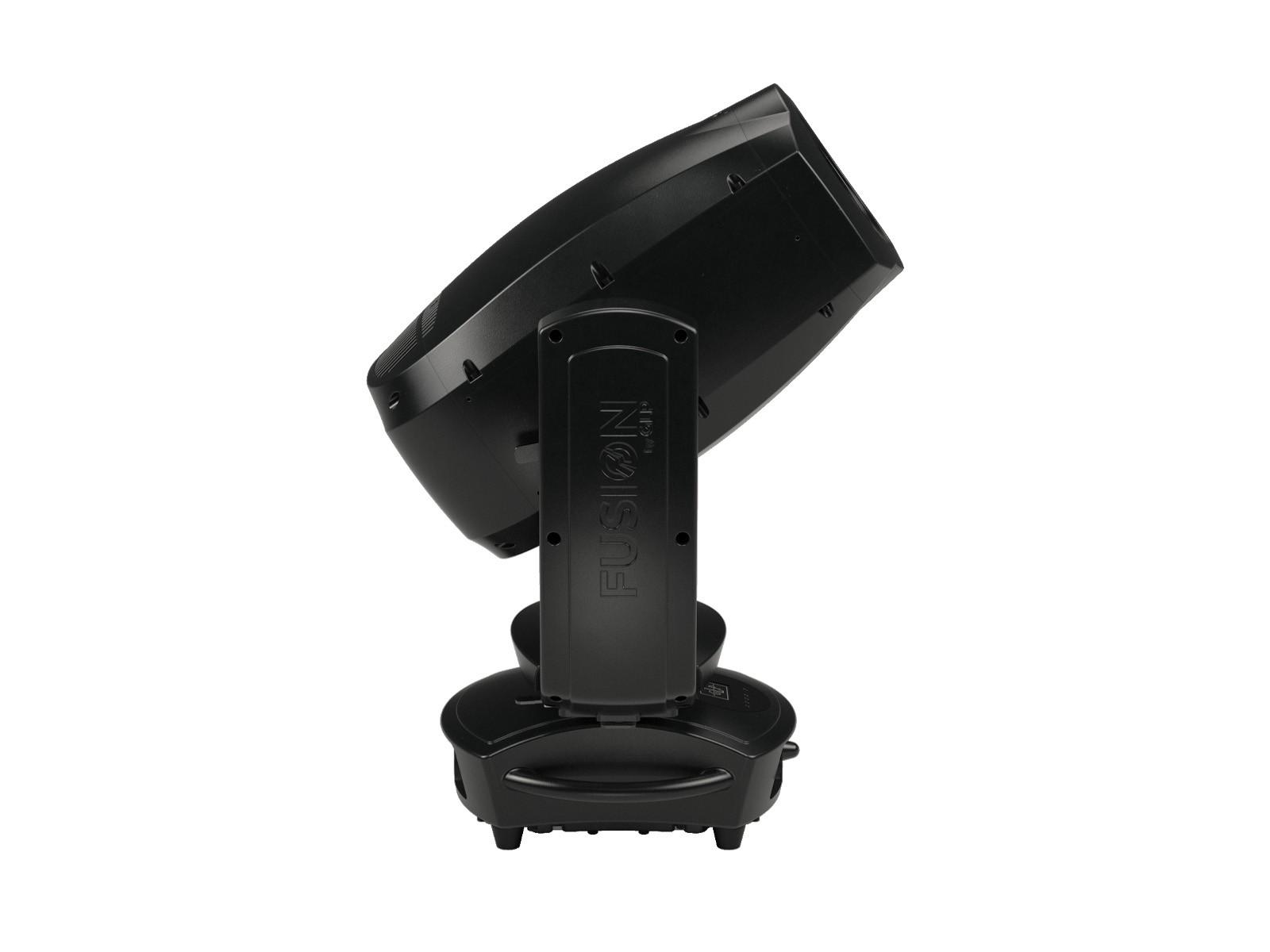

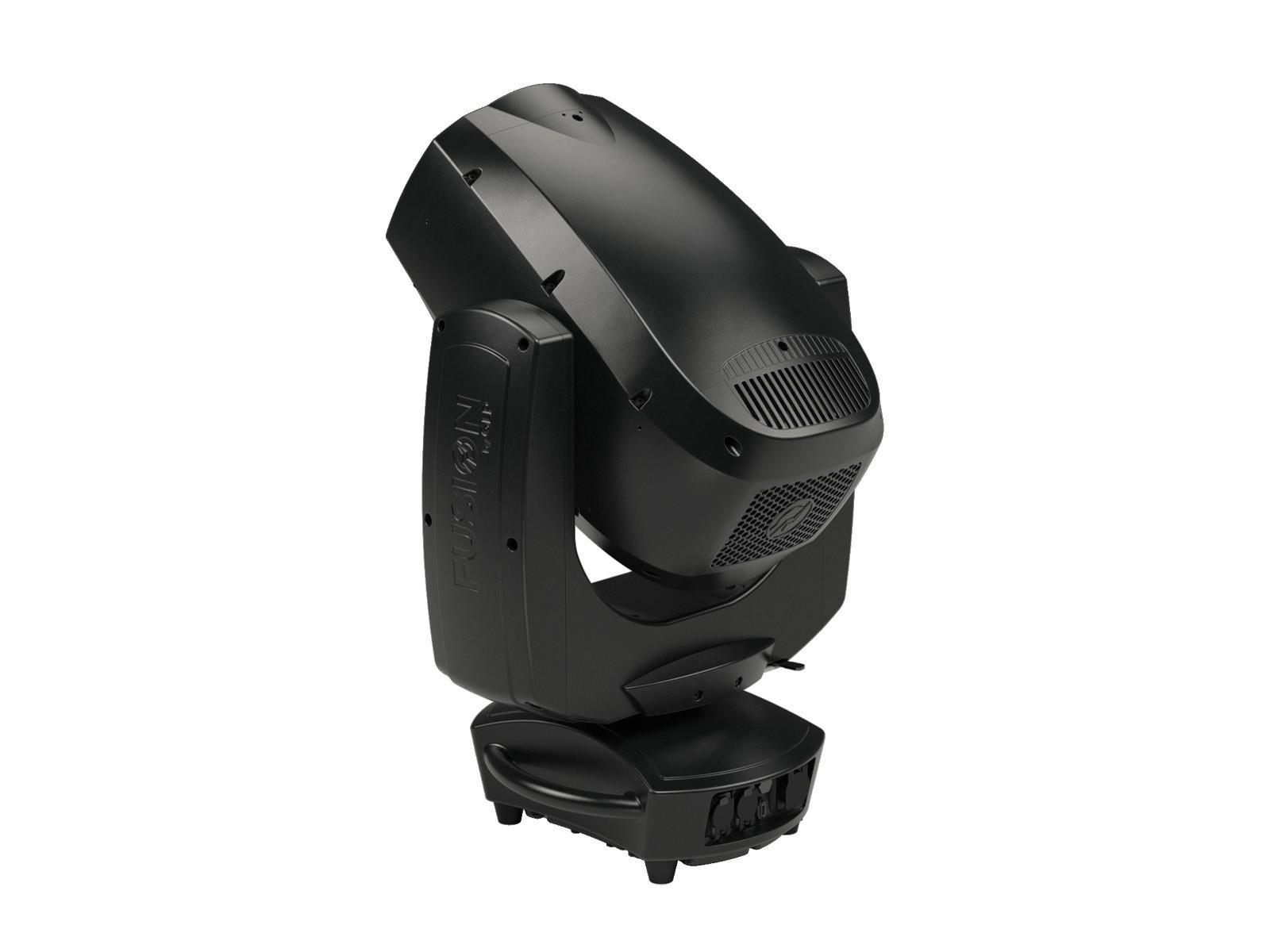

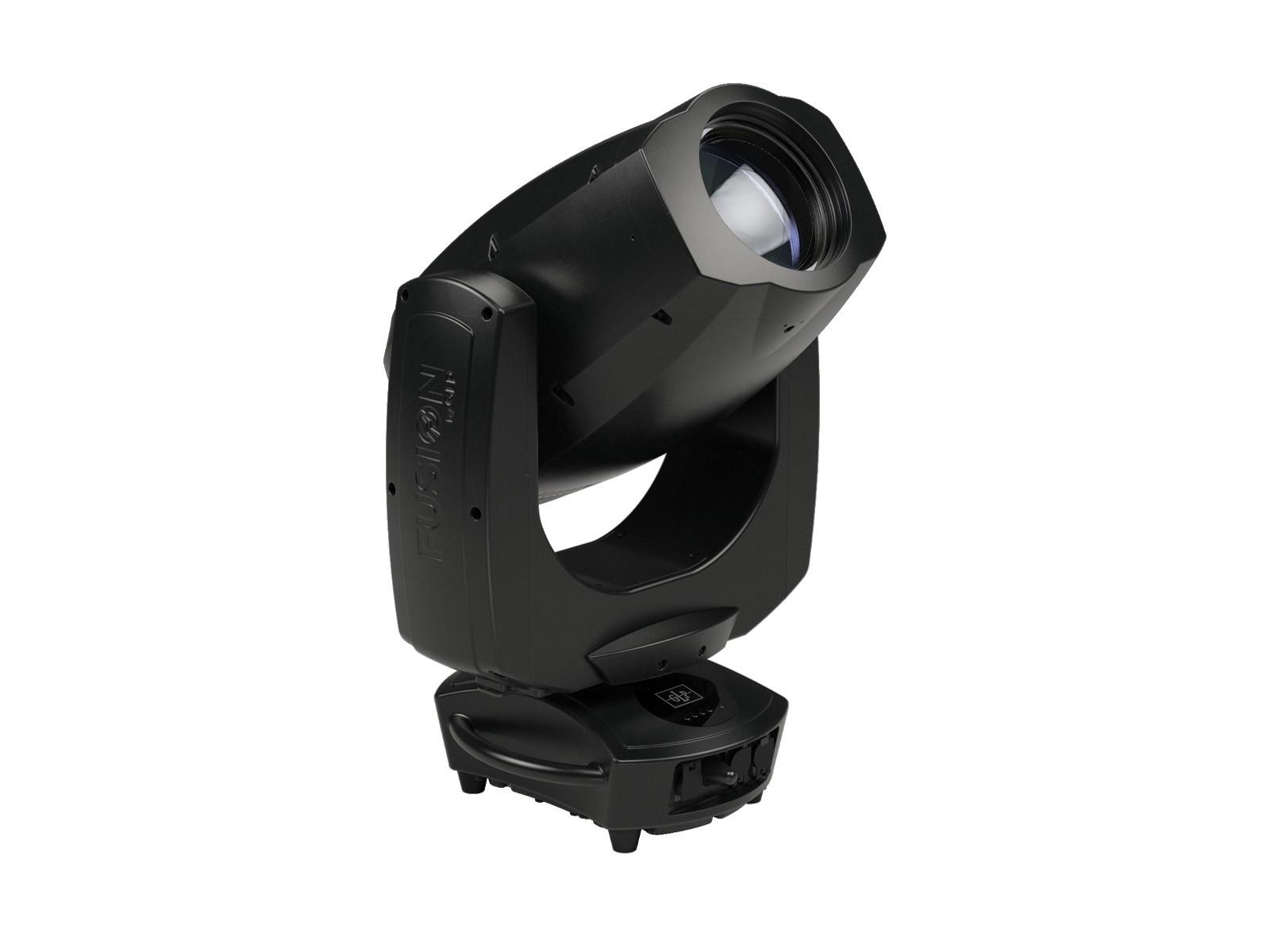

FUSION Exo Hybrid 40
The FUSION Exo Hybrid 40 is the latest family member in the well-known FUSION Exo series from GLP. With the FUSION brand, GLP offers professional products with a focus on low investment costs and a fast ROI (return on investment), making FUSION products the first choice when it comes to investment decisions with a tight budget.
Like all fixtures in the FUSION Exo series, the Exo Hybrid 40 is characterised by its high light output. Based on a 380 W white light LED, excellent optics with a 135 mm front lens and a zoom range of 3.8° to 46°, it offers plenty of light output for small to medium-sized stages as well as for outdoor applications and festivals. A comprehensive feature package for spot, beam or wash applications makes the FUSION Exo Hybrid 40 a versatile choice. This includes a CMY colour mixing system plus separate CTO, 12 fixed colours and additional 4 colour correction filter, two gobo wheels, an animation wheel, a frost system and two combinable prisms. The IP65-rated construction enables the full range of indoor and outdoor applications. Neither wind nor rain, dust, dirt, fog generator fluid residue or confetti particles are an issue to worry about.
In addition to the PowerCon True 1 In/Out and DMX 5pin In/Out, two fail-safe EtherNet ports, a LumenRadio CRMX module and the proven GLP iQ.Mesh system are already integrated for particularly flexible and universal use. With this range of features and a weight of just 25 kg, the FUSION Exo Hybrid is extremely compact and easy to set up in busy working environments.
Light Source
| Type | White Light LED |
| Light Source Count | 1 |
| Light Source Power | 380 W |
Optical System
| Output | up to 11,000 lm |
| Min. Zoom | 3.8° |
| Max. Zoom | 46° |
| Zoom Ratio | 1:12 |
Effects
| Dimmer / Shutter | 0 – 100% electronic |
| Effect Wheel | rotating (wave pattern) |
| Frost | 2-way (soft, heavy) |
| Prism |
2-way linear & circular |
| Gobo Wheel 1 | 8 rotating Gobos + open |
| Gobo Wheel 2 | 11 fixed Gobos + open |
| Color mixing | CMY color mixing |
| Color Wheel | 12 fix color filters + 4 fix CTC filters |
| Zoom | motorized |
| Animation wheel | rotating (wave pattern) |
Movement
| Pan (Degrees) | 540° |
| Tilt (Degrees) | 270° |
Control
| DMX channels | 29 |
| Control Modes | 1 |
| Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net sACN CRMX (Lumenradio) |
| Setting and addressing |
control panel with backlit graphic display 4 Button Menu Navigation DMX RDM |
| High-Res Channels |
Dimming Pan Tilt Gobo index/rotation |
| Dimming Curves |
linear soft S-Curve |
| Fan Modes | regulated high medium low |
| Fan Modes | regulated high medium low minimum |
| Others | Stand Alone 1 captured Scene |
Connectors
| Signal connection |
XLR 5-Pin etherCON In/Out |
| Power input |
Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
| Power input | 100 – 240 VAC / 50 – 60Hz |
| Power supply | auto-ranging electronic switch-mode |
| max. power (@230V) | 463 W |
Thermal Specifications
| Cooling | combined convection and forced air |
| max. ambient temperature (Ta max.) | 45 °C / 113 °F |
| min. ambient temperature (Ta min.) | -10 °C / 14 °F |
| Total heat dissipation (calculated, +/-10%) | 1,600 BTU/h |
Mounting Options
| Mounting | 2 pair of 1/4-turn locks |
| Orientation | any |
| Location |
Indoor permanent Outdoor temporary |
Construction
| Housing Color | Black |
| Housing Material | high-impact flame-retardand thermoplastic Aluminum Magnesium steel metal plates |
| Protection Rating | IP 65 |
| Construction Features |
base handles Pan-Tilt-Lock-System |
Dimensions & Weight
| Height | 680 mm / 26.77 in |
| Height (head vertical) | 569 mm / 22.4 in |
| Width (across yoke) | 429 mm / 16.88 in |
| Length | 314 mm / 12.36 in |
| Weight | 25 kg / 55.11 lbs |
