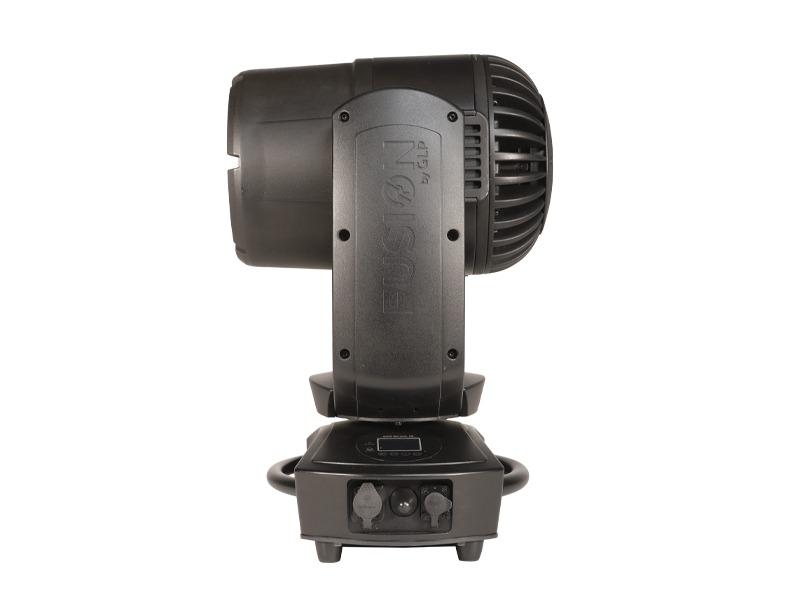

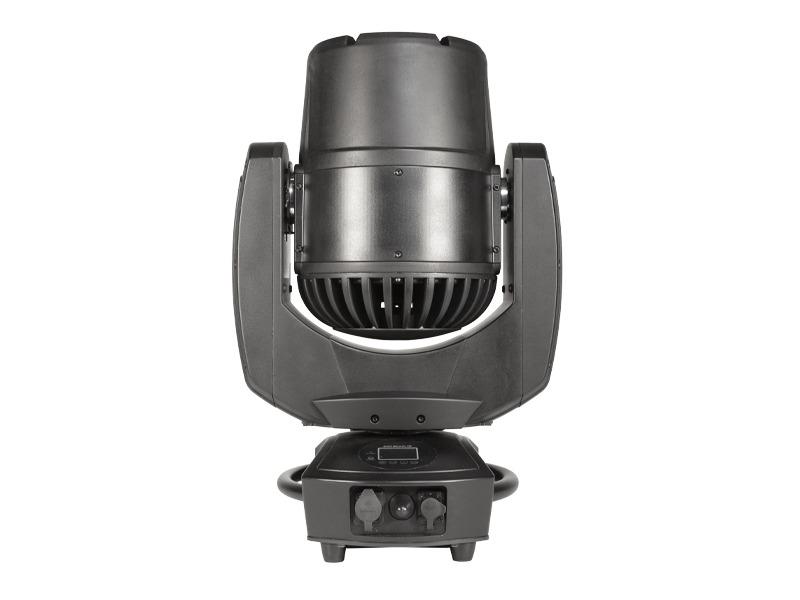

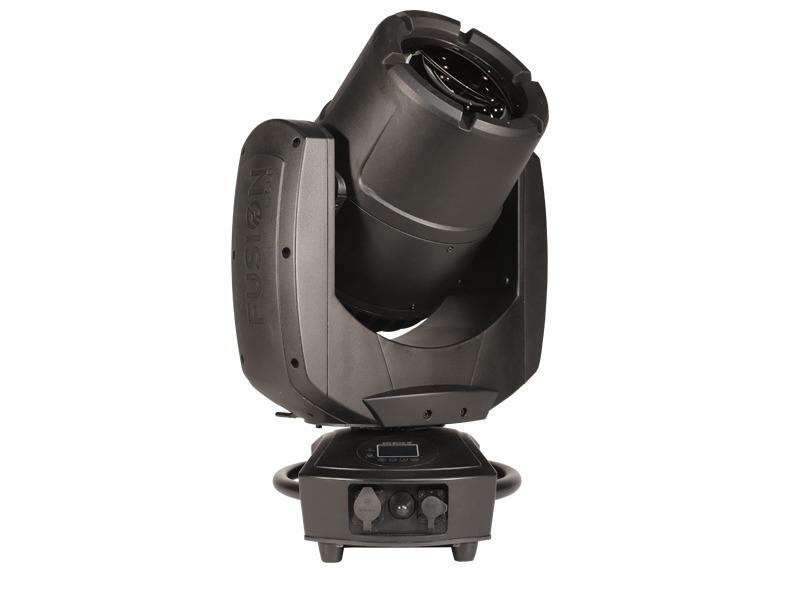

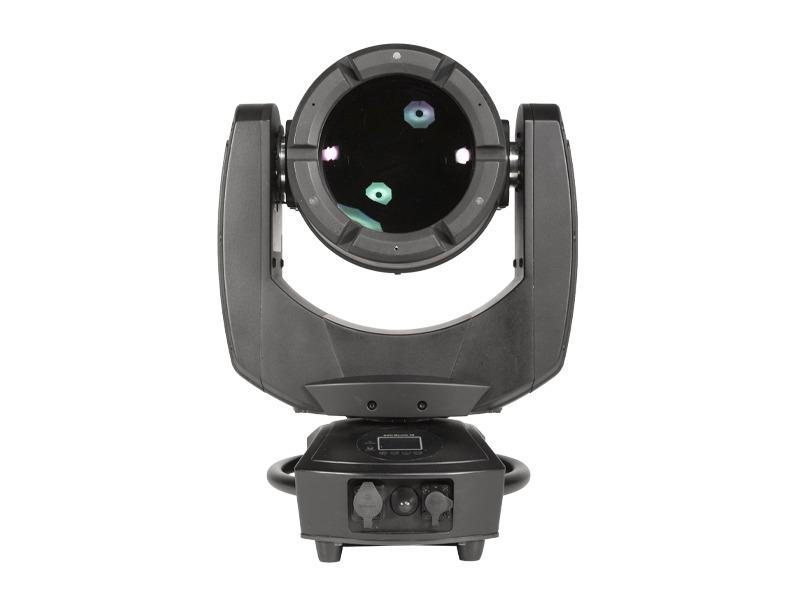

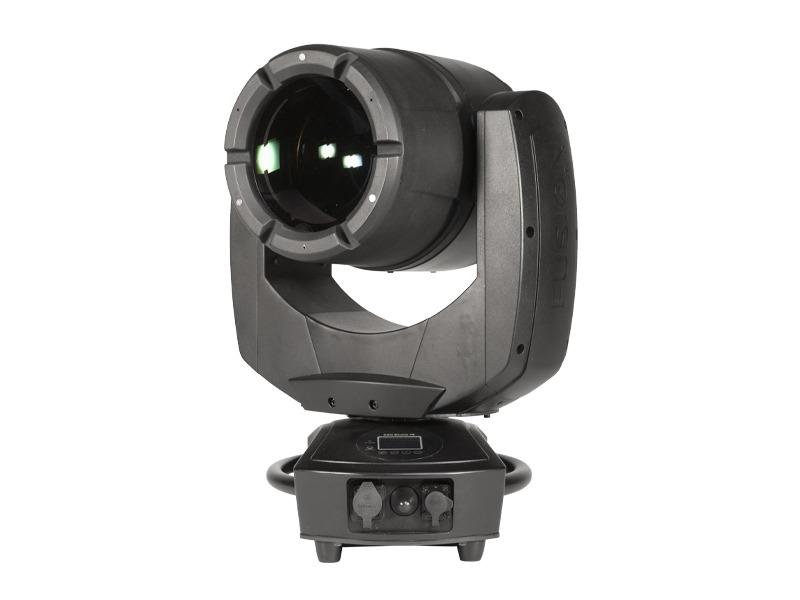

FUSION Exo Beam 10
FUSION by GLP’s Exo Beam 10 is a powerful IP65 rated Moving Head with a beam angle of just 1°, generating a sharp beam that can be seen for long distances.
The Exo Beam 10 features a single, powerful and highly efficient 90 W, 7,500 K white light LED engine.
With its 160 mm front lens, the fixture features an incredible 1° beam angle and a field angle of just 1° along with incredibly fast pan and tilt movements, combining to give incredible mid air effects – either indoor, or out.
The powerful beam fixture comes equipped with a range of additional effects, including two independent rotating prisms that can be used individually, or combined together for stunning aerial effects; a hybrid gobo wheel with both static and rotating gobos; a color wheel with 14 colors; as well as motorized focus, variable speed shutter and 16 bit pan and tilt movement.
The versatile fixture can operate anywhere in the world, and in any orientation with wireless DMX control available as an optional extra. With a robust die cast housing which combined with the IP65 rating make the Exo Beam 10 ready for even the worst of outdoor conditions.
Light Source
Type | White Light LED-Engine |
Light Source Count | 1 |
Light Source Power | 90 W |
Light Source Lifetime | 20,000 h |
Optical System
Output | 2,300 lm |
Beam angle | fixed, 1° |
Focus | motorized 2m – infinite |
Output Lens Diameter | 160 mm / 6.3 in |
Effects
Dimmer / Shutter | 0 – 100% electronic regular and random strobe and pulse effects |
Prism | 6-way linear rotating |
Prisma 2 | 8-way rotating |
Gobo Wheel 1 | 7 rotating + 7 fixed Gobos + open rotatable and indexable |
Color Wheel | 14 dichroic color filters + open |
Pan | 540° |
Tilt | 239° |
Control
DMX channels | 15 |
Control Modes | 1 |
Protocol | DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) |
Display | self charging buffer battery OLED display with 4 buttons |
Wireless | Lumenradio CRMX DMX/RDM (optional) |
Software Update | DMX link |
Dimming Curves | linear soft |
Fan Modes | regulated high medium low |
Connectors
Signal connection | XLR 5-Pin In/Out |
Power input | Neutrik powerCON TRUE1 In/Out |
Electrical Specifications
Power input | 100 – 240 VAC / 50 – 60Hz |
Power supply | auto-ranging electronic switch-mode |
Fuse | T5A 250 V |
max. power (@230V) | 185 W, 0.8 A |
Thermal Specifications
Cooling | temperature controlled, overheating protection |
max. ambient temperature (Ta max.) | 45°C / 113°F |
min. ambient temperature (Ta min.) | -20°C / -4°F |
Total heat dissipation (calculated, +/-10%) | 630 BTU/h |
Mounting Options
Mounting | 2 pair of 1/4-turn locks Rubber feet eyelets for safety cable |
Orientation | any |
Location | Outdoor temporary |
min. distance to combustible materials | 0.5 m / 18.7 in |
Construction
Housing Color | Black |
Housing Material | Aluminum |
Protection Rating | IP 65 |
Construction Features | Pan-Tilt-Lock-System |
Dimensions & Weight
Height (head vertical) | 569 mm / 22.4 in |
Width (across yoke) | 380 mm / 14.96 in |
Length | 279 mm / 11 in |
Weight | 25.5 kg / 56.22 lbs |
