FUSION Creos
The GLP Creos gives flexibility in creative design
The new Creos is the new LED Wash Light in the Series by GLP. With the brand, GLP offers professional products with a focus on low investment costs and a quick ROI (Return Of Investment). This makes products the first choice when it comes to purchasing decisions with a limited project budget.

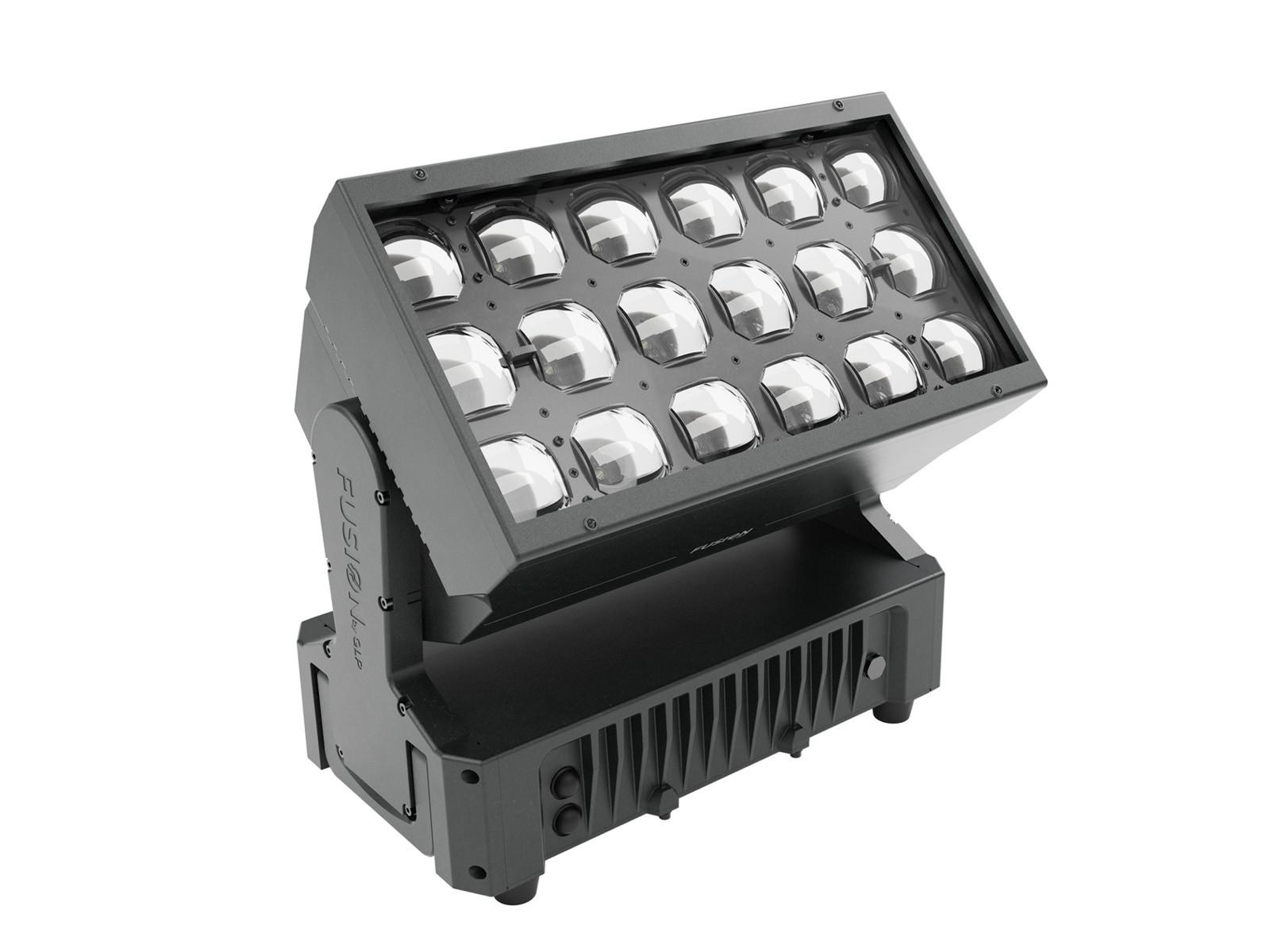

The GLP Creos is a LED Wash Light with 18 x 40W RGBL LEDs placed in three lines with 6 pixels each. The motorized 1:12 zoom offers a very punchy 4.3° beam with up to 673 kcd. Fade to wide the output offers up to 7,600 lm Total Output and a cutoff angle of 52°.

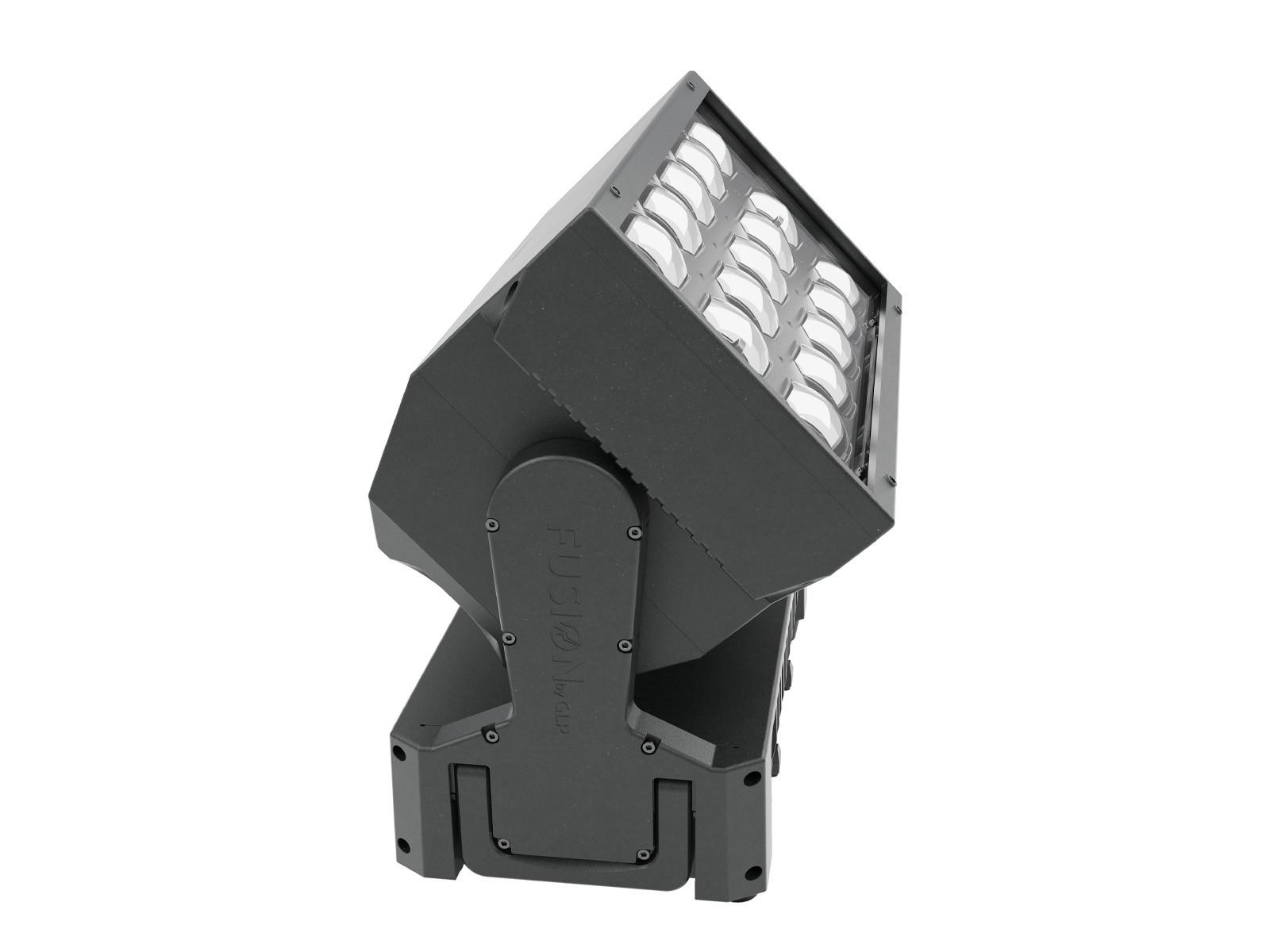

The motorized head allows a tilt movement of 240°. A special highlight of the GLP Creos is the stackable construction, which ensures a uniform and homogeneous pixel pitch for multiple devices. This means that the three rows of LEDs can be expanded infinitely by lining up several devices together. This in turn makes it possible to build gigantic LED bars and correspondingly impressive light curtains. The IP65 rated construction allows the full range of indoor and outdoor use. This means that not only wind and rain are no problem, but the fixture is also protected against dust, dirt, fog fluid and confetti particles.

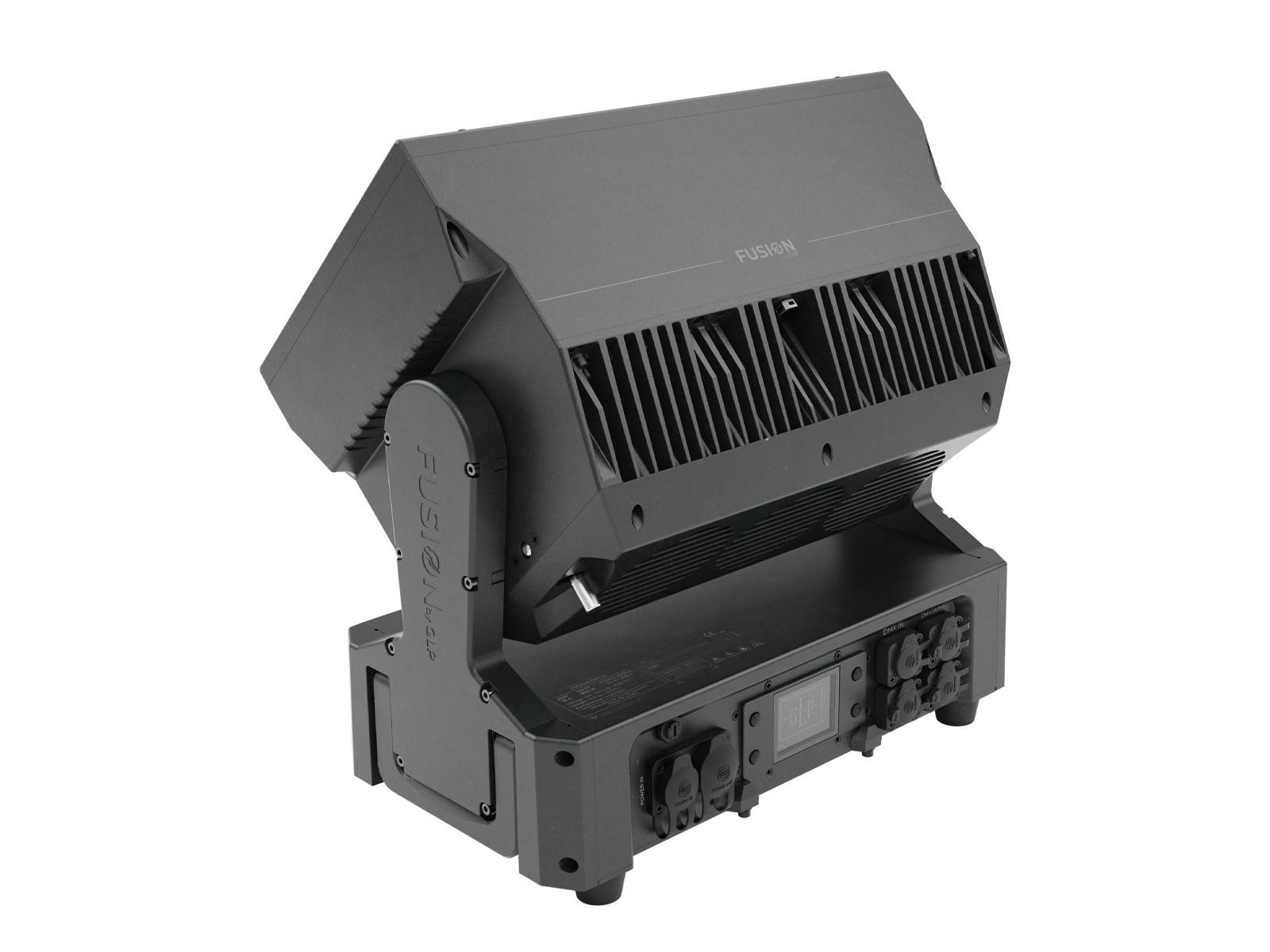

For particularly flexible and universal use, in addition to the PowerCon True 1 In/Out and DMX 5pin In/Out, two failsafe EtherNet ports, a LumenRadio CRMX module and the proven GLP iQ.Mesh system are already integrated. At below 20 kg, the fixture is compact with this scope of performance and always ready for everyday use.
Light Source
Type | RGBL LED |
Light Source Count | 18 |
Light Source Power | 18 x 40 W |
Light Source Lifetime | 20,000 h |
LED Refresh Rate | Optimal, High 1, High 2, Max |
TLCI | 6,500 K: 77 |
TM-30-15 | 6,500 K: 104 / 80 |
Optical System
Output | bis zu 7,600 lm |
Peak Luminous Intensity | 673 kcd |
Min. Zoom | 4.3° |
Max. Zoom | 52° |
Zoom Ratio | 1:12 |
Effects
Dimmer | 0 – 100%; 16 bit |
Color mixing |
RGB RGBL x;y |
CTC (Color Temperature Control) | 2,500 – 10,000 K |
Magenta/Green-Shift | yes |
Tungsten Simulation | 8x linked to fix CCT | 8x relative to Colormix |
Pattern Effects | 50 dynamic pattern macros with special effects |
Tilt Movement Angle | 190°, 16 bit |
Control
DMX channels | 20 | 33 | 39 | 48 | 84 | 63 | 81 |
Control Modes | 7 |
Protocol |
DMX (USITT DMX512-A) RDM (ANSI/ESTA E1.20) Art-Net CRMX (Lumenradio) iQ.Mesh |
Setting and addressing |
control panel with backlit graphic display 4 Button Menu Navigation DMX RDM |
Software Update |
DMX link via DProg iQ.Mesh via Service App GLP iQ.Tool |
High-Res Channels |
Dimming Tilt |
Performance Modes |
fast normal (balanced) smooth |
Dimming Curves |
linear soft |
Fan Modes |
regulated high medium low |
Others |
Stand Alone 1 captured Scene 2 Layer Pattern-FX-Engine 59 Static and 50 Dynamic patterns |
Connectors
Signal connection |
REAM XLR 5-Pin In/Out REAM etherCON In/Out (failsafe) |
Power input |
REAM powerCON True1 In/Out |
Electrical Specifications
Power input | 100 – 240 VAC / 50 – 60Hz |
Power supply | auto-ranging electronic switch-mode |
max. power (@230V) | 800 W |
Thermal Specifications
Cooling | combined convection and forced air |
max. ambient temperature (Ta max.) | 40 °C / 104 °F |
min. ambient temperature (Ta min.) | -10 °C / 14 °F |
Total heat dissipation (calculated, +/-10%) | 2.750 BTU/hr |
Mounting Options
Mounting |
2 pair of 1/4-turn locks eyelets for safety cable |
Orientation | any |
Location |
Indoor permanent Outdoor temporary |
Construction
Housing Color | Black |
Housing Material | Aluminum |
Protection Rating | IP 65 |
Construction Features |
base handles Tilt-Lock-System |
Dimensions & Weight
Height | 375 mm / 14.76 in |
Width | 388 mm / 15.27 in |
Length | 218 mm / 8.58 in |
Weight | 20.3 kg / 44.75 lbs |
